30 kVA Single-Phase to Three-Phase Power Converter

R&S 30 kVA Isolation-Type Power Converter — Single-Phase to Three-Phase 220V

⚙️ Industrial Three-Phase Power from Single-Phase Supply

The R&S 30 kVA Isolation-Type Power Converter is engineered to convert standard single-phase 220V input into stable, balanced three-phase 220V + Neutral + PE power for heavy-duty industrial machinery. Designed for fabrication shops without access to utility three-phase service, this system delivers clean, isolated, low-harmonic power to protect sensitive electronics while enabling full industrial operation. Built inside a heavy-duty steel enclosure with integrated cooling ventilation and front-access monitoring controls, this converter is plug-and-run ready for demanding shop environments. US STOCK.

📐 Power Conversion & Performance

• Rated Output Power: 30 kVA (up to 30 kW usable equipment load)

• Input Voltage: Single-phase 220V

• Output Voltage: Three-phase 220V + Neutral + PE

• Output Configuration: 3-Phase, 4-Wire + PE

• Frequency: 50/60 Hz

• Voltage Regulation: ±3–5%

• Designed for continuous 24/7 industrial operation

⚡ Power & Electrical

• Power Requirement: Single-phase 220V input

• Required Breaker Size: 150 AMPS minimum

• Estimated Full-Load Draw: ~136 AMPS at 220V

• Input Terminals: L1 + L2 + PE

• Output Terminals: L1, L2, L3, N, PE

🧠 Performance & Protection

• Transformer Type: Isolation-type industrial transformer

• Harmonic Filtering: Built-in isolation reduces electrical noise and line interference

• Electrical Protection: Stabilizes voltage and protects CNC, servo, and laser electronics

• Duty Cycle: Continuous-duty rated for fabrication environments

• Noise Level: Low operating hum (<50 dB typical)

🧊 Cooling & Ventilation

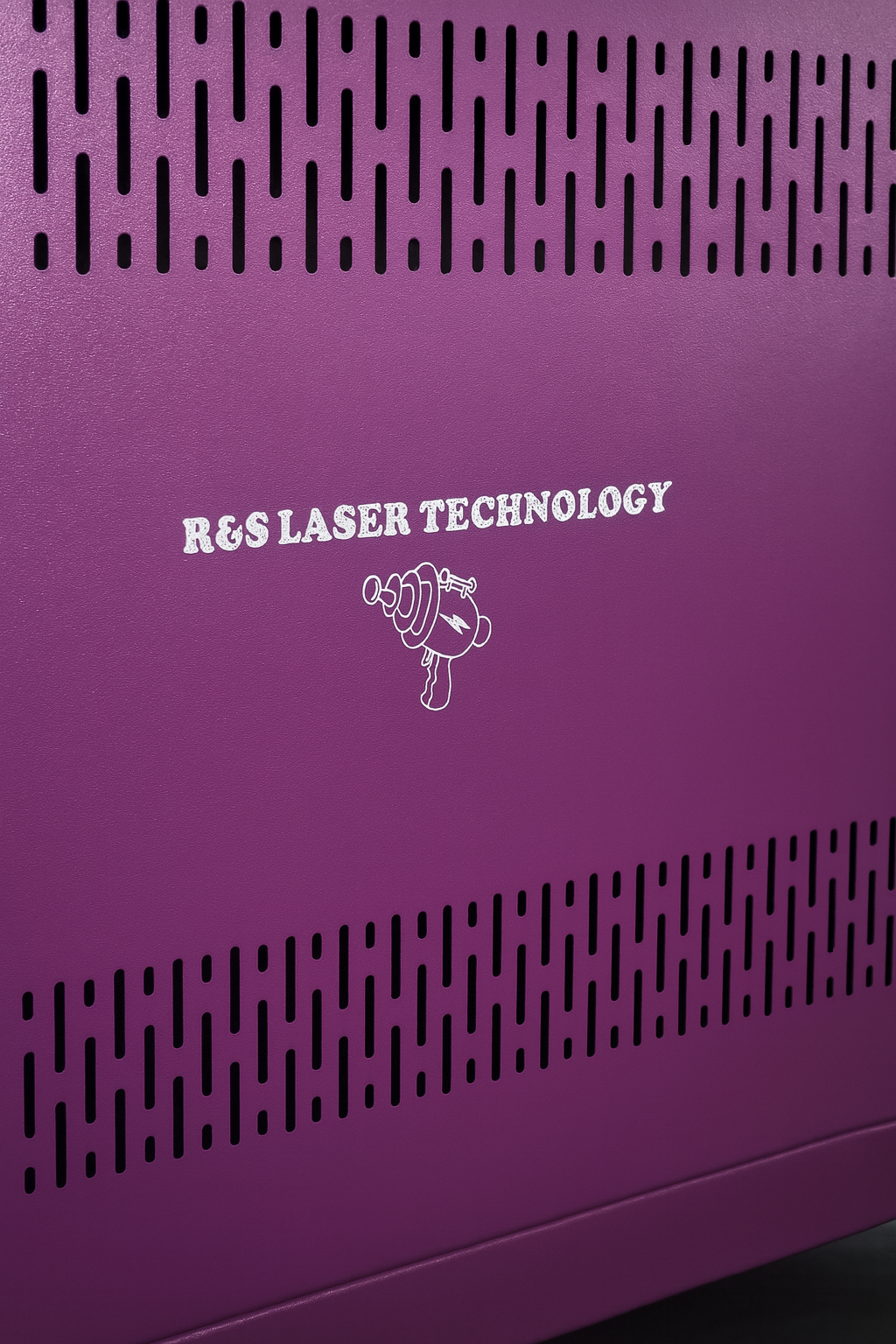

• Cooling Method: Natural air-cooled enclosure with multi-slot ventilation

• Designed for sustained full-load operation

• Installation Clearance: Minimum 12 inches on vented sides

🏗️ Build Quality & Safety

• Enclosure: Heavy-gauge powder-coated steel cabinet

• Mobility: Integrated caster wheels for easy shop-floor positioning

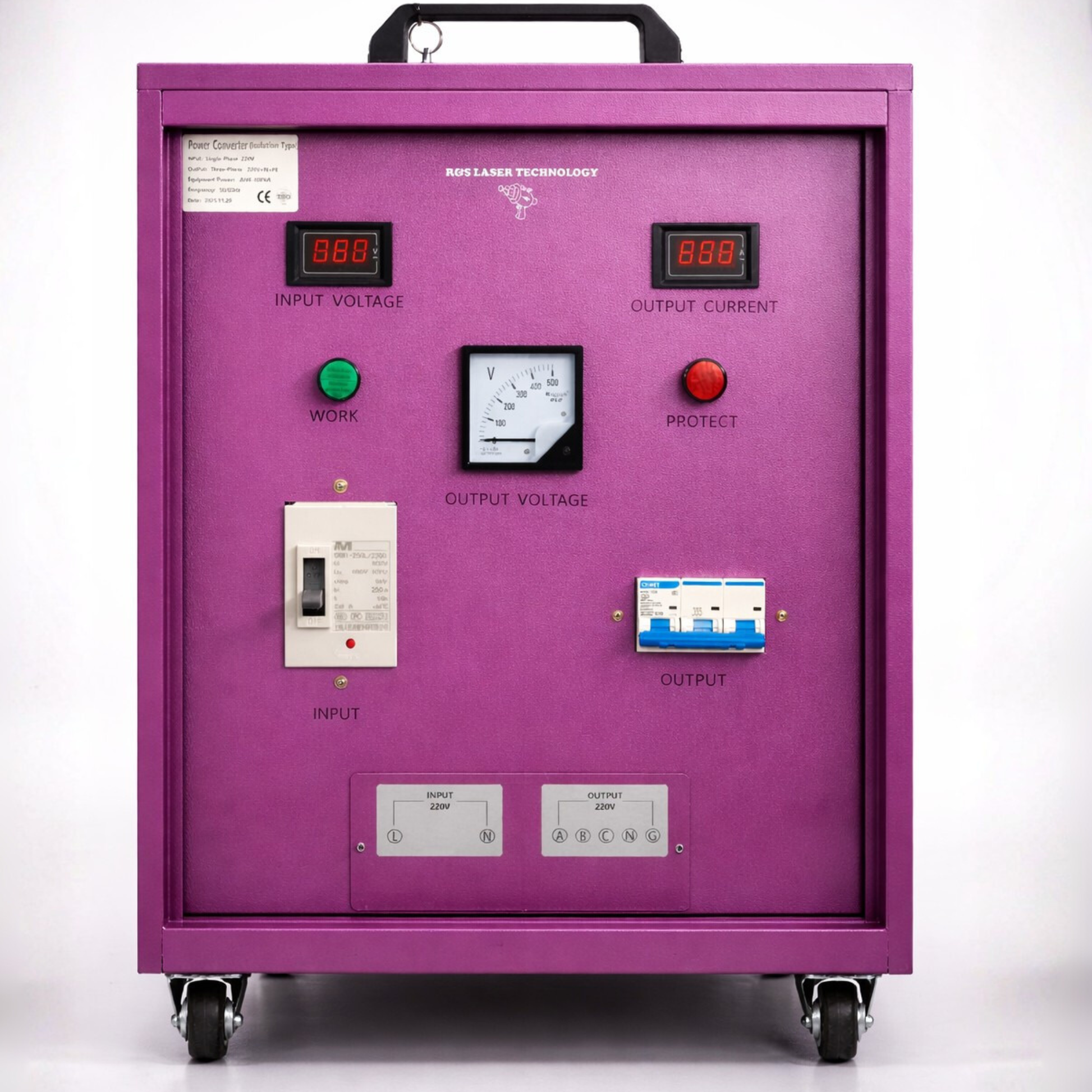

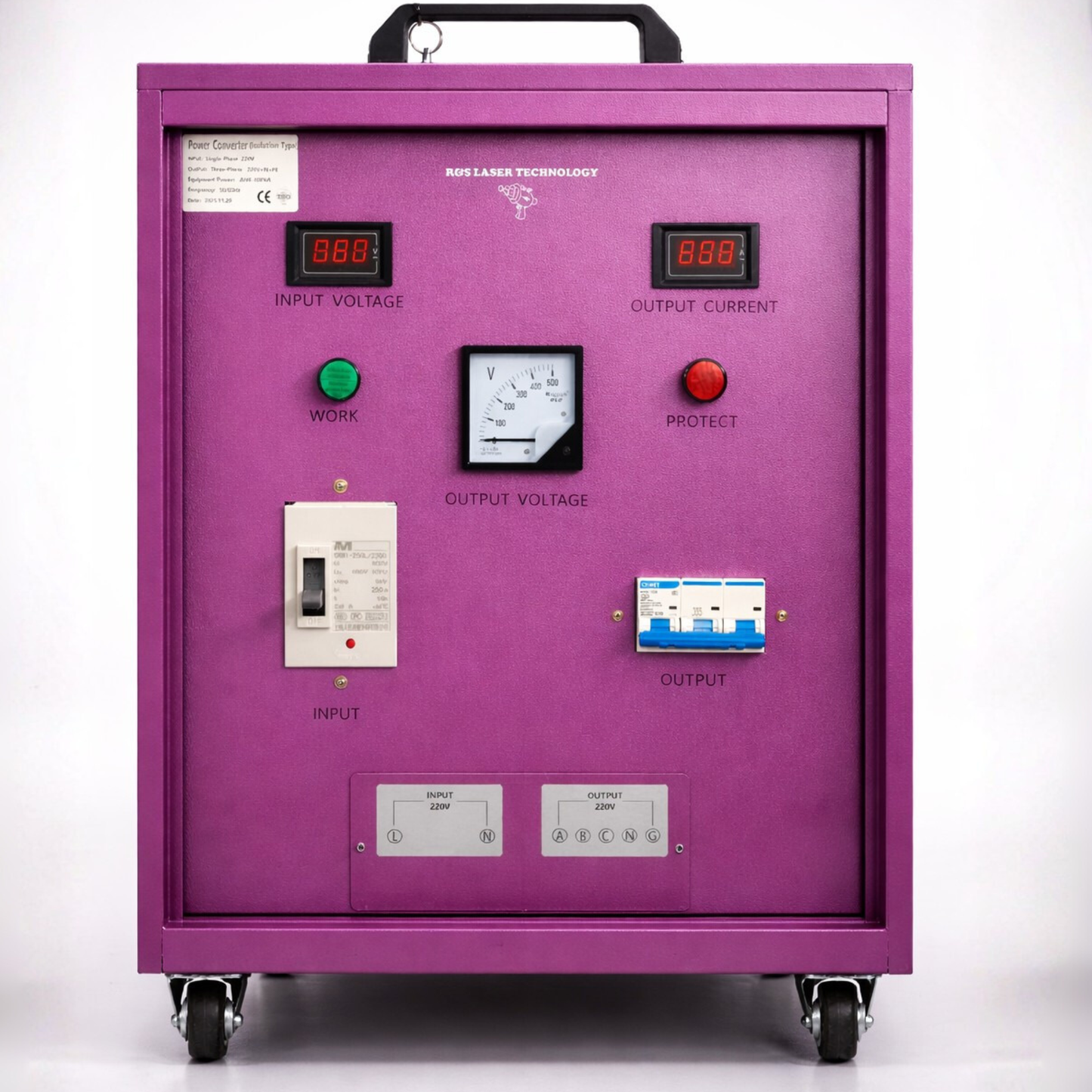

• Front Panel Features:

– Output voltage display

– Output current display

– Work/protect status indicators

– Emergency breaker

• Access: Locking front service door

• Footprint: Compact, shop-friendly design

🧰 Applications

• Fiber laser cutting machines (2000W–6000W)

• CNC press brakes (servo and hydraulic)

• Tube lasers

• Industrial air compressors

• Refrigerated chillers

• Automation and servo-driven systems

• Pumps, blowers, and induction motors

🏆 Why Choose R&S Power Systems

• Enables industrial machinery without utility three-phase service

• Clean, isolated power for sensitive CNC equipment

• Designed specifically for laser and fabrication shops

• US stock availability for faster deployment

• Reliable, service-friendly industrial design

🚚 Delivery & Warranty

• Delivery Time: 10–14 days

• Warranty: 1-year parts warranty
