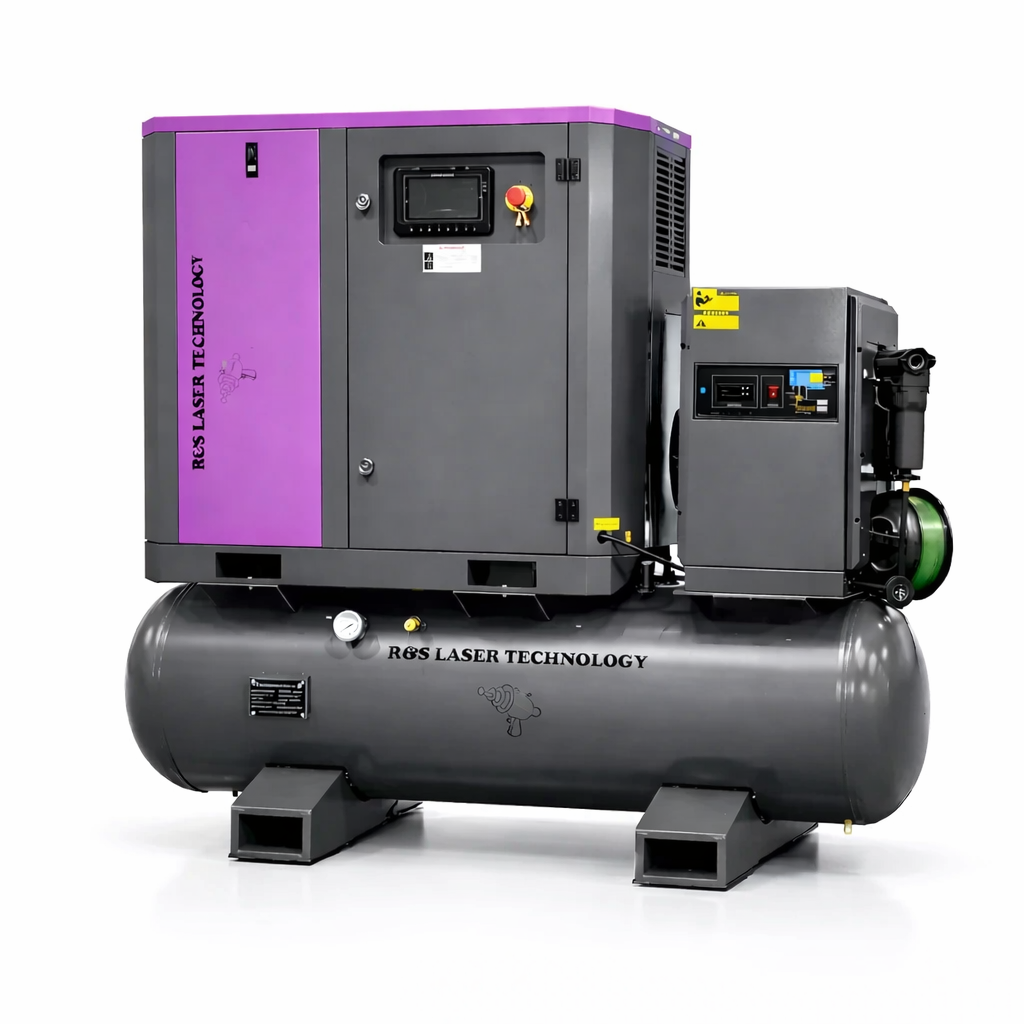

16 Bar Single Phase 11KW Screw Compressor

RS 16-Bar Air Compressor — Single-Phase High-Pressure Industrial Compressor (220V)

⚙️ High-Pressure Air for Laser & Fabrication Without 3-Phase Power

The RS 16-Bar Single-Phase Air Compressor is engineered for laser cutting, welding, and industrial applications that require clean, consistent high-pressure air with limited power infrastructure. Operating on standard single-phase 220V, this unit delivers a true 16 bar (232 PSI) of working pressure, making it ideal for small to mid-size shops running fiber laser systems without access to 3-phase power. With a robust motor, built-in air cooling, and low-noise operation, this compressor is optimized for demanding fabrication environments where reliability and airflow consistency are critical.

📐 Performance & Capacity

• Operating Pressure: 16 bar (232 PSI)

• Max Flow Rate: ~300–450 L/min (configuration dependent)

• Applications: Fiber laser cutting, welding, industrial air tools

⚡ Power & Electrical

• Power Supply: Single-phase 220V

• Amperage: 70 AMPS

• Motor Power: ~11 kW (model dependent)

🧠 Design & Operation

• Operation: Plug-and-play installation (no 3-phase required)

• Noise Level: ~65–72 dB

• Vibration: Low-vibration, quiet industrial operation

• Cooling Method: Integrated air-cooled system for extended runtime

🏗️ Build Quality

• Tank Capacity: 60L–120L (varies by configuration)

• Construction: Fully enclosed cabinet with accessible service panels

• Footprint: Compact, low-profile tank design

• Dimensions: Approx. 35” × 72” × 56”

• Weight: Approx. 1000 lbs

• Design Origin: USA designed / globally assembled

🧰 Best For

• Fiber laser cutting systems

• Laser welding

• Fabrication and metal shops

• Shops without 3-phase electrical service

• High-pressure air applications requiring clean, stable output

🚚 Delivery & Warranty

• Delivery Time: 40–45 days

• Warranty: 1-year warranty
