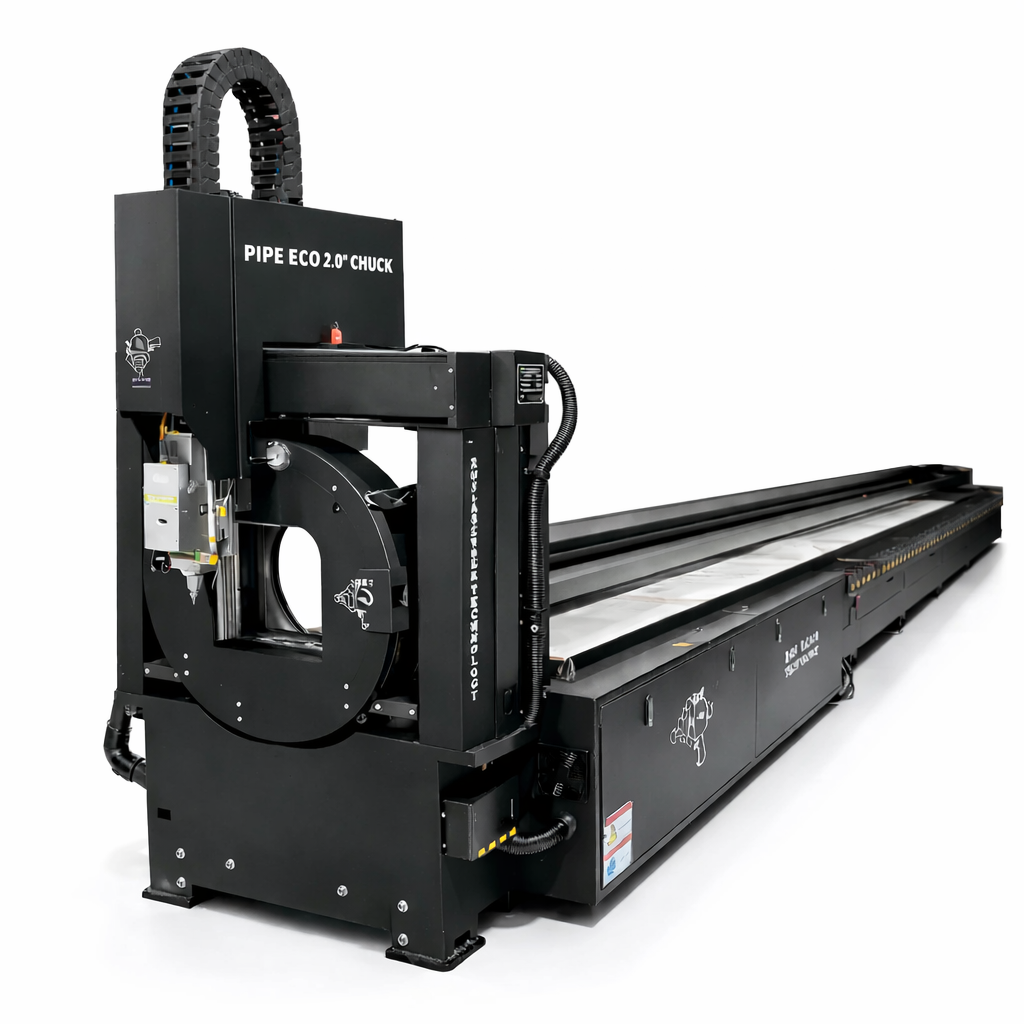

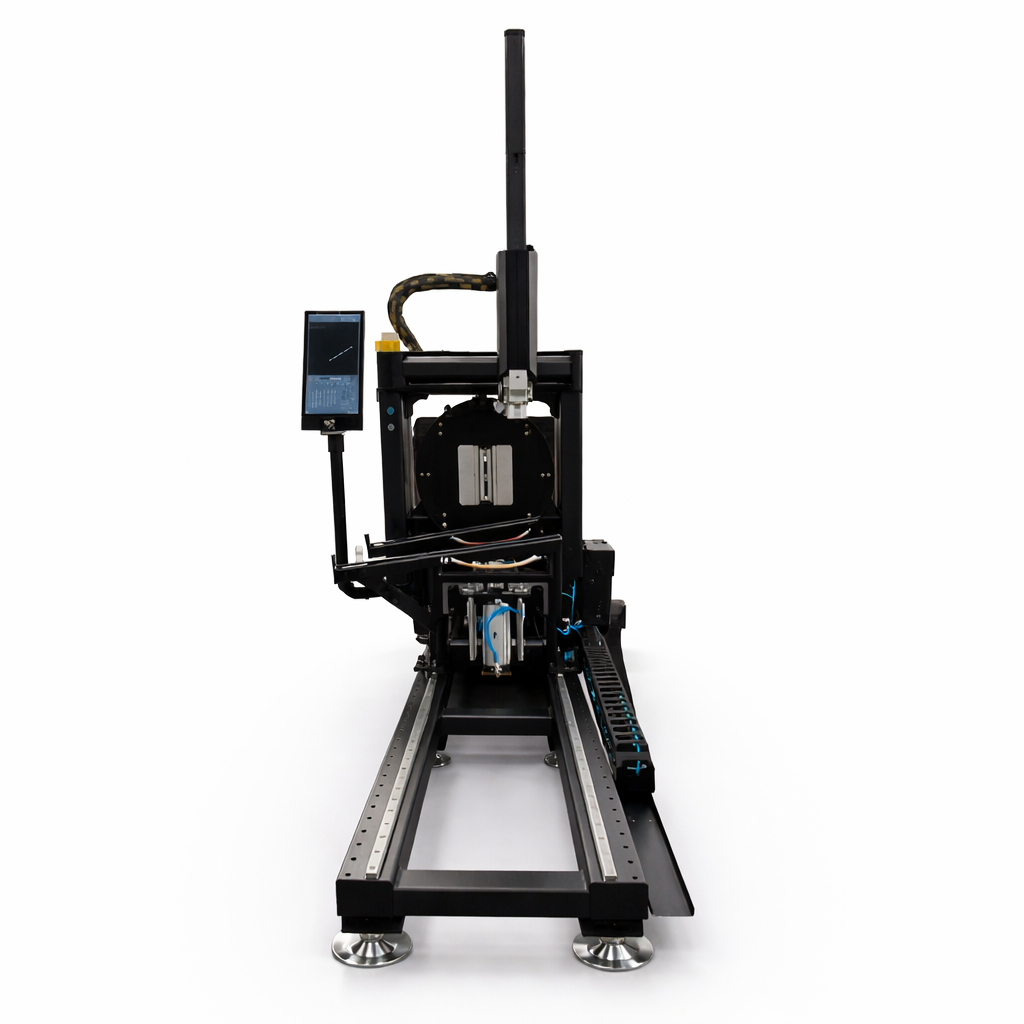

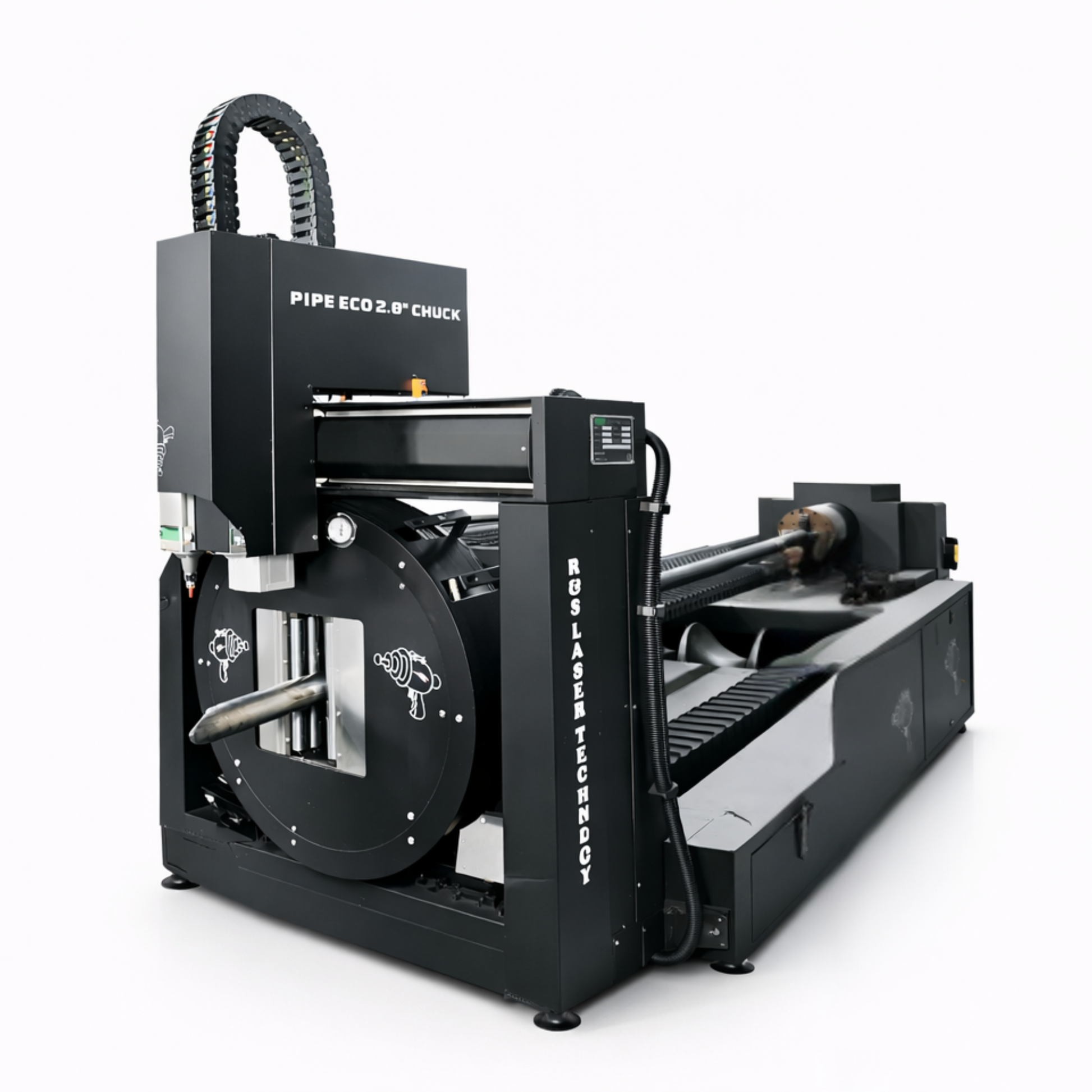

ECO 2.0 3000W Fiber Laser Tube Cutter

R&S ECO 2.0 — 3000W Fiber Laser Tube Cutter (20 ft) | 3-Phase

⚙️ Efficient, Versatile Tube & Pipe Processing

The R&S ECO 2.0 3000W Fiber Laser Tube Cutter is engineered for precision, efficiency, and versatility in tube and pipe processing. Featuring an upgraded 8-inch pneumatic chuck and a full 20-foot cutting length, this system accommodates a wide range of tube diameters and applications. Powered by a 3000W MAX fiber laser and built on a stable rack-and-pinion motion platform, the ECO 2.0 delivers clean, high-speed cuts with reliable accuracy while maintaining a compact, cost-effective design ideal for production shops.

📐 Cutting Capacity & Performance

• Cutting Length: 20 ft (6 meters)

• Laser Power: 3000W MAX fiber laser

• Cutting Capacity (production estimates):

– Mild Steel: up to ½”

– Stainless Steel: up to ⅜”

– Aluminum: up to ⅜”

• Materials Supported: Mild steel, stainless steel, aluminum

⚡ Power & Electrical

• Power Supply: 3-phase power required

• Operating Voltage: 220V or 380V

• Amperage: 80 AMPS without compressor / 145 AMPS with compressor

🧠 Motion & Control

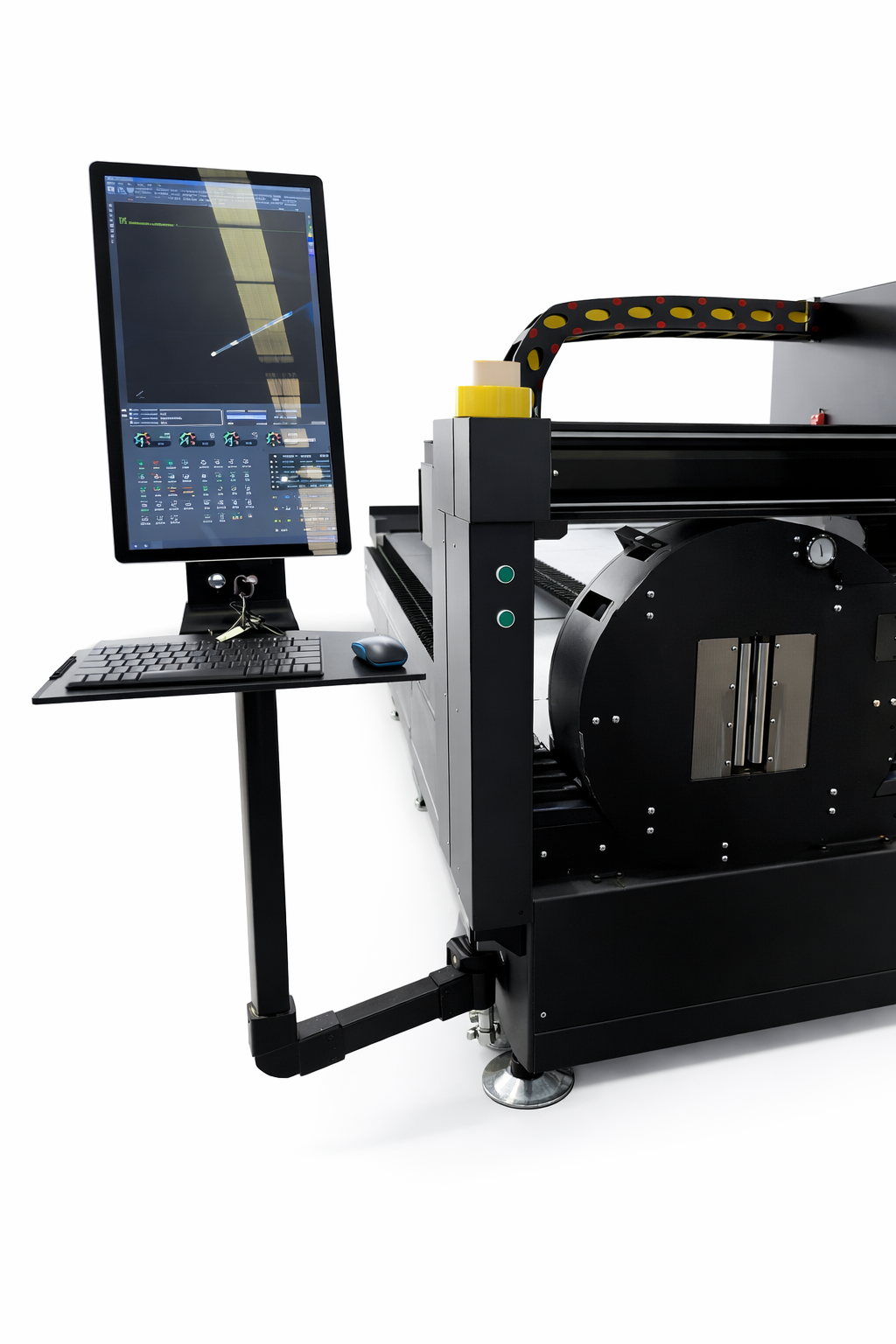

• Control System: RayTools 2D tube cutting software

• Interface: User-friendly programming and operation

• Motion System: High-precision rack-and-pinion drive for smooth, stable cutting

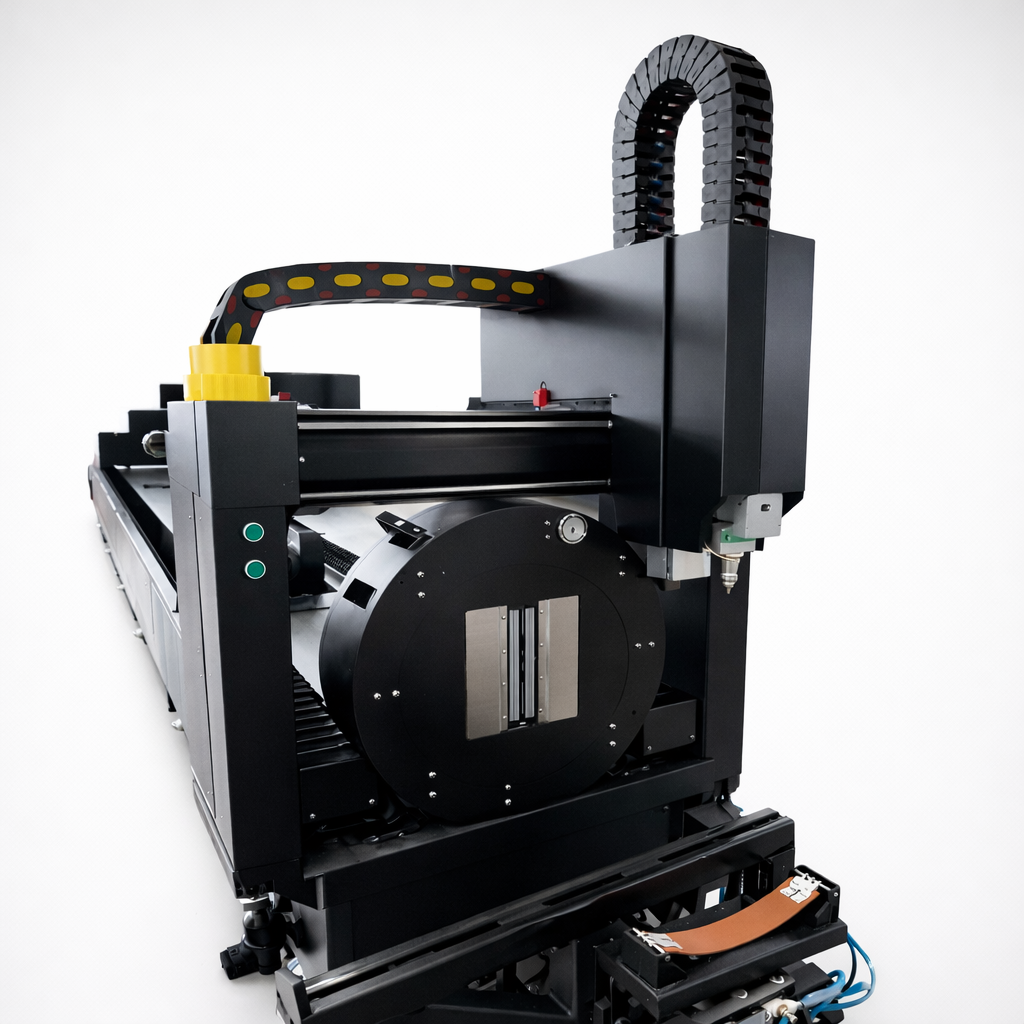

🎯 Chuck & Clamping System

• Chuck Size: 8-inch pneumatic chuck

• Clamping System: Dual pneumatic chucks (front and rear)

• Tube Stability: Precise holding for consistent rotational accuracy

🧊 Cooling & Support Systems

• Cooling System: Industrial-grade water chiller included

🏗️ Build Quality & Design

• Frame: ECO-class industrial tube cutting platform

• Design Focus: High adaptability with simplified maintenance and operation

🧰 Best For

• Tube and pipe fabrication

• Automotive and motorsports components

• Furniture and architectural metal

• Light structural and production tube cutting

• Shops needing flexible tube processing at a lower entry cost

🚚 Delivery & Warranty

• Delivery Time: 40–45 days

• Warranty: 1-year parts warranty

Return & Warranty Policy

At R&S Laser Technology, all machine sales are final. Once an order is placed, it cannot be canceled, returned, or refunded under any circumstance. Each system is custom-built, tested, and configured to order to meet the unique needs of our customers.

No Returns or Cancellations

Due to the custom nature of our fiber laser machines, press brakes, welders, air compressors, and other industrial equipment:

• All sales are final
• No returns or cancellations are accepted after an order is placed
• We do not offer refunds for change of mind or operational misapplication

By placing an order, you agree to these terms in full.
