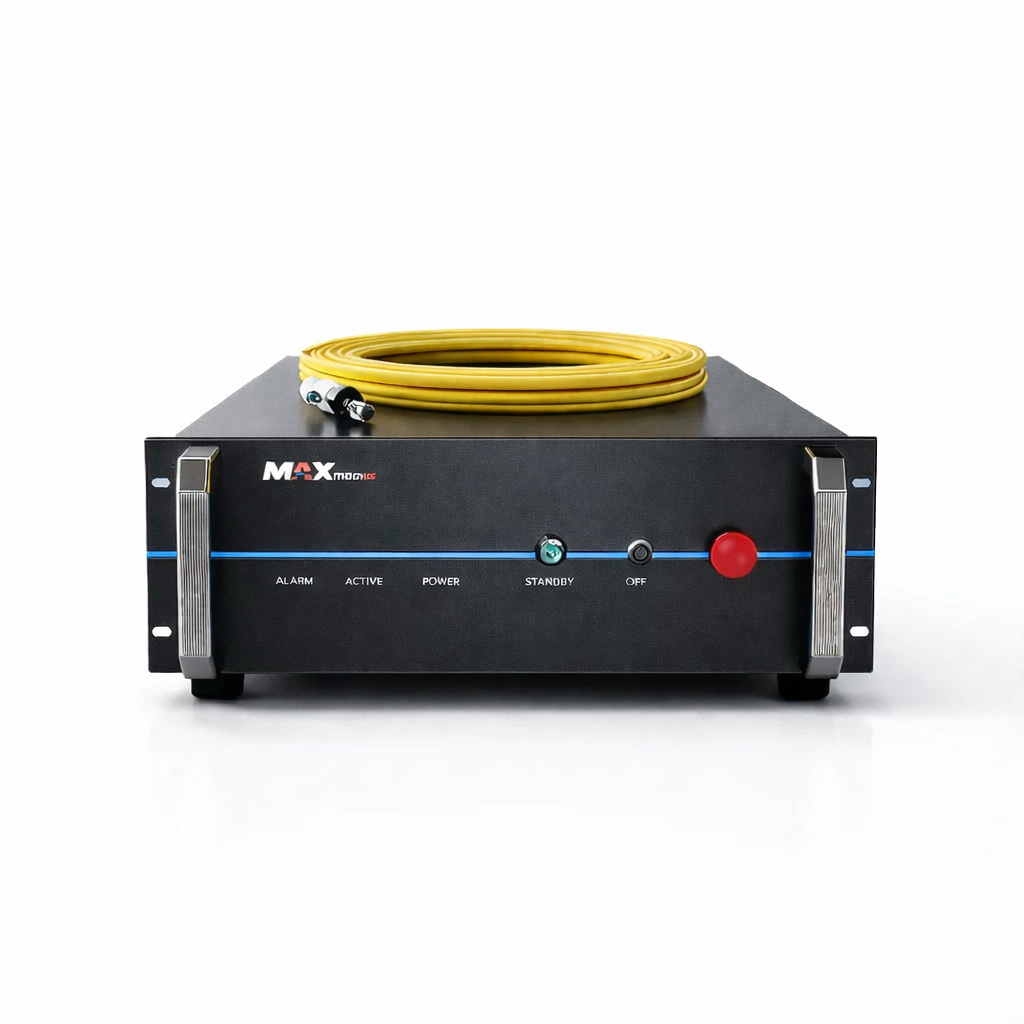

R&S MAX Fiber Laser Source — 2000W–3000W Continuous Wave
⚙️ High Stability, Clean Power, Industrial-Grade Performance
The MAX 2000W–3000W Fiber Laser Source is a high-performance continuous-wave (CW) laser engine engineered for cutting, welding, and industrial fabrication applications. Known for exceptional stability, high electro-optical efficiency, and excellent beam quality, this laser source is a trusted solution for OEMs, system integrators, and production shops. Designed for demanding environments, it features digital modulation, real-time power feedback, and advanced overload protection to ensure reliable, long-term operation. Fully compatible with most laser heads, CNC controllers, and software platforms, the MAX fiber source integrates seamlessly into flatbed cutters, tube lasers, and robotic welding systems.
📐 Laser Output & Performance
• Rated Power Options: 2000W or 3000W continuous output
• Laser Type: Continuous Wave (CW) fiber laser
• Power Tunability: 10%–100%
• Wavelength: 1080 ±10 nm
• Beam Quality (BPP): ≤ 3.5 mm·mrad
• Optimized for precision cutting and welding applications
⚡ Power & Electrical
• Power Supply: 220V / 50–60Hz
• Electro-Optical Efficiency: ≥40% for reduced power waste
• Designed for stable output under continuous industrial loads
🧠 Control & Communication
• Digital modulation with fast response
• Communication Interfaces: RS232 and Ethernet
• Real-time power monitoring and feedback
• Compatible with most CNC control systems and software platforms
🎯 Optics & Compatibility
• Output Interface: QBH or QCS
• Compatible with Raytools, WSX, Ospri, and other cutting heads
• Supports flatbed laser cutters, tube lasers, and robotic welding arms
🧊 Cooling & Protection
• Cooling Method: Water-cooled design for thermal stability
• Built-in fault detection and automatic shutdown
• Overload and temperature protection for laser safety and longevity
🏗️ Build Quality & Design
• Compact industrial chassis
• Dimensions: Approx. 485 × 430 × 180 mm
• Weight: ~35–45 kg
• Designed for OEM integration and production environments
🧰 Applications
• Flatbed fiber laser cutting machines
• Tube laser cutting systems
• Robotic and handheld laser welding
• Carbon steel, stainless steel, aluminum, and brass processing
• Industrial fabrication and automation systems
🏆 Why Choose MAX Fiber Laser Sources
• Proven stability and long service life
• High efficiency with excellent beam quality
• Broad compatibility with industry-standard components
• Advanced safety and monitoring features
• Trusted global brand for industrial laser systems
🚚 Delivery & Warranty
• Delivery Time: 7–14 days
• Warranty: 1-year parts warranty
