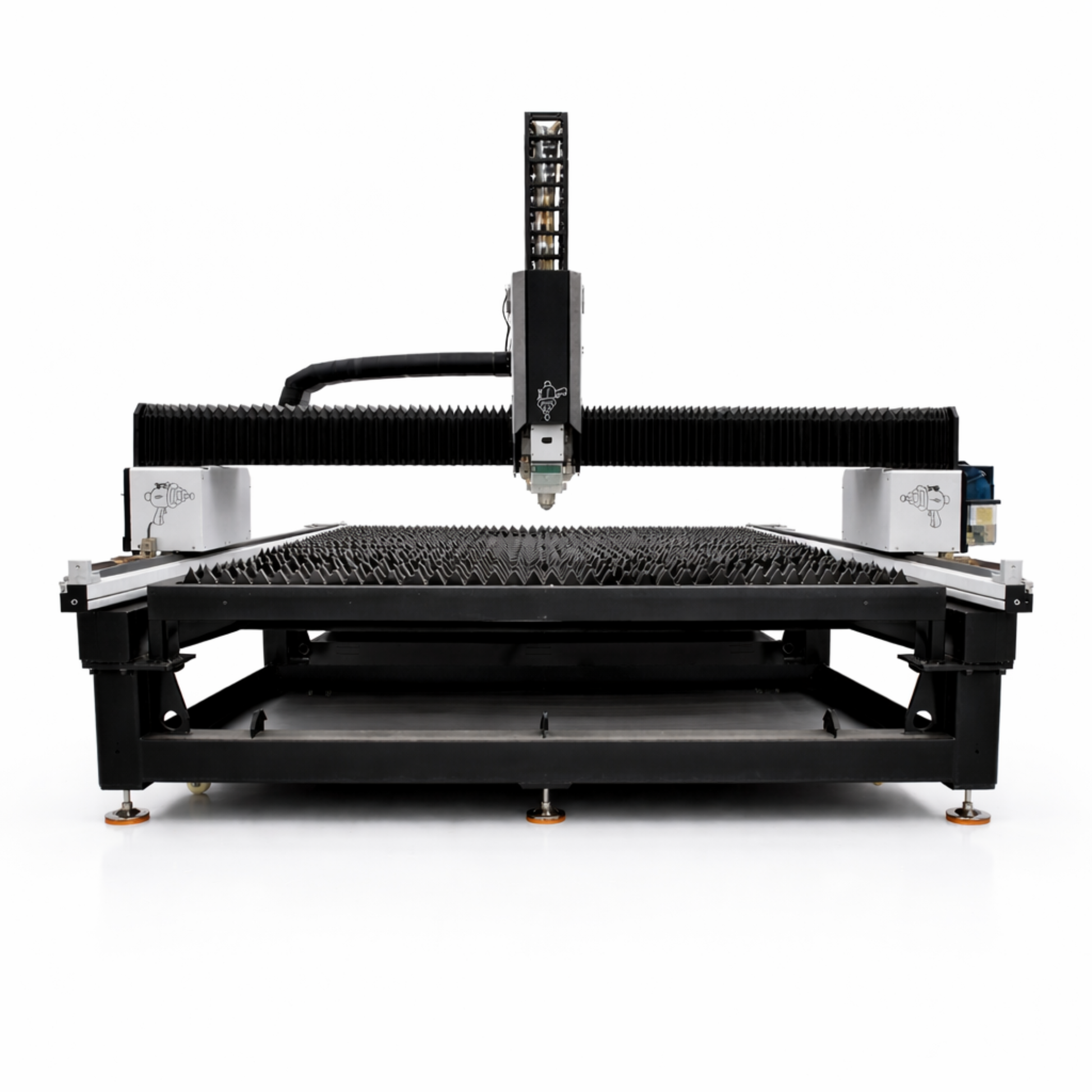

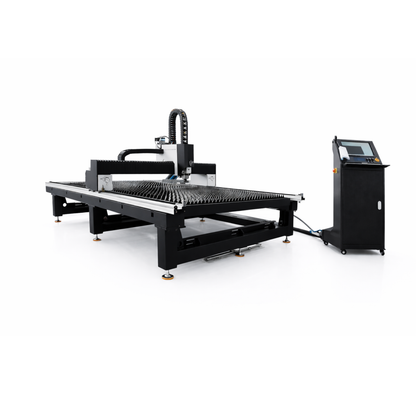

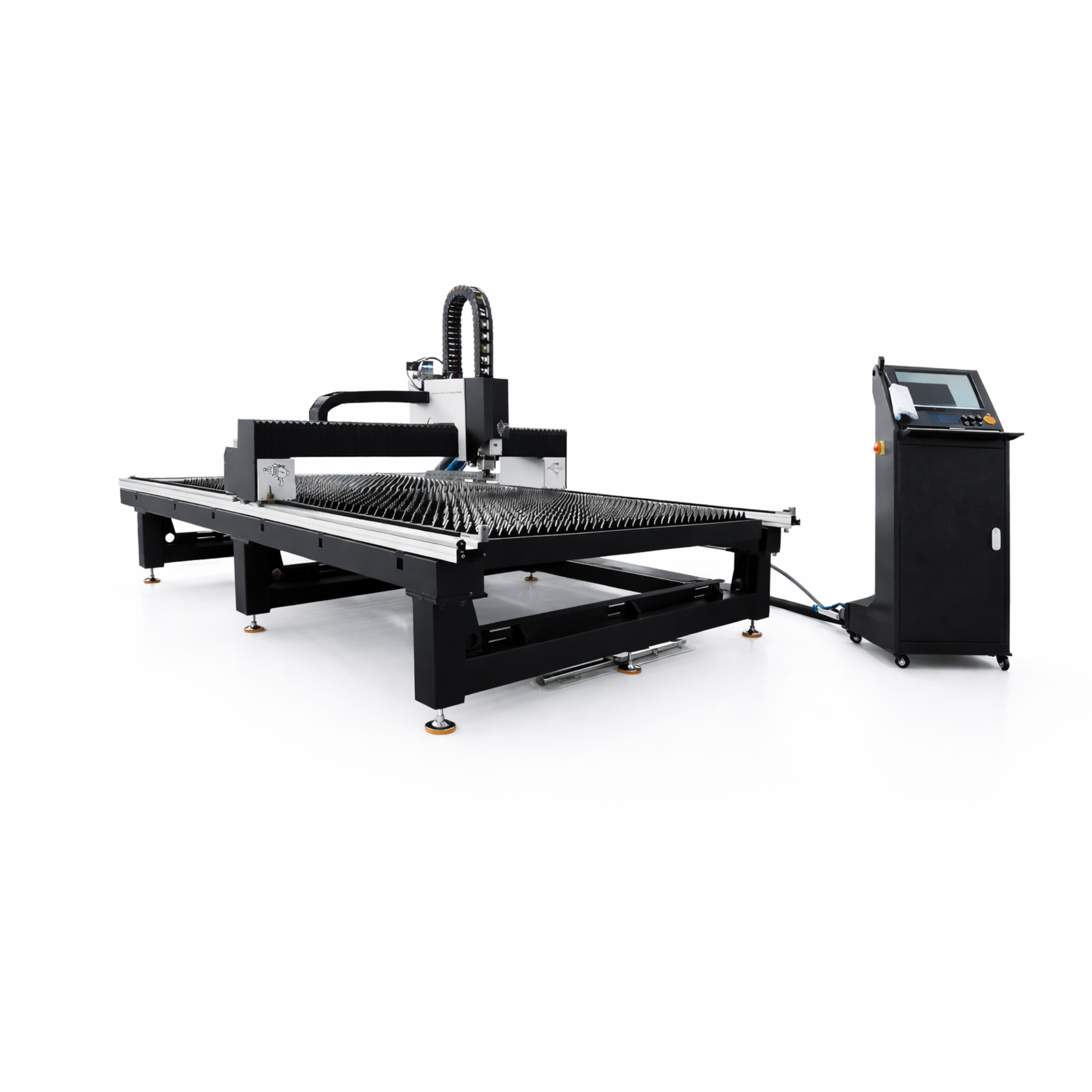

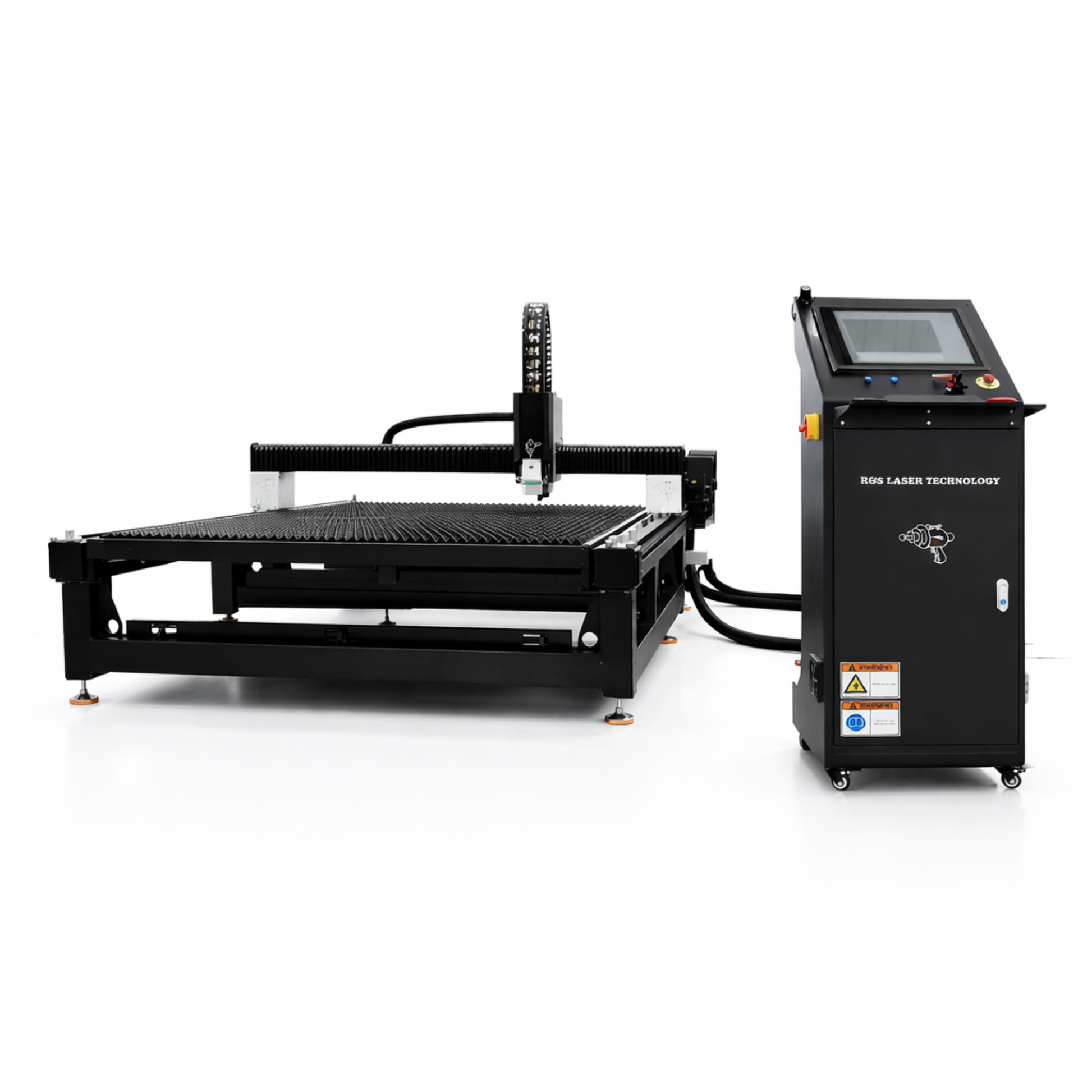

Pro 2.0 5x10 Modular Fiber Laser Table 2000W Single Phase

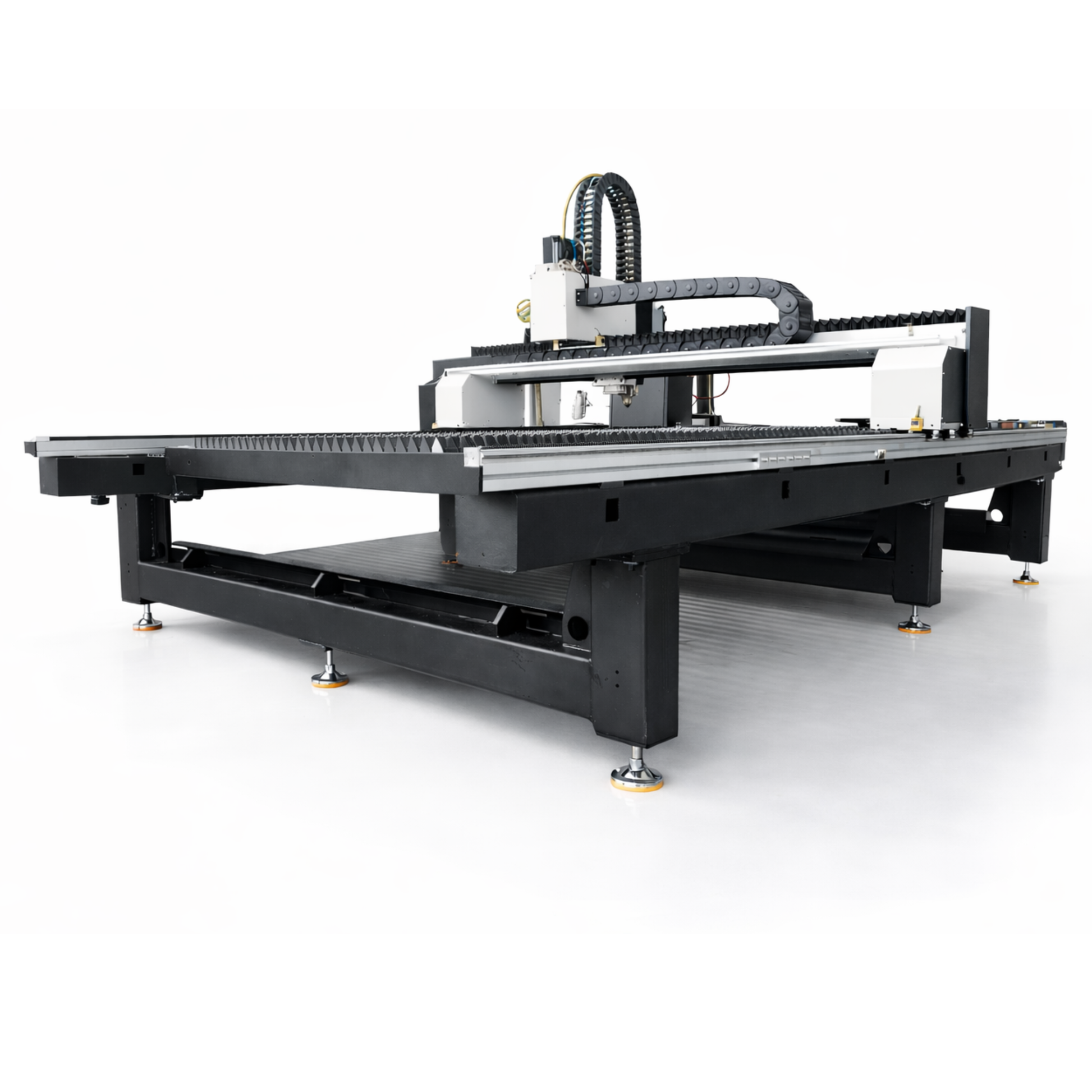

RS Pro 2.0 — 2000W Fiber Laser Table (5’ × 10’) | Single-Phase

⚙️ Industrial Power, Single-Phase Simplicity

The RS Pro 2.0 2000W is a powerful, compact, and efficient fiber laser table engineered for shops without access to 3-phase power. This single-phase 220V system delivers serious cutting performance with professional-grade components, including Yaskawa servos, Schneider Electric (France) electronics, and a 16-bar single-phase air compressor for consistent high-pressure air delivery. Capable of cutting 1mm steel at speeds up to 45 m/min, this machine offers precise control, reliability, and industrial output in a single-phase configuration.

📐 Cutting Area & Performance

• Cut Area: 5’ × 10’ (1500mm × 3000mm)

• Laser Power: 2000W

• Cutting Speed (1mm): Up to 45 m/min

⚡ Power & Electrical

• Power Supply: Single-phase 220V (machine + compressor)

• Phase: Single-phase

• Amperage: 40 AMPS without compressor / 105 AMPS with compressor

🧠 Motion & Control

• Servo Motors: Yaskawa (Japan)

• Gearboxes: French planetary reducers

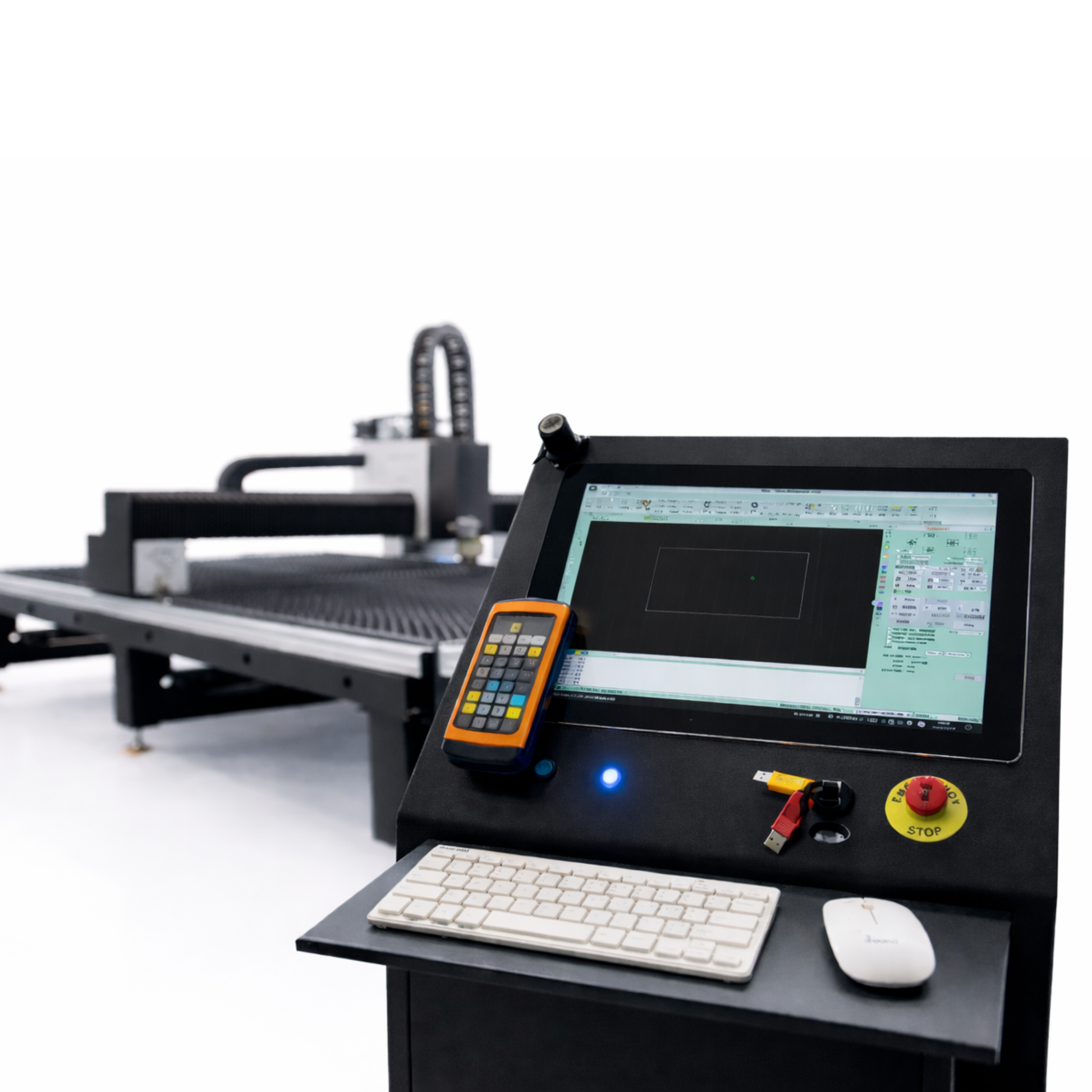

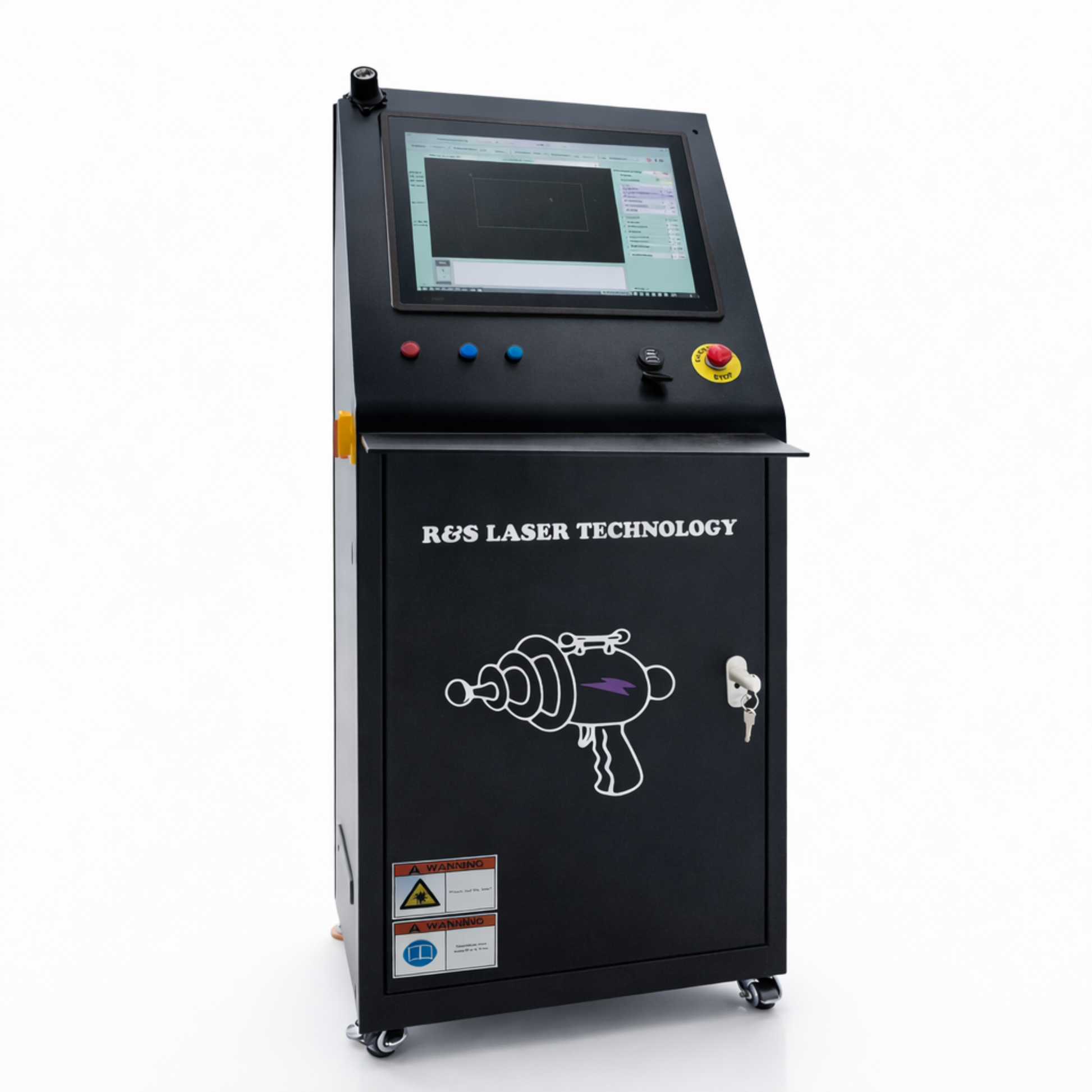

• Controller: CypCut software with nesting, fly-cutting, and remote control

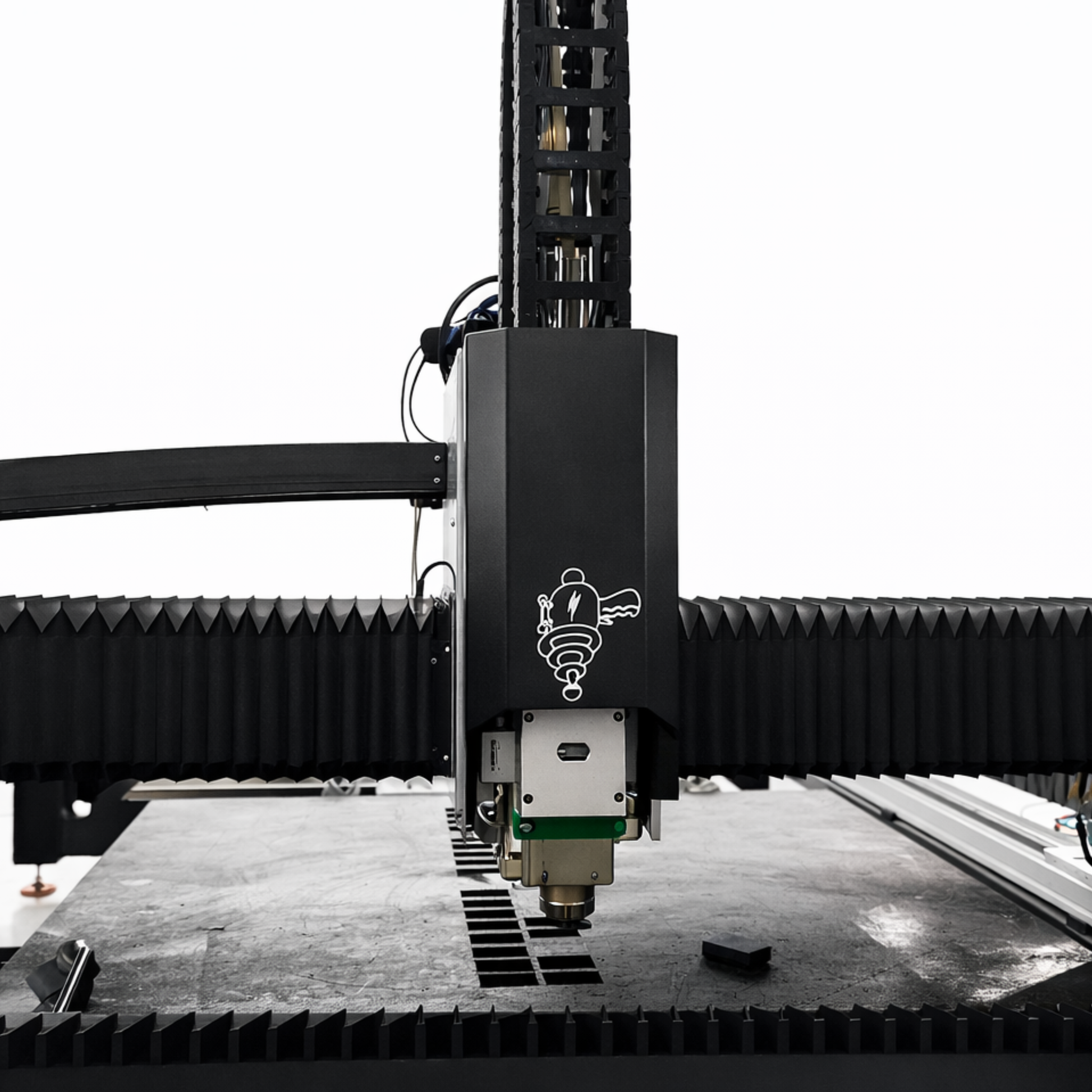

• Laser Head: Raytools auto-focus

🧊 Cooling & Air

• Cooling System: Closed-loop industrial water chiller

• Compressor: 16-bar single-phase air compressor included

🏗️ Build Quality

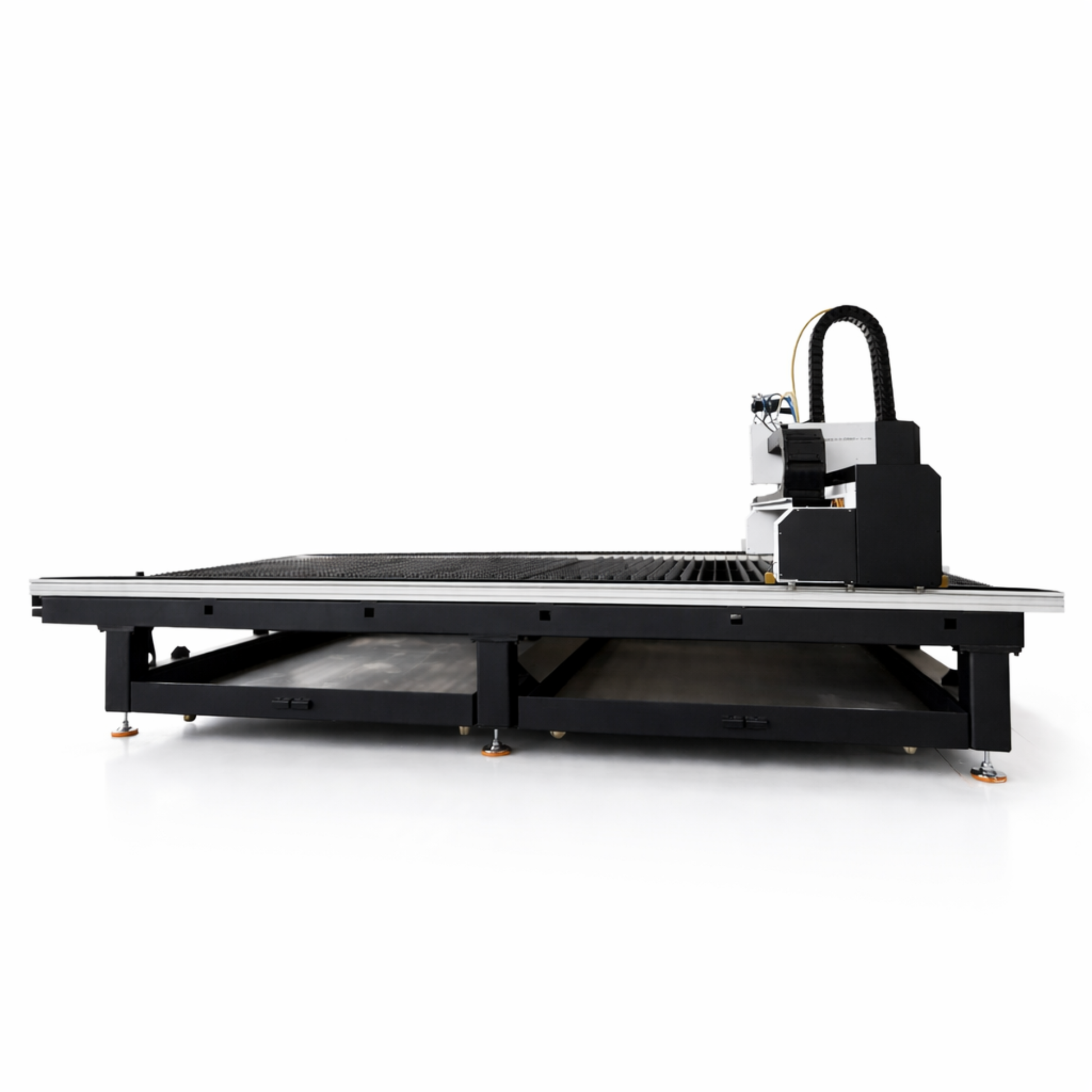

• Frame: RS Pro 2.0 heavy-duty steel structure

• Electronics: Schneider Electric (France)

🚚 Delivery & Warranty

• Delivery Time: 40–45 days

• Warranty: 2-year parts warranty including laser source and laser head
