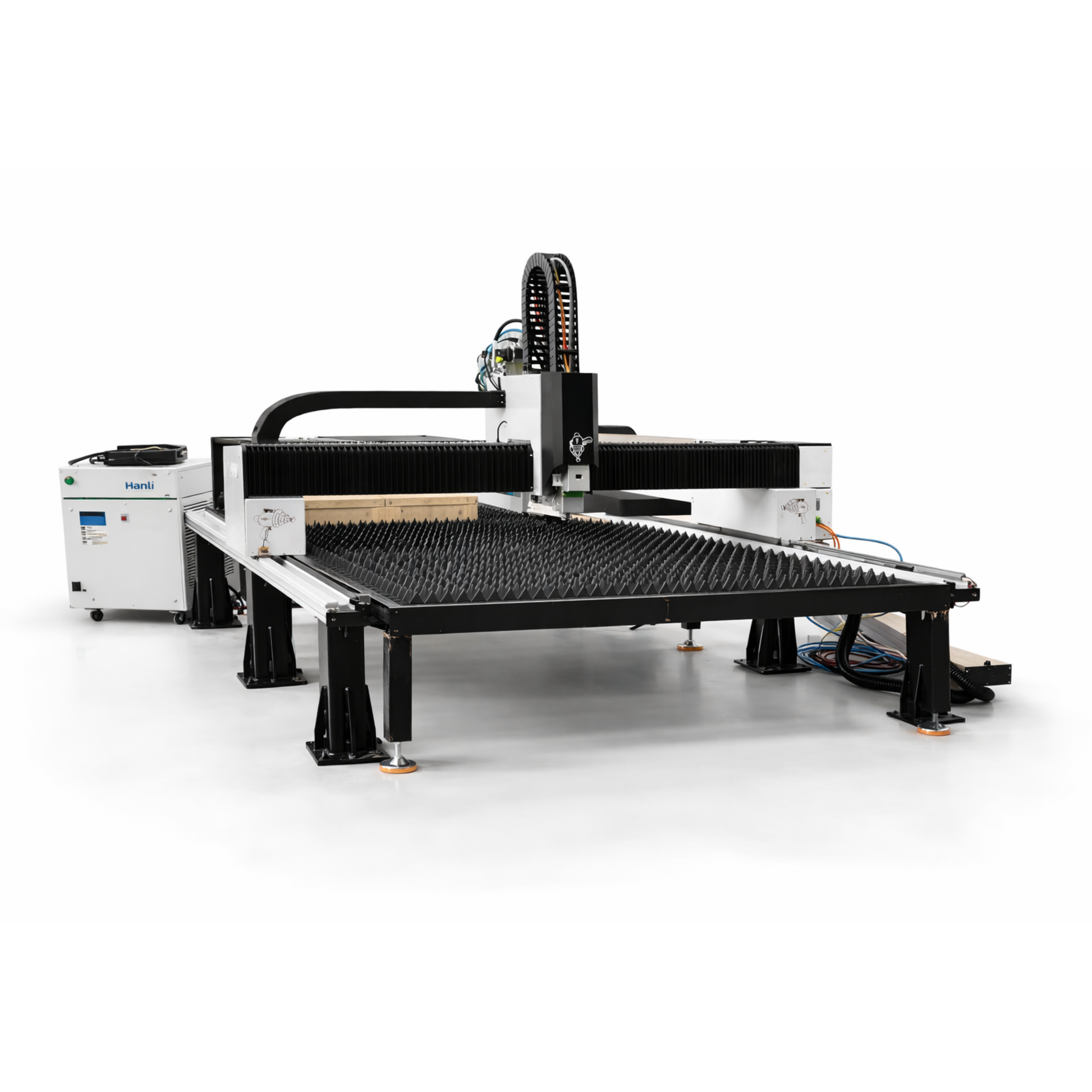

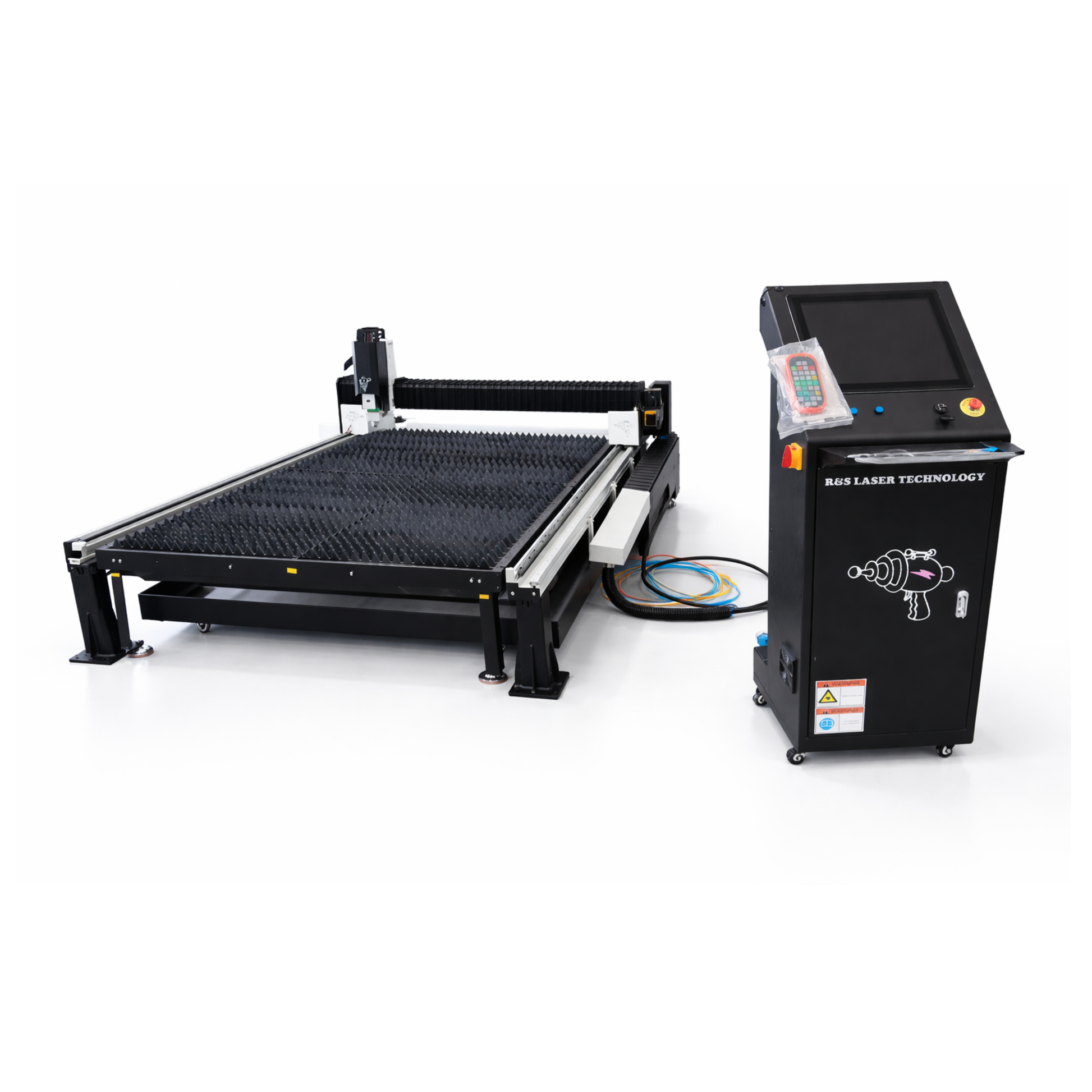

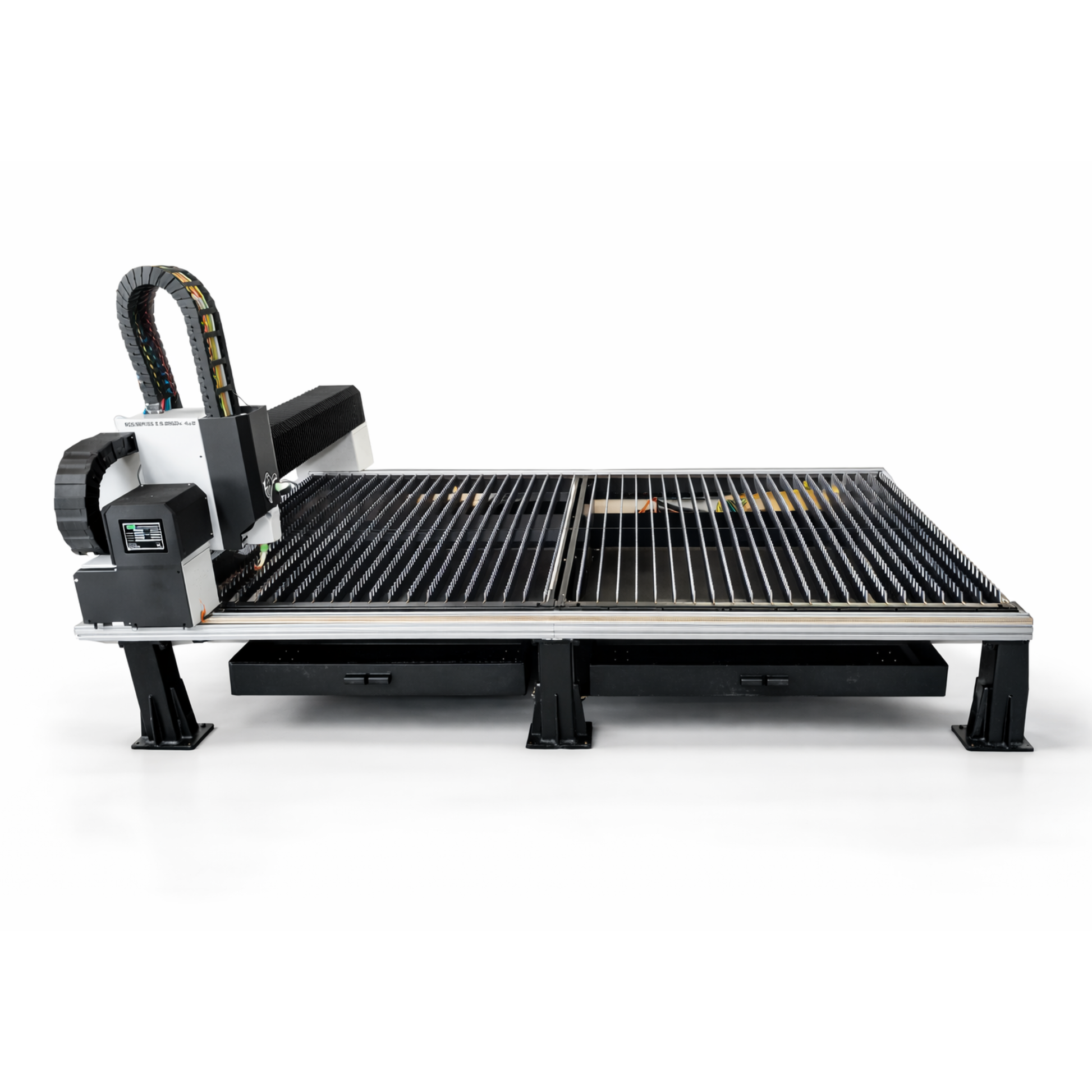

R&S ECO 2.0 – 4×8 Fiber Laser Cutting System

R&S ECO 2.0 — 2000W Fiber Laser Cutting System (4’ × 8’) | Open Bed

⚙️ Industrial Performance in a Lightweight, Budget-Friendly Platform

The R&S ECO 2.0 4’ × 8’ Fiber Laser Cutting System is designed for shops that need true industrial cutting capability in a simplified, open-bed format. Built with the same engineering philosophy as the Pro Series machines, the ECO 2.0 combines a rigid modular steel frame, fast and stable gantry design, and reliable MAX fiber laser technology to deliver clean, precise cuts with low maintenance and high uptime. Ideal as an entry-level or secondary production machine, its open-table configuration allows easy loading and unloading while keeping the system serviceable and cost-effective.

📐 Cutting Area & Performance

• Working Area: 4’ × 8’ (1300 × 2500 mm)

• Laser Power: 2000W MAX Photonics fiber laser

• Typical Cutting Capacity (production estimates):

– Mild Steel: 6–10 mm

– Stainless Steel: 4–6 mm

– Aluminum: 3–4 mm

– Galvanized: 3–4 mm

• Actual performance varies based on gas purity, nozzle, and parameters

⚡ Power & Electrical

• Input Voltage: Single-phase 220V (3-phase optional)

• Amperage: 40 amps with compressor

• Transformer: Not included

🧠 Motion & Control

• Control System: Raytools XC3000

• Cutting Head: Raytools BM110 autofocus with ceramic crash protection

• Height Control: Built-in capacitance height sensor

• Nozzle Compatibility: Single and double-layer Raytools style

• Servo Motors: Inovance servo motors

• Reducers: Shimpo precision reducers

• Drive System: Rack and pinion for X/Y axes

• Z-Axis: Motorized with autofocus integration

🧊 Cooling & Air

• Cooling System: Industrial water chiller included (matched to 2kW MAX requirements)

• Cooling Type: Dual-loop cooling for laser source and cutting head

• Air Supply: Clean, dry compressed air (90–120 PSI recommended)

• Compressor Compatibility: Compatible with 16-bar compressor and dryer

🏗️ Build Quality

• Frame: ECO-class modular steel frame

• Table Type: Open-frame system (no enclosed worktable)

• Rail System: Side-mounted bolt-down guide rails

• Gantry: Lightweight, width-running gantry for stable ECO-class high-speed motion

🧰 Included Features

• MAX 2kW fiber laser system

• Raytools XC3000 autofocus control

• Raytools BM110 autofocus cutting head

• Industrial water chiller

• Inovance + Shimpo servo drive package

• Open-table design for easy material handling

• Bolt-down rail system for stability

• Dual cable chain routing

• Unlimited parameter support and assistance

🧰 Applications

• HVAC fabrication

• Automotive and motorsports

• Signage and decorative metal

• Custom metalwork

• Job-shop manufacturing

• Secondary production or overflow cutting

🚚 Delivery & Warranty

• Delivery Time: 40–45 days

• Warranty: 2-year parts warranty including laser source and laser head
