Industrial Fiber Laser Tube Cutting System with 3D Bevel Cutting (±45°)

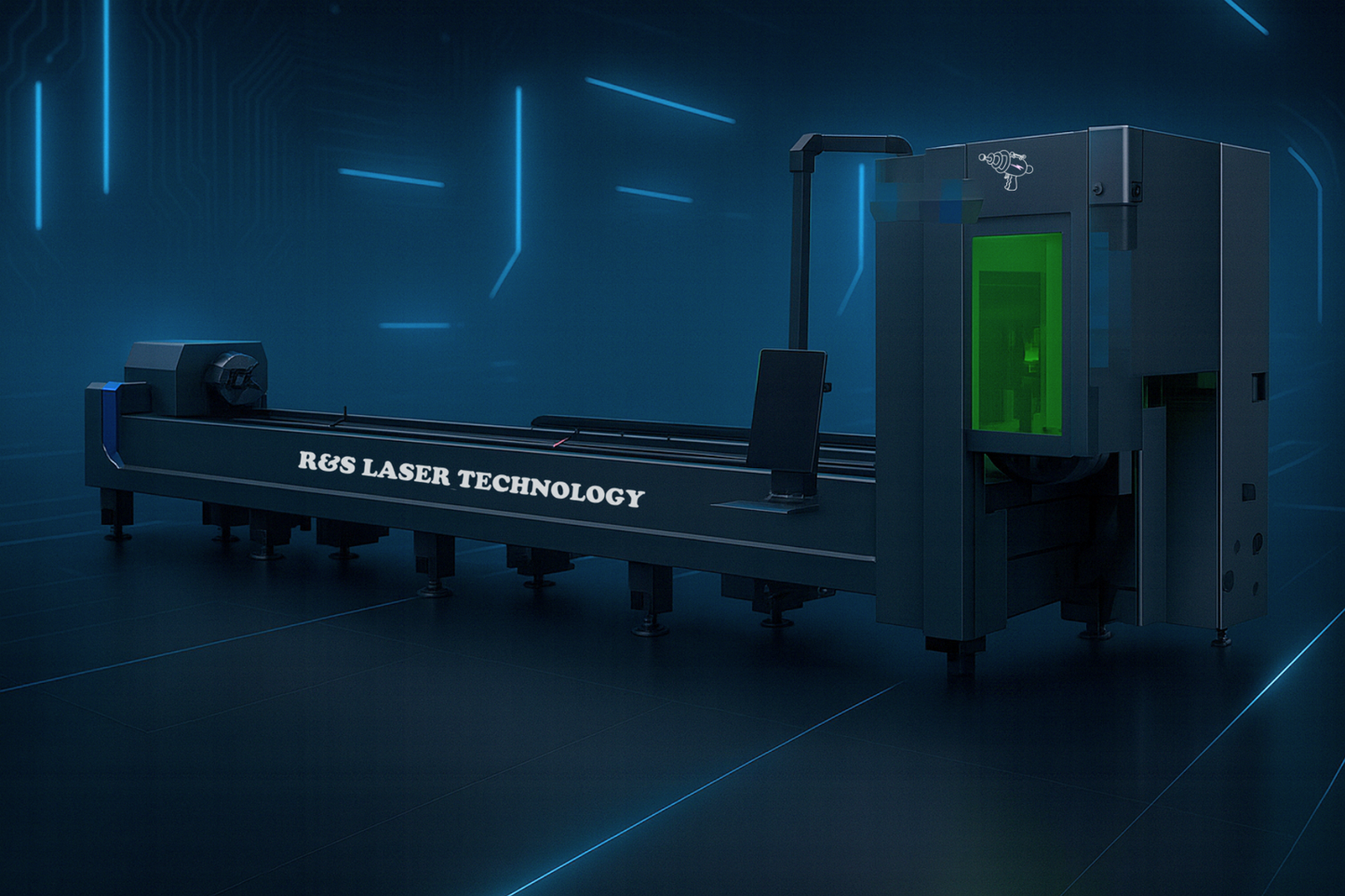

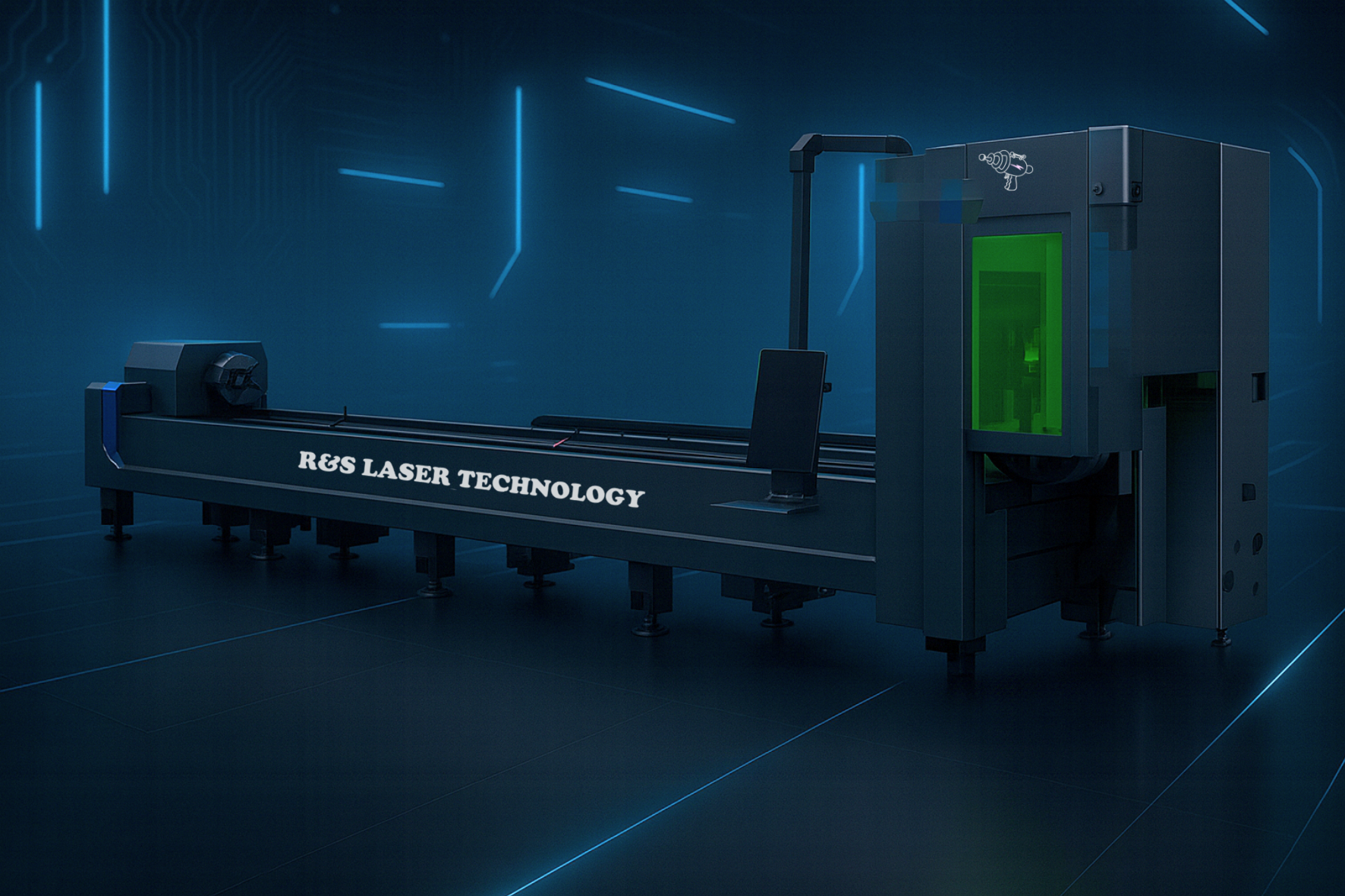

The PRO Bevel 20FT Tube Cutter – 6000W is a next-generation fiber laser tube processing system engineered for fabricators who need complex bevel cuts, weld-prep edges, tube saddles, coping profiles, and 3D contouring with absolute precision. With a full 20-foot (6,000 mm) loading capacity, a heavy-duty frame, and a powerful 6000W MAX Photonics laser source, this machine delivers unmatched performance in structural steel, industrial fabrication, automotive tube work, and high-precision manufacturing.

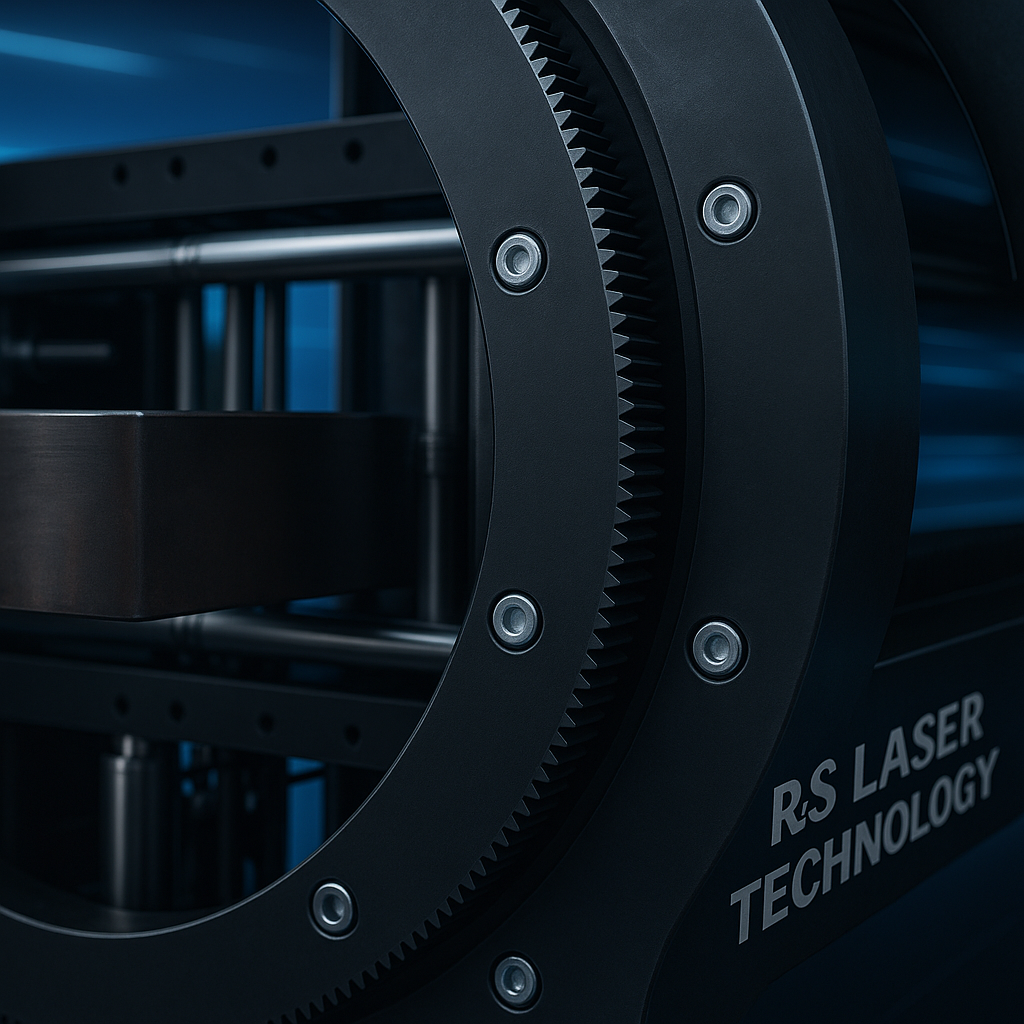

Unlike traditional 2D tube cutters, this system uses a 3D bevel-capable RayTools cutting head, enabling angular cutting up to ±45°, perfect for weld prep, mitering, chamfering, and advanced joint preparation. Combining the bevel head with an industrial 12” pneumatic chuck, the system can handle large-diameter tubing with full positional stability and tight rotational accuracy.

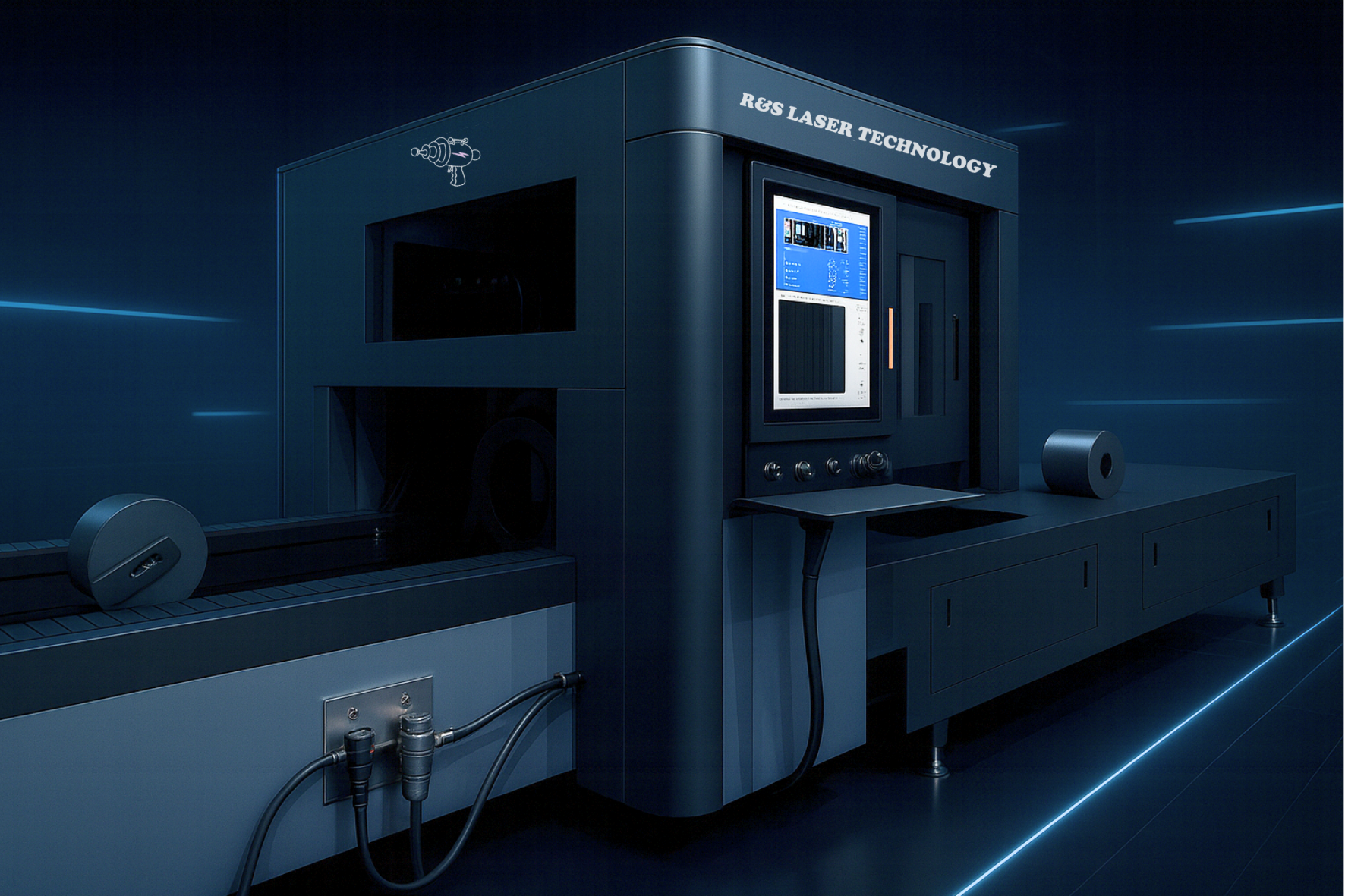

The machine is controlled by the FSCUT TubePro + TubeBevel software package, allowing ultra-precise bevel path planning, automatic compensation, corner control, and 3D toolpath interpolation.

⸻

🔥 Key Advantages

True 3D Bevel Cutting (±45°)

    •    Ideal for weld-ready edges

    •    Eliminates manual grinding

    •    Perfect for heavy structural joints

    •    Produces precise fit-ups for cages, frames, trusses, equipment bases, and architectural structures

20-Foot Full-Length Capacity

Processes full tube sticks (square, rectangle, round) without repositioning or manual realignment.

6000W MAX Photonics Laser Source

    •    Exceptional beam quality

    •    Long lifespan fiber module

    •    High-speed cutting even on thick-wall tube

    •    Stable power delivery for bevel geometry

⸻

⚙️ Technical Specifications

Laser Source

    •    6000W MAX Photonics

    •    High-power for heavy-wall steel

    •    Supports bevel edge consistency across full 3D motion range

Bevel Head

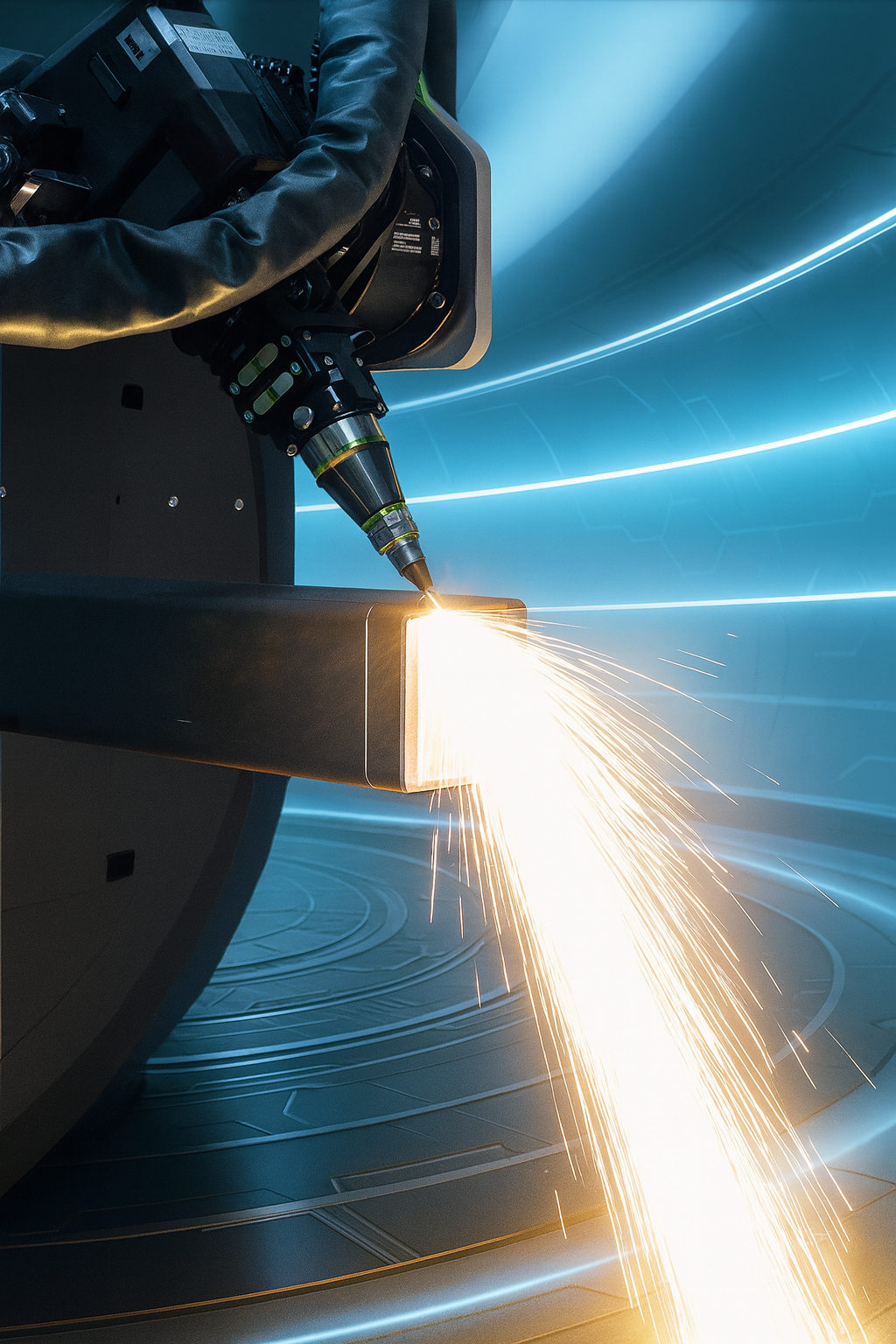

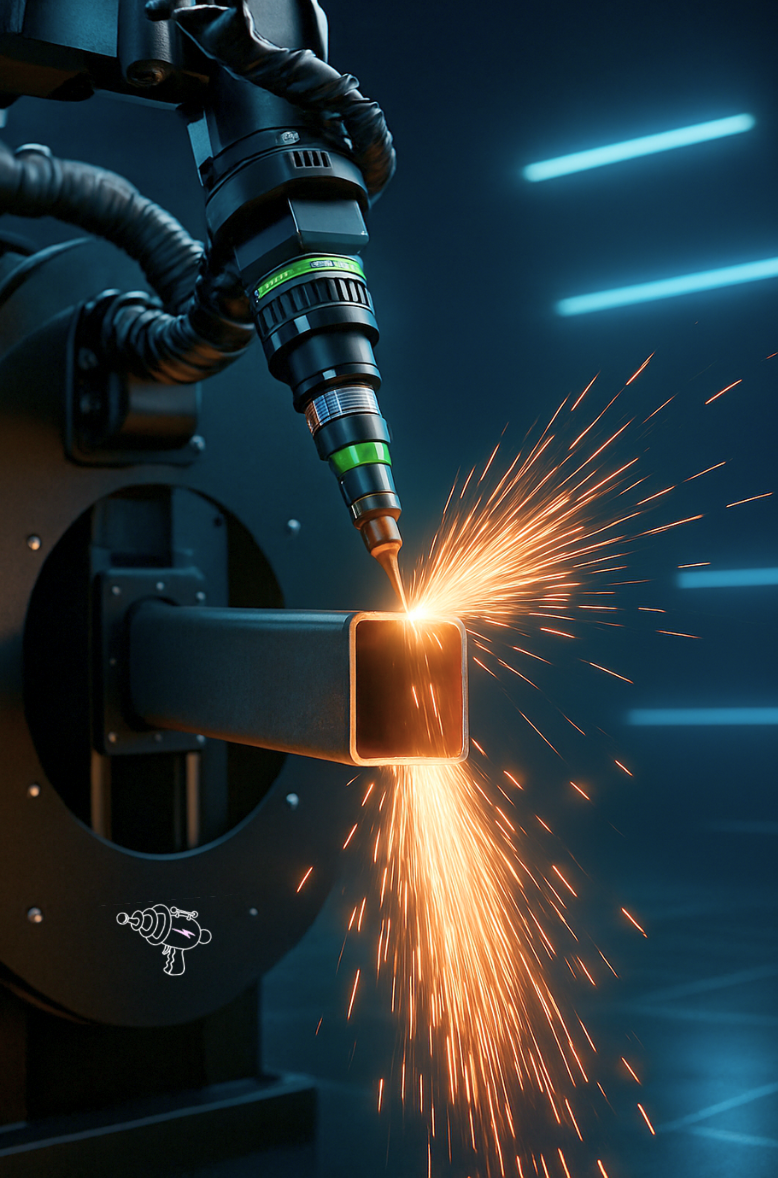

    •    RayTools 3D Bevel Cutting Head

    •    ±45° tilt range

    •    Auto-focus

    •    Collision protection

    •    Water-cooled optics

    •    Integrated height sensing for angled cuts

Material Compatibility

    •    Round Tube: up to 10–12” OD (depending on configuration)

    •    Square Tube: up to 8–10”

    •    Rectangle Tube: up to 10” × 6” (based on diagonal size)

    •    Minimum tube: 1” round

Cut Thickness (with 6000W MAX):

    •    Mild Steel: ⅝” (16 mm)

    •    Stainless Steel: ½” (12 mm)

    •    Aluminum: ⅜–½” (10–12 mm)

    •    Galvanized Steel: ¼–⅜”
