40-Ton, 4-Foot Servo Driven Press Break
40-Ton, 4-Foot Servo Driven Press Break
Couldn't load pickup availability

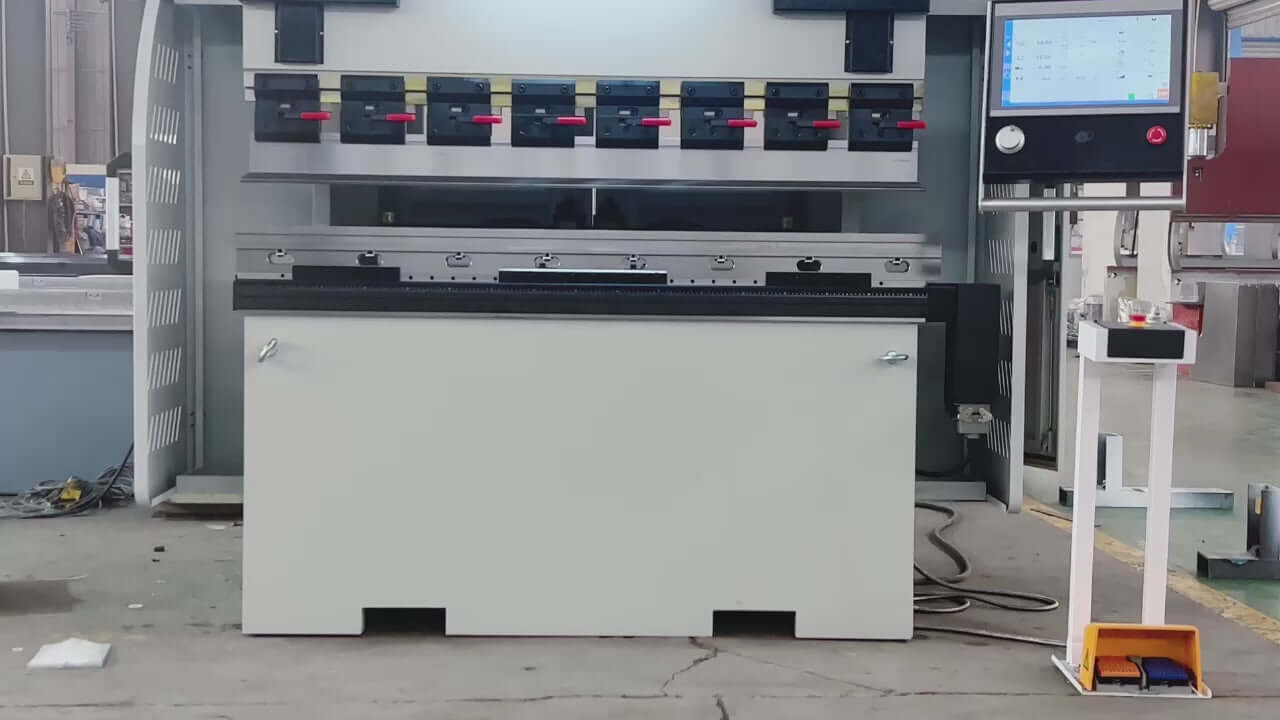

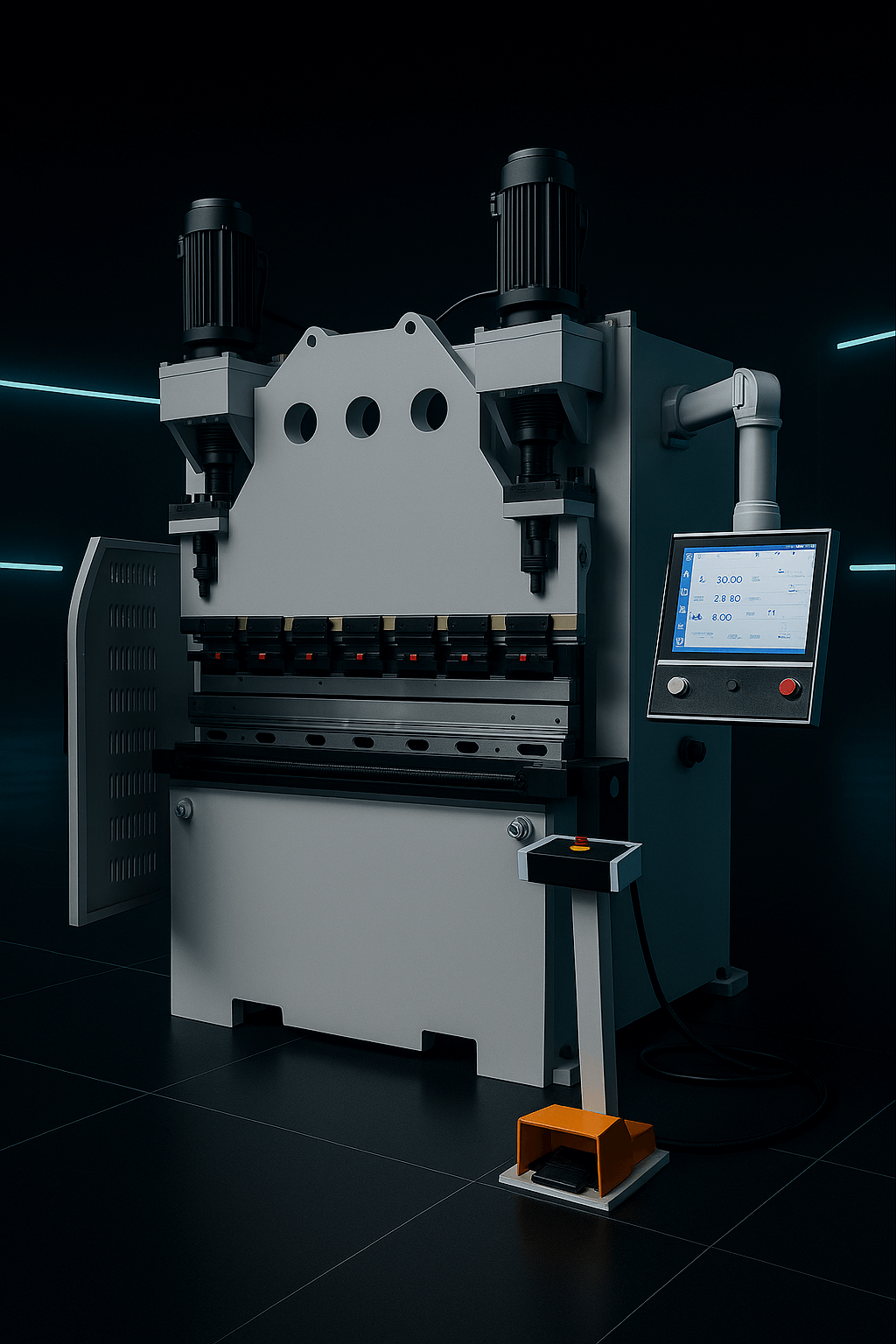

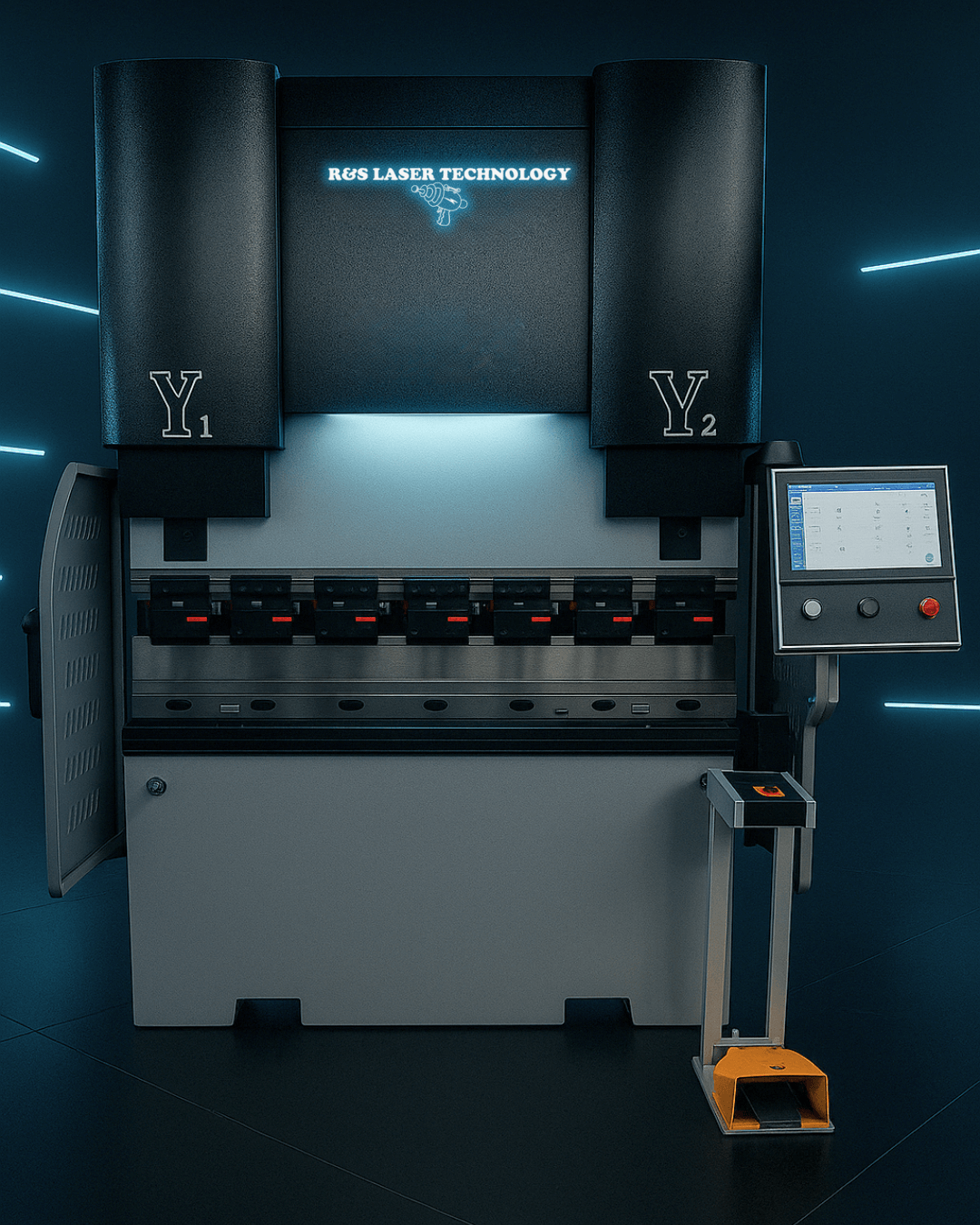

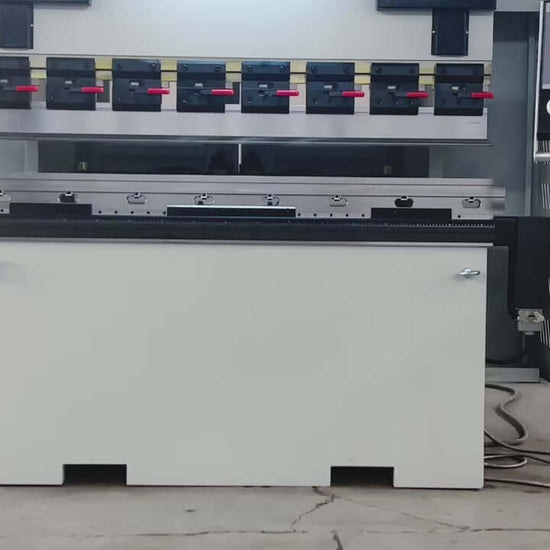

The RS40T1200SD from R&S Laser Technology is a compact yet highly capable 40-ton, 4-foot servo-driven press brake, designed for precision forming with speed, silence, and energy efficiency. Featuring a fully electric servo system and advanced 6-axis CNC control, this machine is engineered for high-accuracy production of small and complex parts in demanding fabrication environments.

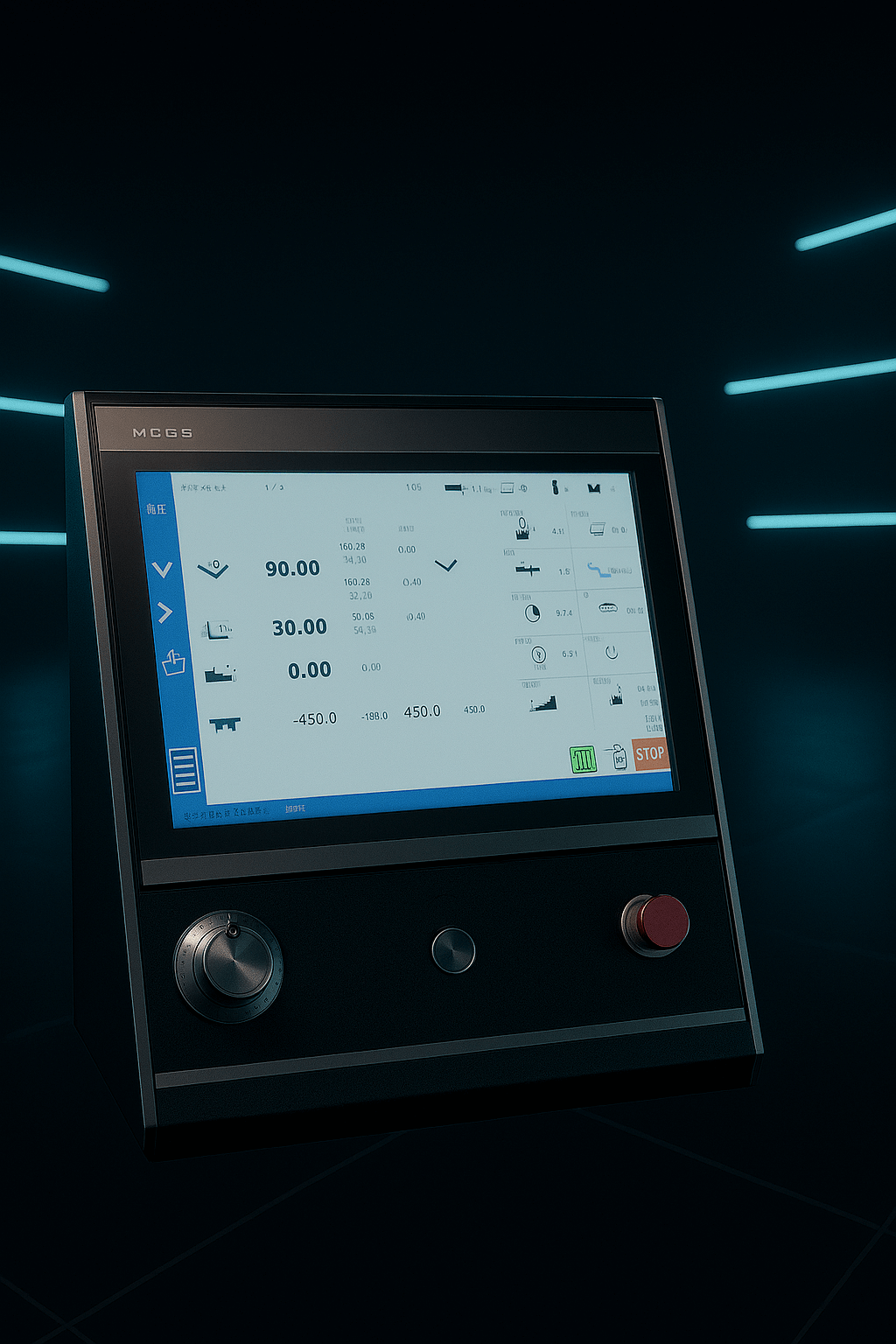

Equipped with the intuitive SL100-P CNC controller, operators can manage multi-axis movements, tool setups, and bend sequencing from a simple, powerful interface. The direct-drive servo motors eliminate hydraulic maintenance while delivering consistent performance and tight repeatability on every bend.
Built to meet the demands of aerospace, electronics, metal art, and precision prototyping industries, the RS40T1200SD brings big-machine accuracy into a space-saving footprint.
Specifications:
| Feature | Detail |
|---|---|
| Model | RS40T1200SD |
| Tonnage | 40 Tons |
| Bending Length | 1200 mm (4 feet) |
| Drive Type | Fully Servo-Electric (No Hydraulics) |
| Control System | SL100-P CNC Controller |
| Controlled Axes | Y1, Y2, X, R, Z1, Z2 (6-Axis) |
| Backgauge Travel | X: 600 mm, R: 150 mm, Z1/Z2: Programmable |
| Ram Stroke | 150 mm |
| Max Open Height | 350 mm |
| Throat Depth | 200 mm |
| Repeatability | ±0.01 mm |
| Axis Accuracy | ±0.01 mm (All Axes) |
| Motor Type | High-Torque Direct Servo Motors |
| Power Supply | 220V (Single or 3-Phase Options Available) |
| Software | SL100-P with Graphical Bending Simulation |
| Tooling Style | European-Style (Optional Quick Clamp) |
| Weight | ~3,500–4,000 lbs |
| Warranty | 1-Year Parts & Labor |
| Delivery Time | 50-55 Days |
| Designed In | California, USA |
| Manufactured In | Overseas (Built to R&S Standards) |
