40-Ton, 4-Foot Servo Driven Press Break

RS40T1200SD — 40-Ton Servo-Electric CNC Press Brake (4 ft)

⚙️ High-Precision Servo Forming in a Compact Footprint

The RS40T1200SD is a compact yet highly capable 40-ton, 4-foot servo-driven CNC press brake engineered for precision forming with speed, silence, and energy efficiency. Featuring a fully electric servo system and advanced 6-axis CNC control, this machine delivers high accuracy and repeatability without the maintenance demands of hydraulics. Designed for aerospace, electronics, metal art, and precision prototyping, the RS40T1200SD brings big-machine accuracy into a space-saving footprint.

📐 Bending Capacity & Performance

• Nominal Tonnage: 40 tons

• Bending Length: 1200 mm (4 ft)

• Ram Stroke: 150 mm

• Max Open Height: 350 mm

• Throat Depth: 200 mm

• Repeatability: ±0.01 mm

• Axis Accuracy: ±0.01 mm (all axes)

⚡ Power & Electrical

• Power Supply: 220V (single-phase or 3-phase options available)

• Amperage: 100 AMPS

• Transformer: Included

🧠 Motion & Control

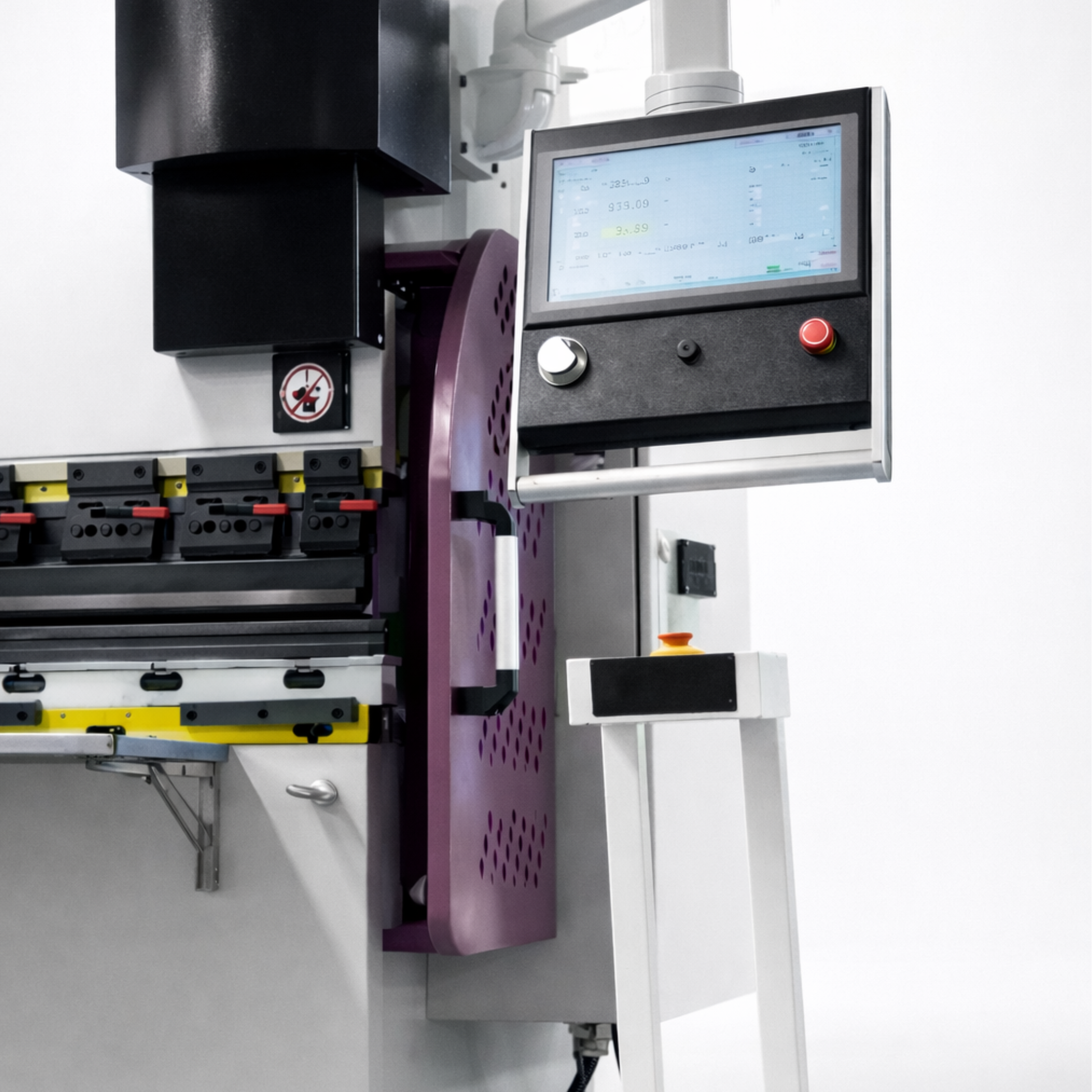

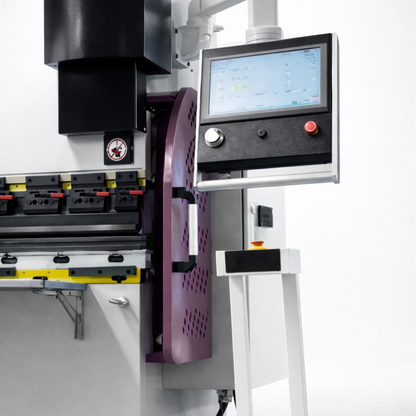

• Controller: SL100-P CNC controller

• Software: Graphical bending simulation and bend sequencing

• Controlled Axes: Y1, Y2, X, R, Z1, Z2 (6-axis CNC)

• Backgauge Travel: X 600 mm / R 150 mm / Z1 & Z2 programmable

• Motor Type: High-torque direct-drive servo motors

🏗️ Build Quality & Design

• Drive Type: Fully servo-electric (no hydraulics)

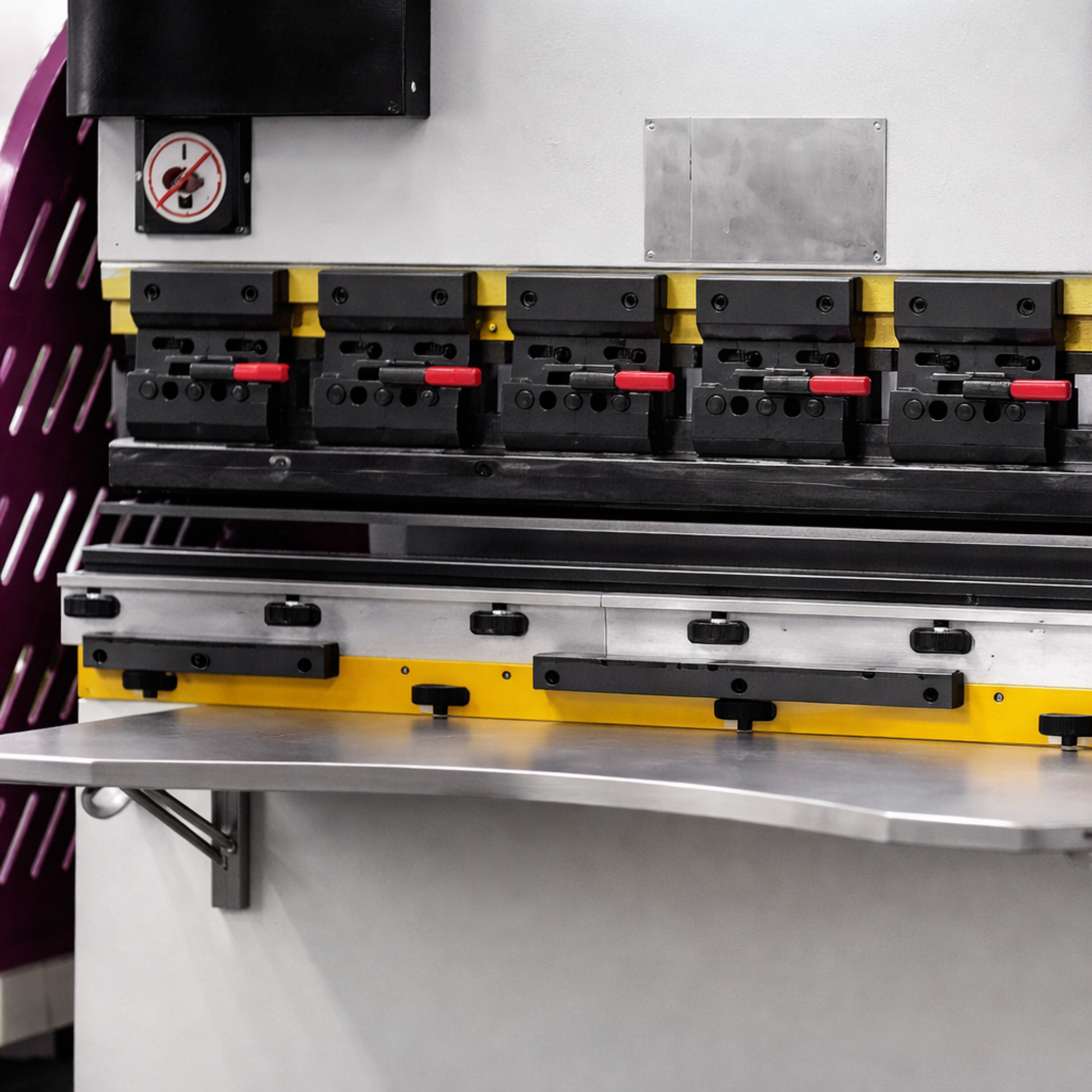

• Tooling Style: European-style tooling (optional quick clamp)

• Weight: Approx. 3,500–4,000 lbs

• Design Origin: Designed in California, USA

• Manufacturing: Built overseas to R&S standards

🧰 Best For

• Aerospace and electronics fabrication

• Precision prototyping

• Metal art and architectural components

• Small, complex, high-accuracy parts

• Shops seeking quiet, energy-efficient forming

🚚 Delivery & Warranty

• Delivery Time: 50–55 days

• Warranty: 1-year parts warranty
