70-ton, 6ft Single-Phase CNC Press Brake with CybTouch 8 control

RS70T1800SP — 70-Ton CNC Press Brake (6 ft) | Single-Phase

⚙️ High Tonnage Bending with Single-Phase Simplicity

The RS70T1800SP is a 70-ton, 6-foot CNC press brake engineered for shops that need serious bending power in a compact footprint—without requiring 3-phase power. Designed to run on single-phase 220V, this machine delivers true industrial performance with a fully welded frame, CNC-controlled ram and backgauge, and intuitive CybTouch 8 control. Ideal for space-conscious fabrication shops that want plug-and-play power without sacrificing precision, strength, or reliability.

📐 Bending Capacity & Performance

• Nominal Pressure: 700 kN (70 ton)

• Bending Length: 1800 mm (6 ft)

• Stroke: 150 mm

• Max Open Height: 350 mm

• Throat Depth: 320 mm

• Worktable Width: 104 mm

• Control Accuracy: ±0.01 mm

⚡ Power & Electrical

• Power Supply: Single-phase 220V

• Phase: Single-phase

• Amperage: 80 AMPS

• Average Power Usage: ~7 kW

• Main Motor Power: 7.5 kW

• Transformer: Not included

🧠 Motion & Control

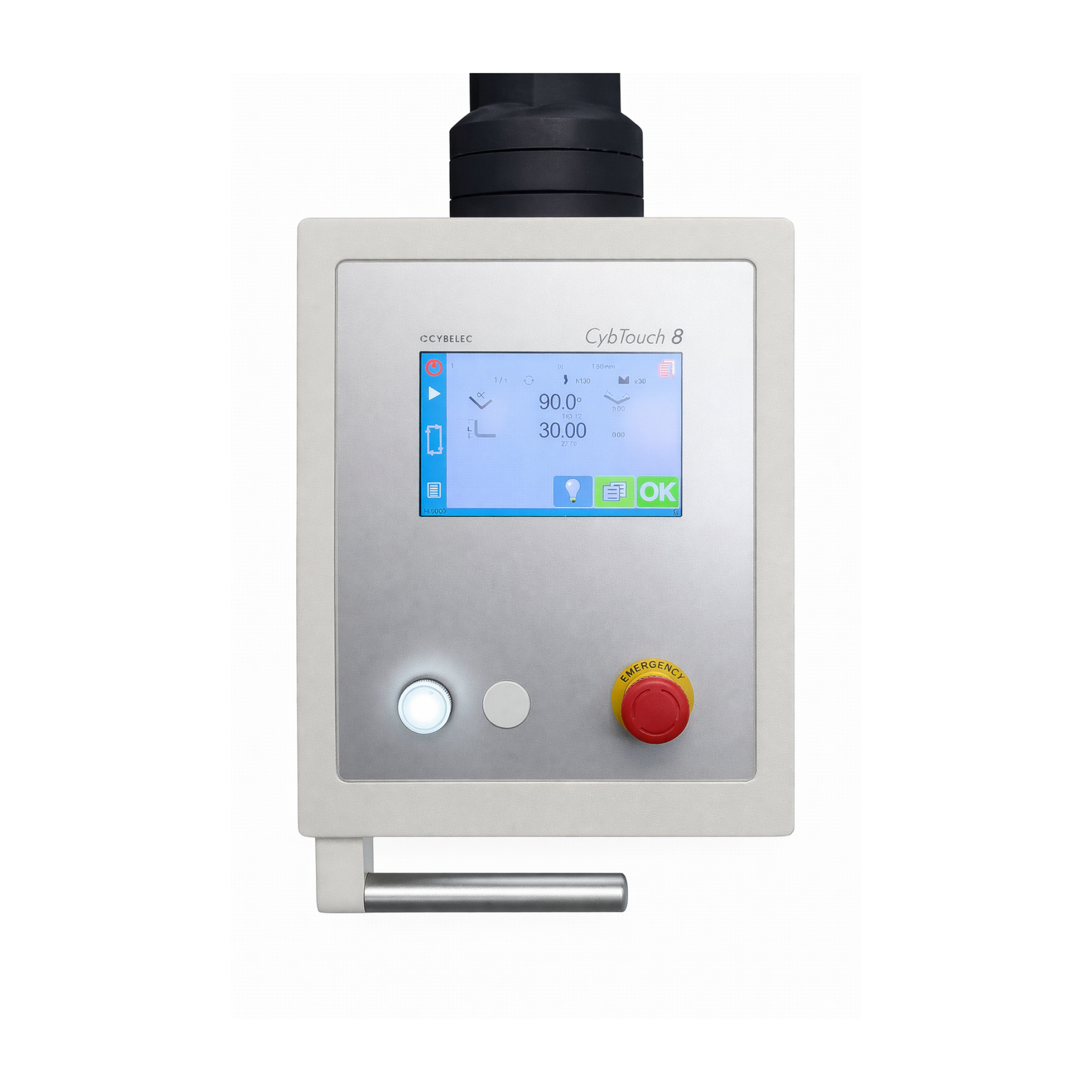

• Controller: CybTouch 8 CNC controller

• Programming: 2D bending simulation and automatic angle calculation

• Axis Configuration: 2-axis CNC (X + Y)

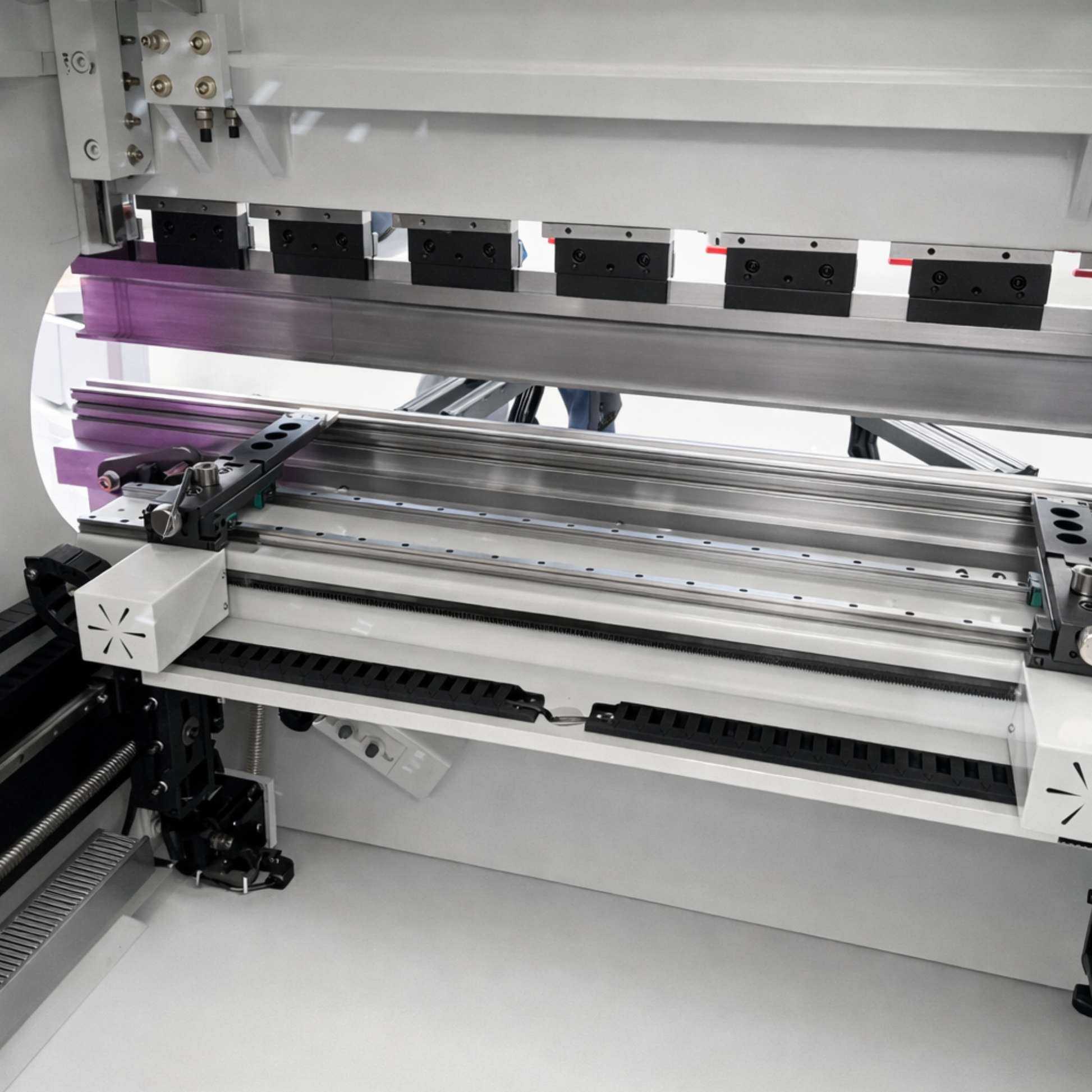

• X-Axis: CNC backgauge with 600 mm travel

• Y-Axis: CNC-controlled ram stroke

🏗️ Build Quality & Components

• Frame: Full welded steel frame structure

• Hydraulic System: Rexroth hydraulic components

• Guide Rails: HIWIN precision linear guides

• Backgauge Fingers: Hardened for repeatable production work

🧰 Best For

• Small to mid-size fabrication shops

• HVAC and ductwork fabrication

• Automotive and custom metal shops

• Job-shop bending and short-run production

• Shops without access to 3-phase power

🚚 Delivery & Warranty

• Delivery Time: 45–50 days

• Shipping: Included

• Warranty: 1-year parts warranty
