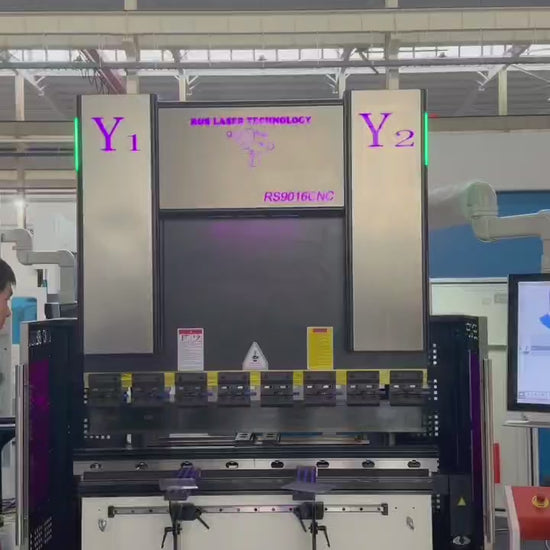

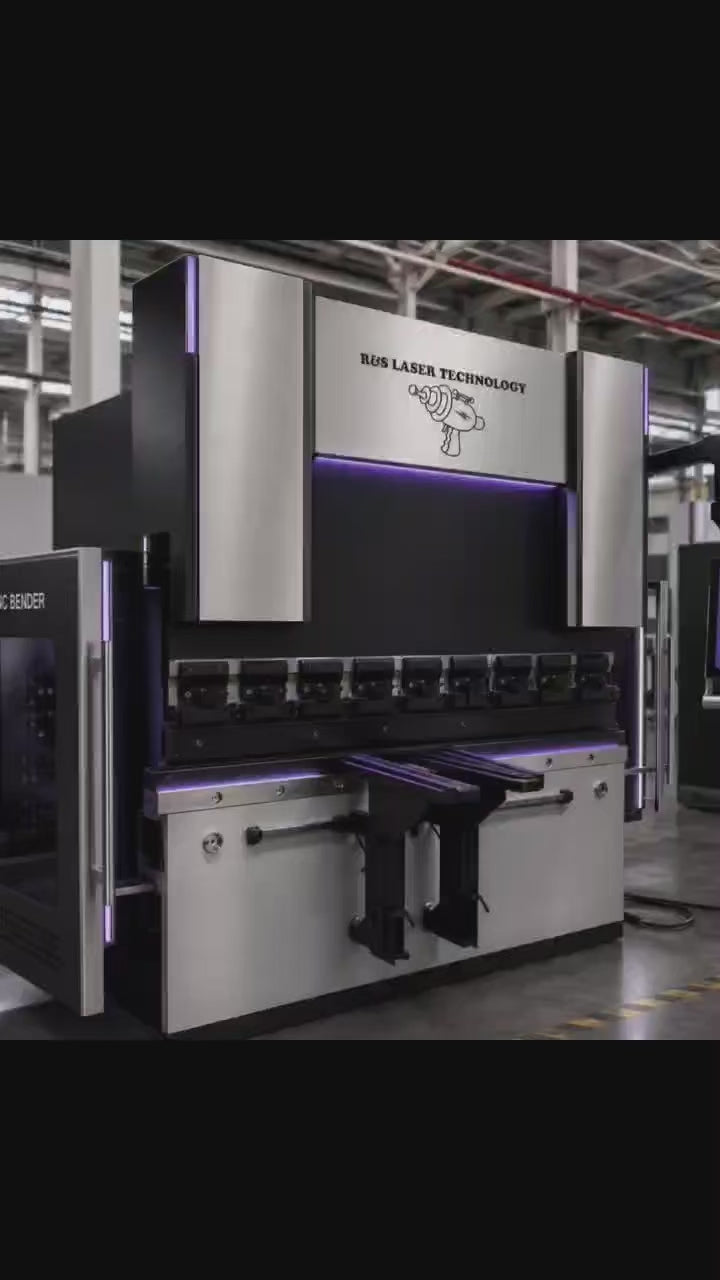

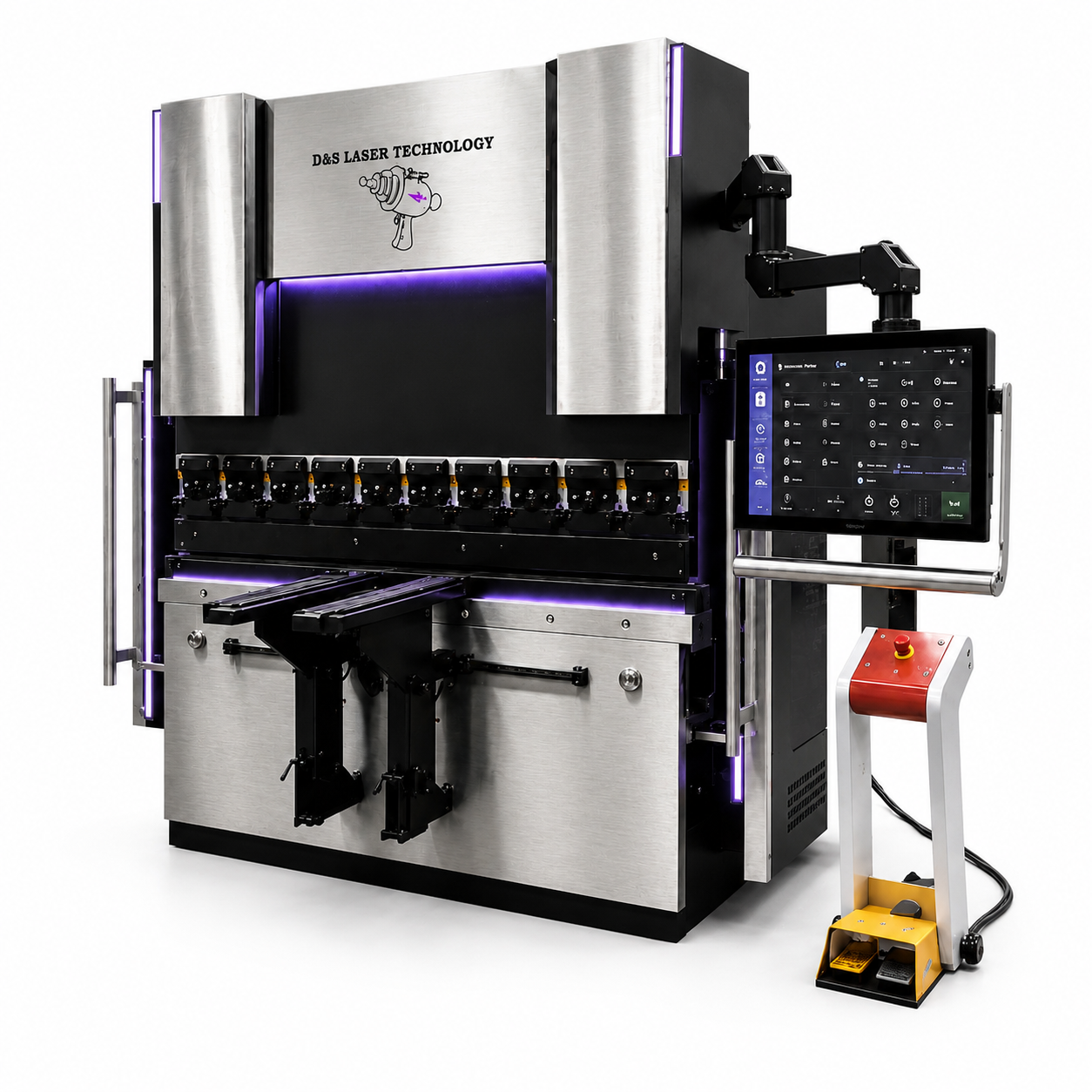

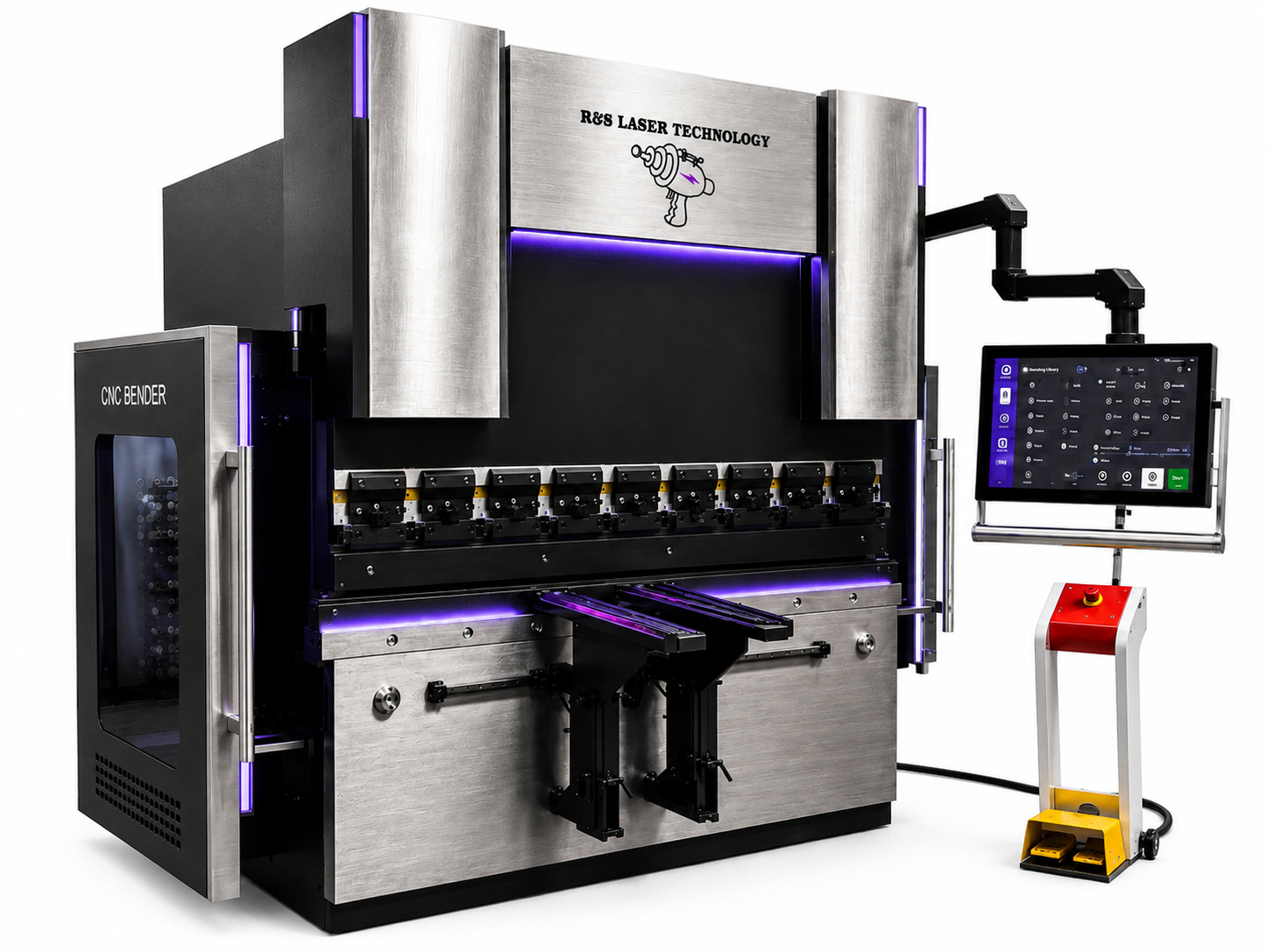

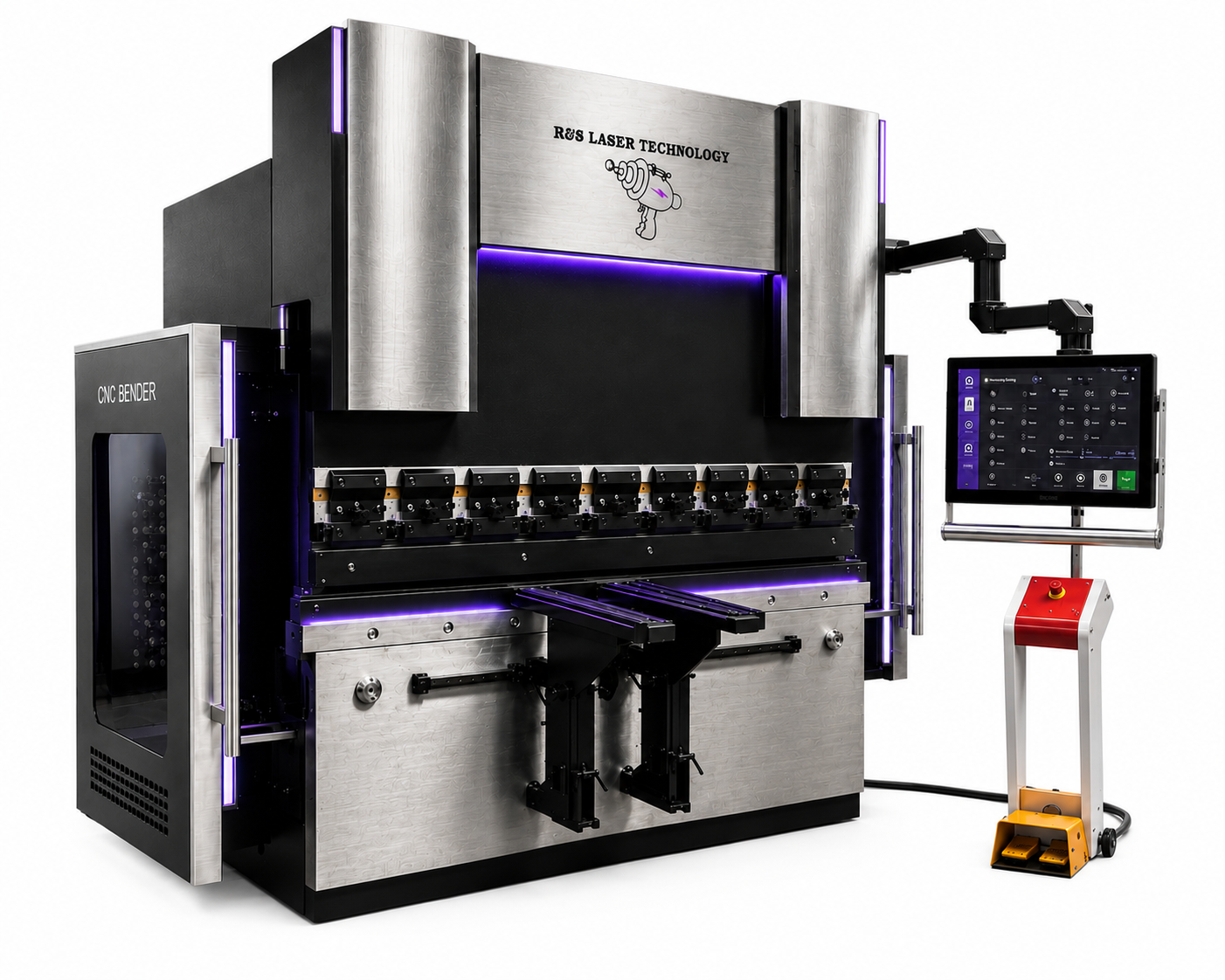

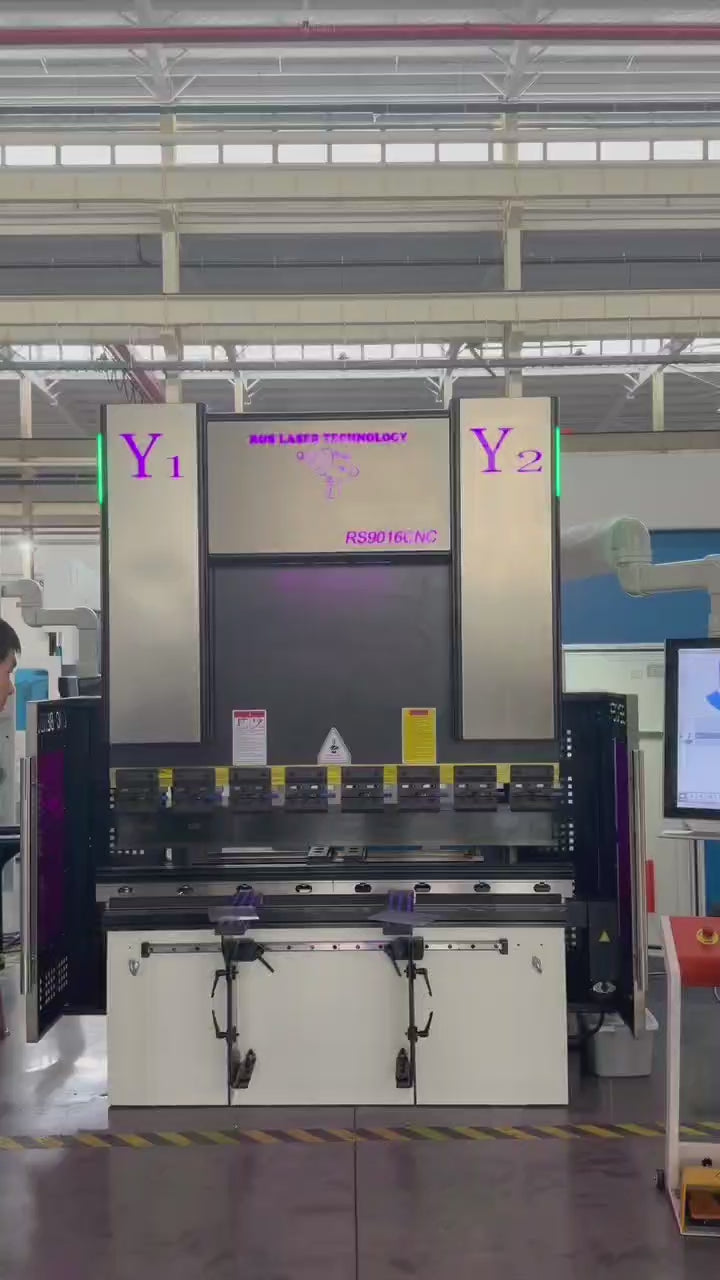

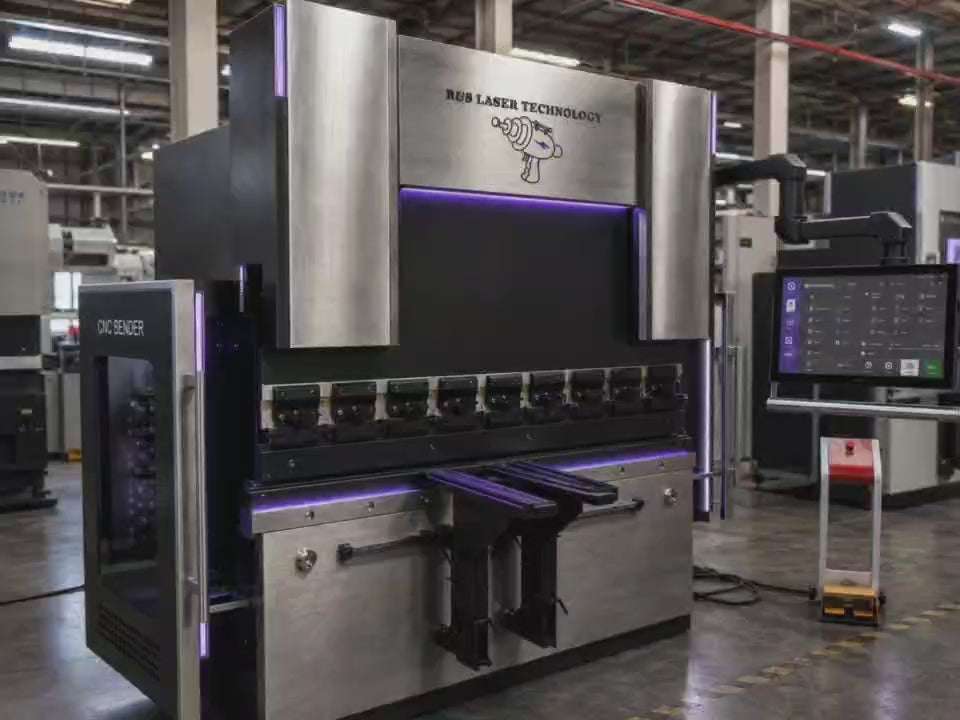

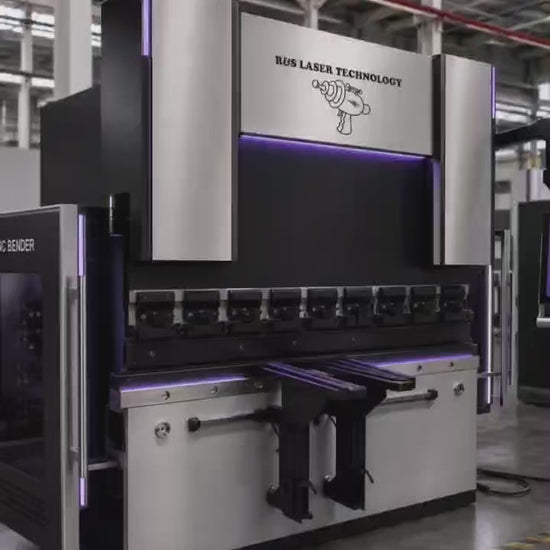

90 TON x 5 FT CNC PRESS BRAKE

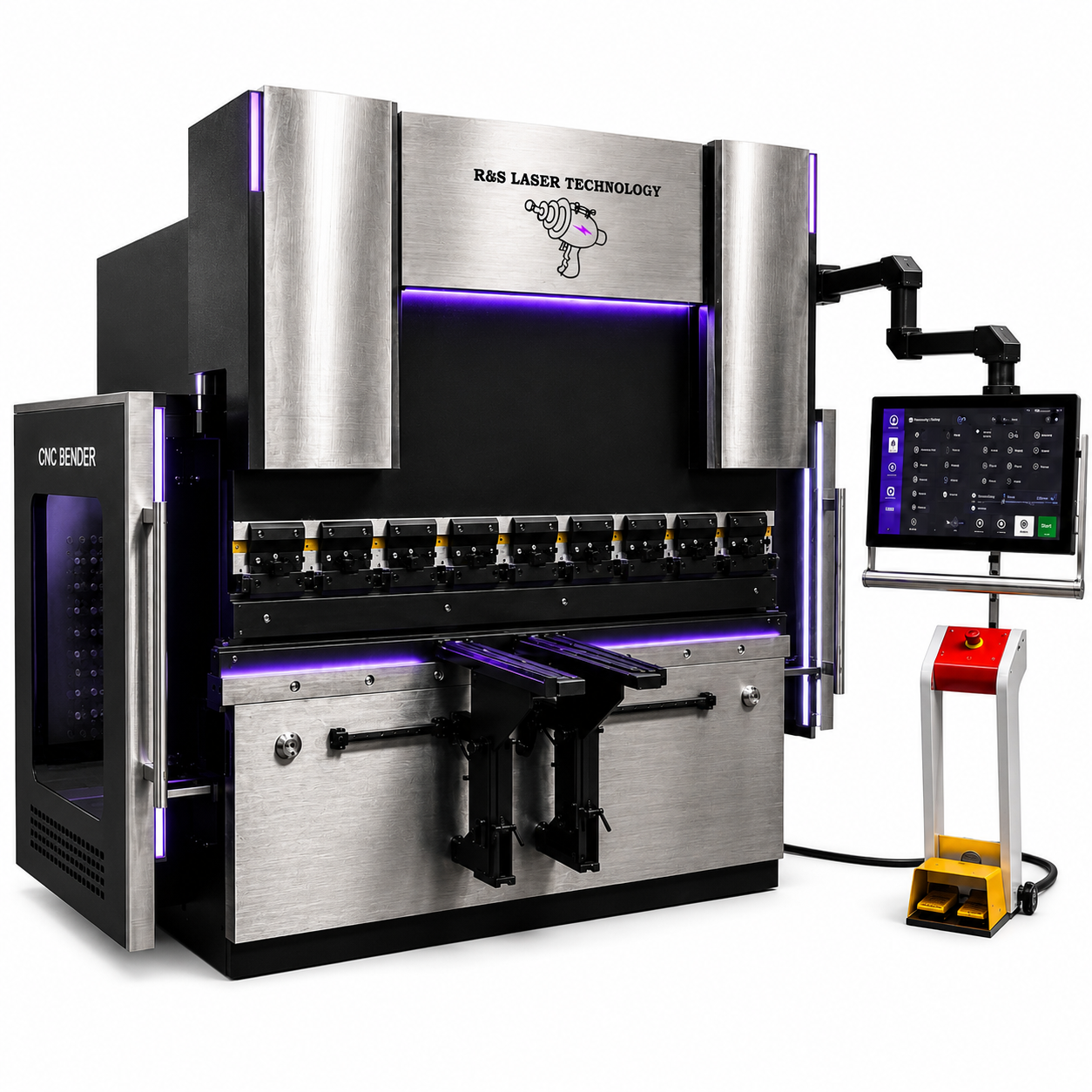

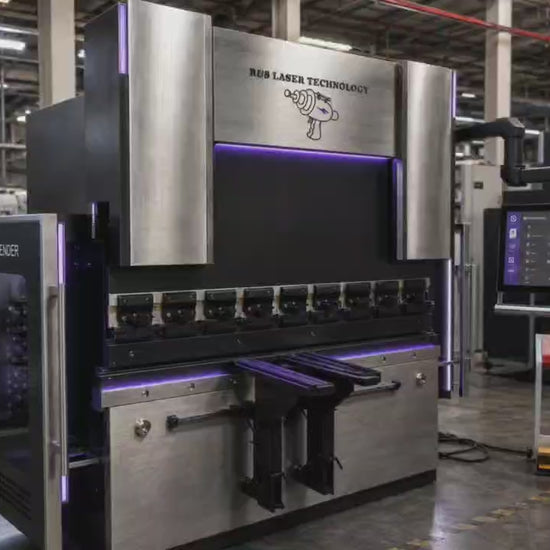

RS90TCNC — 90 Ton CNC Hydraulic Press Brake (5 FT / 1600mm) | 3-Phase

⚙️ High-Precision CNC Press Brake for Serious Fabrication

Step into faster setup times, smarter bending automation, and superior repeatability with the RS90TCNC 90 Ton CNC Hydraulic Press Brake. Built for production environments, this machine combines industrial hydraulic power with the advanced DE930 2D/3D CNC controller, giving operators automatic bend sequencing, collision detection, 3D simulation, and intelligent CNC programming. Designed to reduce setup time, improve accuracy, and maximize throughput for modern fabrication shops.



📐 Machine Specifications

• Model: RS90TCNC

• Machine Type: CNC Hydraulic Press Brake

• Bending Capacity: 90 Ton

• Working Length: 5 FT (1600 mm)

• Distance Between Frames: 1300 mm

• Open Height: 15.75 in (400 mm)

• Stroke: 7.87 in (200 mm)

• Throat Depth: 12.6 in (320 mm)

• Ram Accuracy: ±0.0004 in (±0.01 mm)

• Backgauge Accuracy: ±0.0004 in (±0.01 mm)

• Machine Weight: Approx. 8,000 lbs (3,630 kg)



⚡ Power & Electrical

• Voltage: 220V / 3-Phase / 60Hz

• Main Motor: 7.5 HP (5.5 kW)

• Hydraulic System: Industrial-grade CNC hydraulic operation



🧠 Motion & Control

• Controller: DE930 Advanced 2D & 3D CNC Controller

• Programming: Direct CNC programming + automatic program generation

• File Import: STEP (.STEP / .STP) + DXF (.DXF)

• Monitoring: Real-time machine monitoring & diagnostics

• Connectivity: USB support for file transfer and backup

• Software: Program backup, restore, and upgrade capability



🏗️ 3D Programming & Automation

• Direct STEP File Import

• Automatic Thickness Detection

• Automatic Flat Pattern Generation

• Automatic Bend Recognition

• Automatic Bend Sequence Calculation

• Automatic CNC Program Generation

• Real-Time 3D Part Visualization

• Step-by-Step Bend Simulation



🎯 CNC Backgauge System

• Axis Control: X Axis, R Axis, Z1 Axis, Z2 Axis

• Features: Automatic stop finger calculation & positioning optimization

• Support: Manual adjustment capability + multi-part support



🛡️ Collision Detection System

Real-time collision monitoring between:

• Workpiece

• Punch

• Die

• Machine Frame

• Backgauge Fingers

Potential collisions are automatically identified before production begins to reduce operator error and prevent machine damage.



👀 Full 3D Simulation

Preview the complete bend sequence before production.

Includes:

• Machine Frame

• Ram

• Punch

• Die

• Workpiece

• Backgauge Fingers

Functions Include:

• Rotate

• Pan

• Zoom

• Flat Pattern View

• 2D View

• 3D View

• Step-by-Step Bend Preview



🔧 Tool Library Management

Store and recall tooling setups instantly for faster production changes.

Punch Information

• Tool Name

• Length

• Angle

• Radius

• Height

• Orientation

Die Information

• Die Name

• V Opening

• Radius

• Height

• Position

• Length



🔄 Large Radius Bending

Create large-radius bends using standard tooling.

Benefits

• Lower Tooling Cost

• Increased Flexibility

• Expanded Production Capability



🏭 Material Database

Supports:

• Mild Steel

• Stainless Steel

• Aluminum

• Galvanized Steel

• Custom Materials

Adjustable Parameters

• Thickness

• K-Factor

• Bend Allowance

• Material Properties



🏗️ Industry Applications

• General Fabrication

• Electrical Enclosures

• Cabinets

• Agricultural Equipment

• Aerospace Components

• Architectural Metalwork

• HVAC Manufacturing

• Sign Manufacturing

• Automotive Components



✅ Standard Equipment Included

• DE930 2D/3D CNC Controller

• Industrial Touchscreen Display

• USB Port

• CNC Backgauge System

• Automatic Bend Sequencing

• Collision Detection

• Full 3D Simulation

• Tool Library Software

• Material Library

• Operator Manual

• Remote Technical Support



🚚 Delivery & Warranty

• Delivery Time: 45 Days From Time of Order

• Warranty: 2-Year Parts Warranty

All RS90TCNC press brakes include a comprehensive 2-year parts warranty covering manufacturing defects and component failures under normal operating conditions.

Machines are built to order and shipped directly from the factory to ensure maximum quality, precision, and performance.
