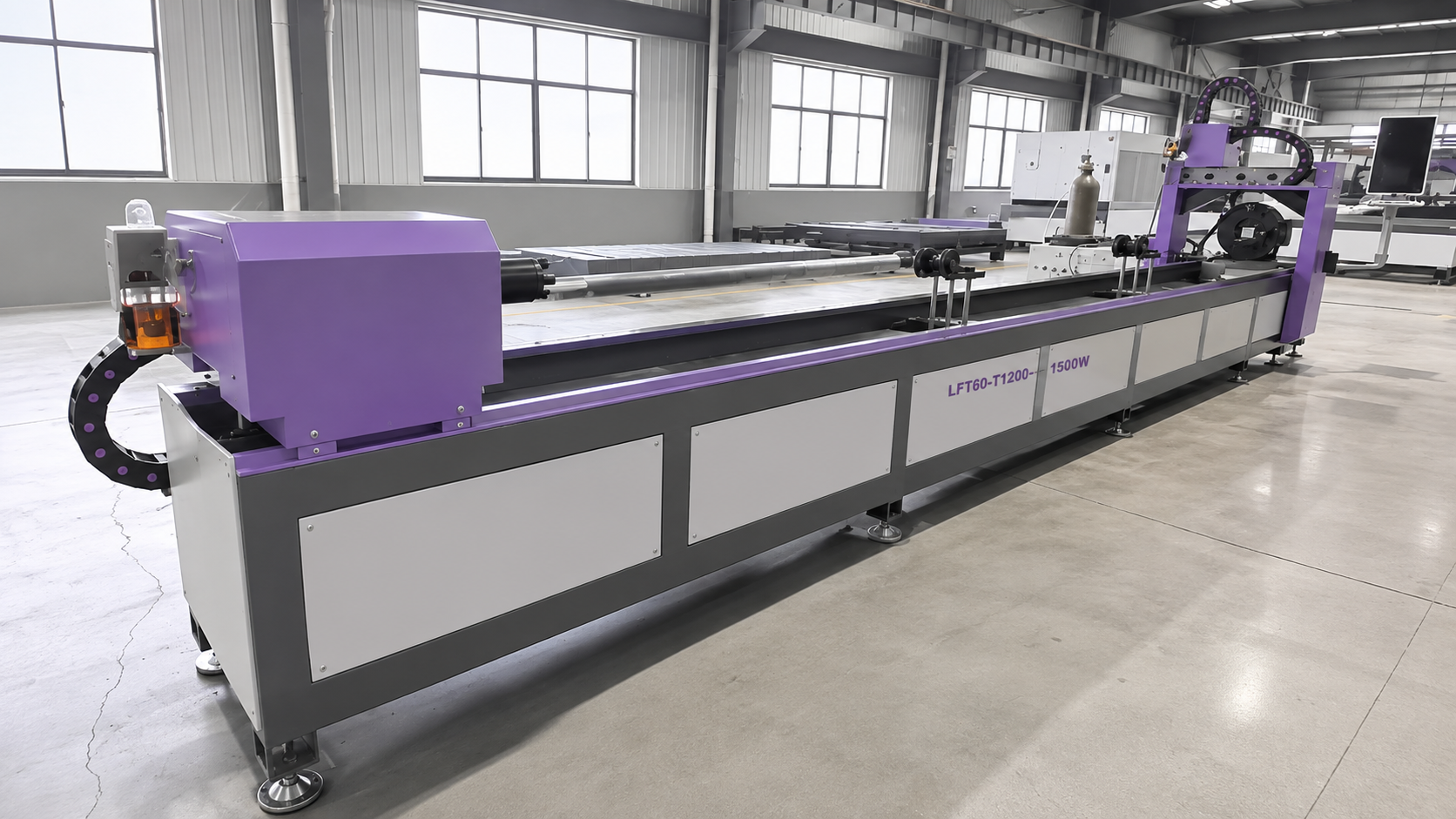

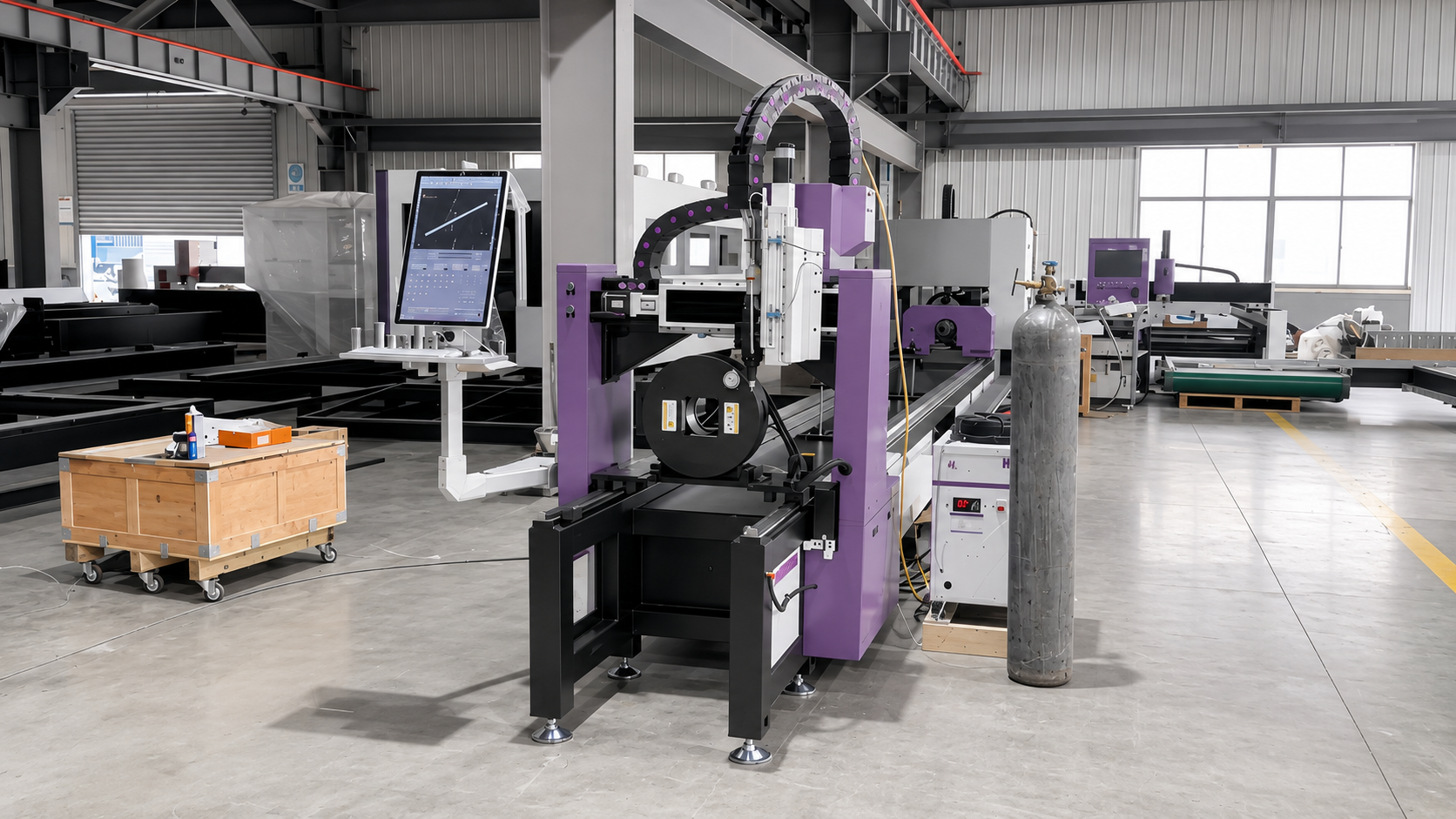

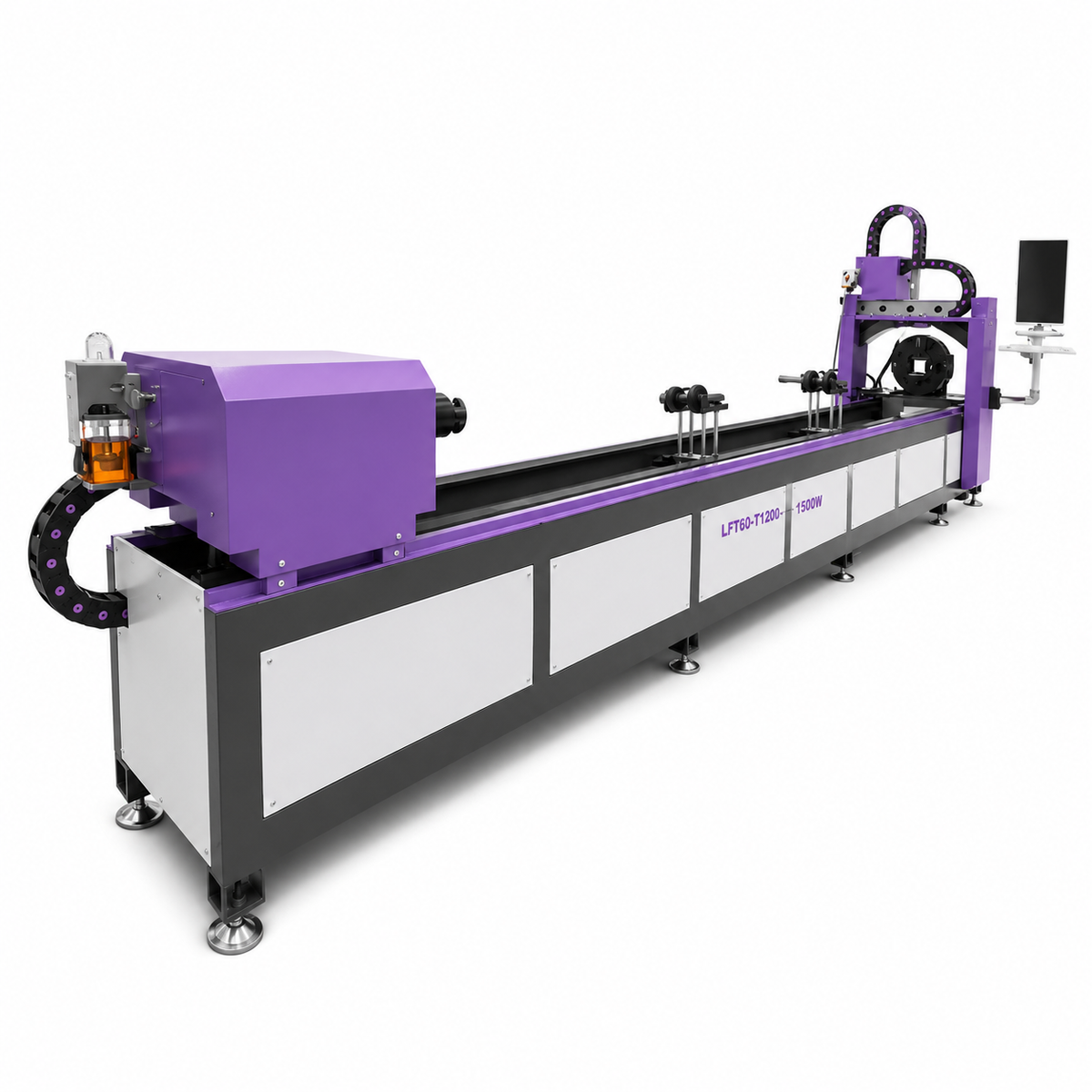

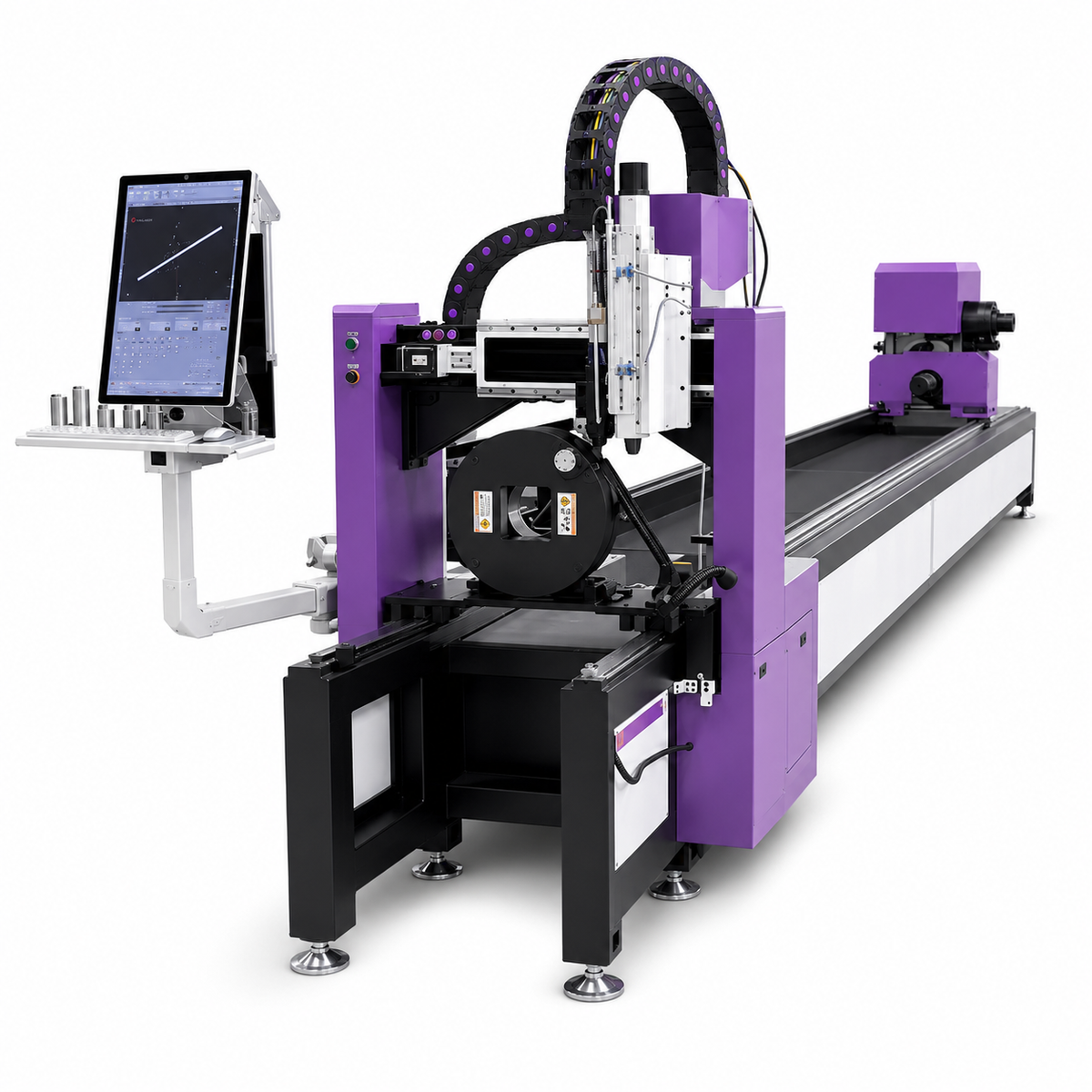

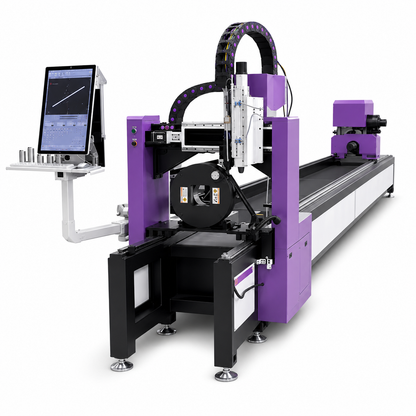

ECO 1.5 — 2000W Fiber Laser Tube Cutter | 20 FT

⚙️ Precision Tube Cutting Made Affordable.

The ECO 1.5 by R&S Laser Technology is a professional-grade 20-foot fiber laser tube cutter engineered to deliver industrial cutting performance at an exceptional value. Equipped with a 2000W MAX fiber laser source, Auto-focus cutting head, Inovance digital servo motors, and a Hanli industrial water chiller, the ECO 1.5 provides fast, accurate, and repeatable tube cutting for demanding production environments.

Designed for fabrication shops, manufacturers, and production facilities, the ECO 1.5 handles round, square, rectangular, oval, and structural profiles with outstanding edge quality, high cutting speeds, and dependable reliability. Available in both single-phase and three-phase configurations, it integrates easily into shops of virtually any size.

---

📐 Cutting Performance & Capability

• Laser Power: 2000W Fiber Laser

• Working Length: 20 ft (6 m)

• Tube Types: Round, square, rectangular, oval, and structural profiles

• Chuck Diameter: 4.87” (124 mm) pneumatic chuck

• Positioning Accuracy: ±0.05 mm

• Repeat Positioning Accuracy: ±0.03 mm

• High-speed precision tube processing

---

⚡ Power & Electrical

• Power Options: Single-Phase or Three-Phase

• Cooling System: Hanli Industrial Water Chiller

• Designed for continuous production environments

---

🧠 Laser System & Control

• Laser Source: MAX Fiber Laser

• Laser Head: Auto-Focus Cutting Head

• Control Software: Raytools

• Servo Motors: Inovance Digital Servo System

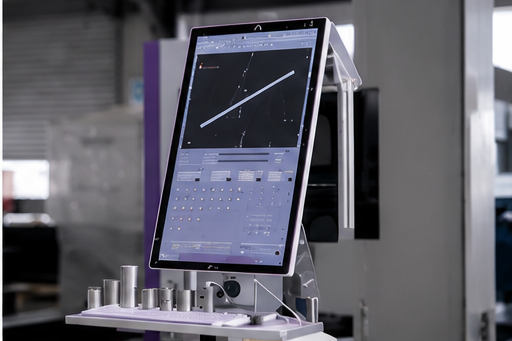

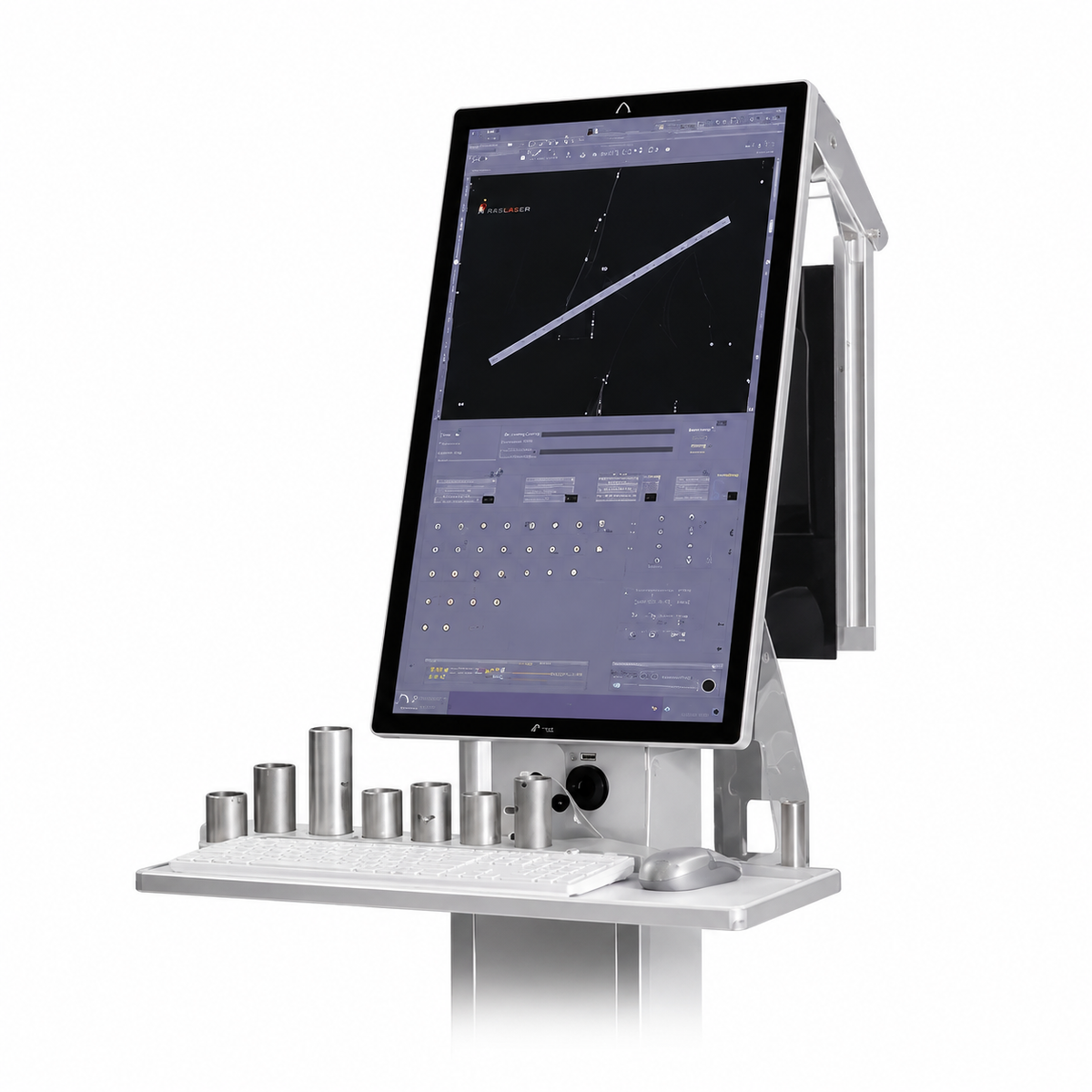

• User-friendly touchscreen controls

• Automatic lubrication system

---

🏗️ Machine Construction

• Industrial welded steel frame

• Precision rack-and-pinion motion system

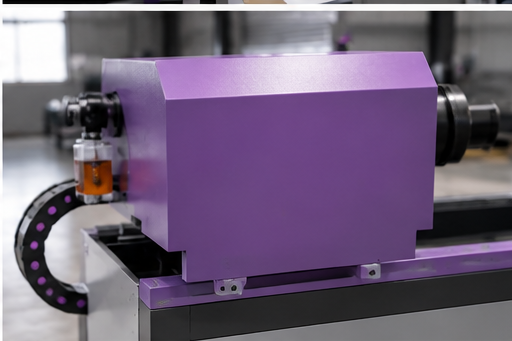

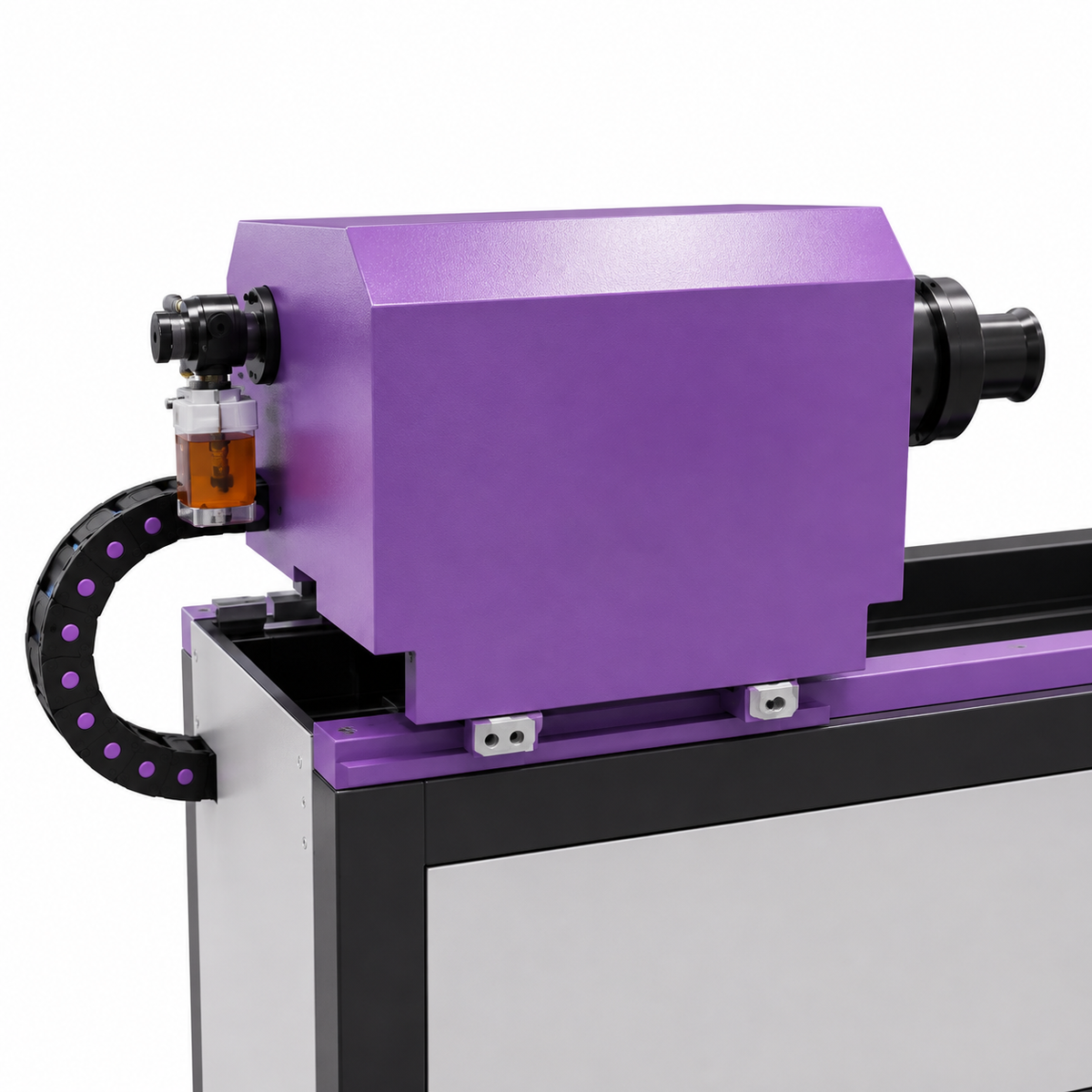

• Automatic pneumatic chuck system

• Auto-focus cutting technology

• Low-maintenance fiber laser design

• Built for continuous industrial production

---

🔩 Compatible Materials

• Mild Steel

• Stainless Steel

• Aluminum

• Galvanized Steel

• Brass

• Copper (application dependent)

---

🧰 Best For

• Metal fabrication

• Automotive manufacturing

• Furniture manufacturing

• Agricultural equipment

• Handrail and fence production

• Fitness equipment

• Structural steel fabrication

• General manufacturing

---

🚚 Delivery & Warranty

• Delivery Time: Approximately 35 days

• Installation Support: Available

• Training: Available upon request

• Warranty: 1-Year Parts Warranty

Warranty Coverage

• MAX Laser Source

• Autofocus Laser Head

• Mechanical Components

• Electrical Components

---
