Pro 2.0 5x5 Modular Fiber Laser Table 2000W Single Phase

RS Pro 2.0 — 2000W Fiber Laser Table (5’ × 5’) | Single-Phase

⚙️ Compact Precision for Tight Spaces

The RS Pro 2.0 5’ × 5’ Fiber Laser Table is a high-performance, compact cutting system built for precision metal fabrication in space-conscious workshops. Powered by a 2000W fiber laser source and engineered for single-phase 220V operation, this machine delivers true industrial performance without requiring 3-phase infrastructure. Built on the rigid Pro Series 2.0 frame and equipped with Yaskawa servo motors and CypCut control software, it offers fast, accurate, and low-maintenance operation in a compact footprint.

📐 Cutting Area & Performance

• Cut Area: 1300mm × 1300mm (5’ × 5’)

• Laser Power: 2000W fiber laser

• Max Cutting Speed: Up to 37 m/min (on 1mm material)

⚡ Power & Electrical

• Power Supply: Single-phase 220V

• Phase: Single-phase

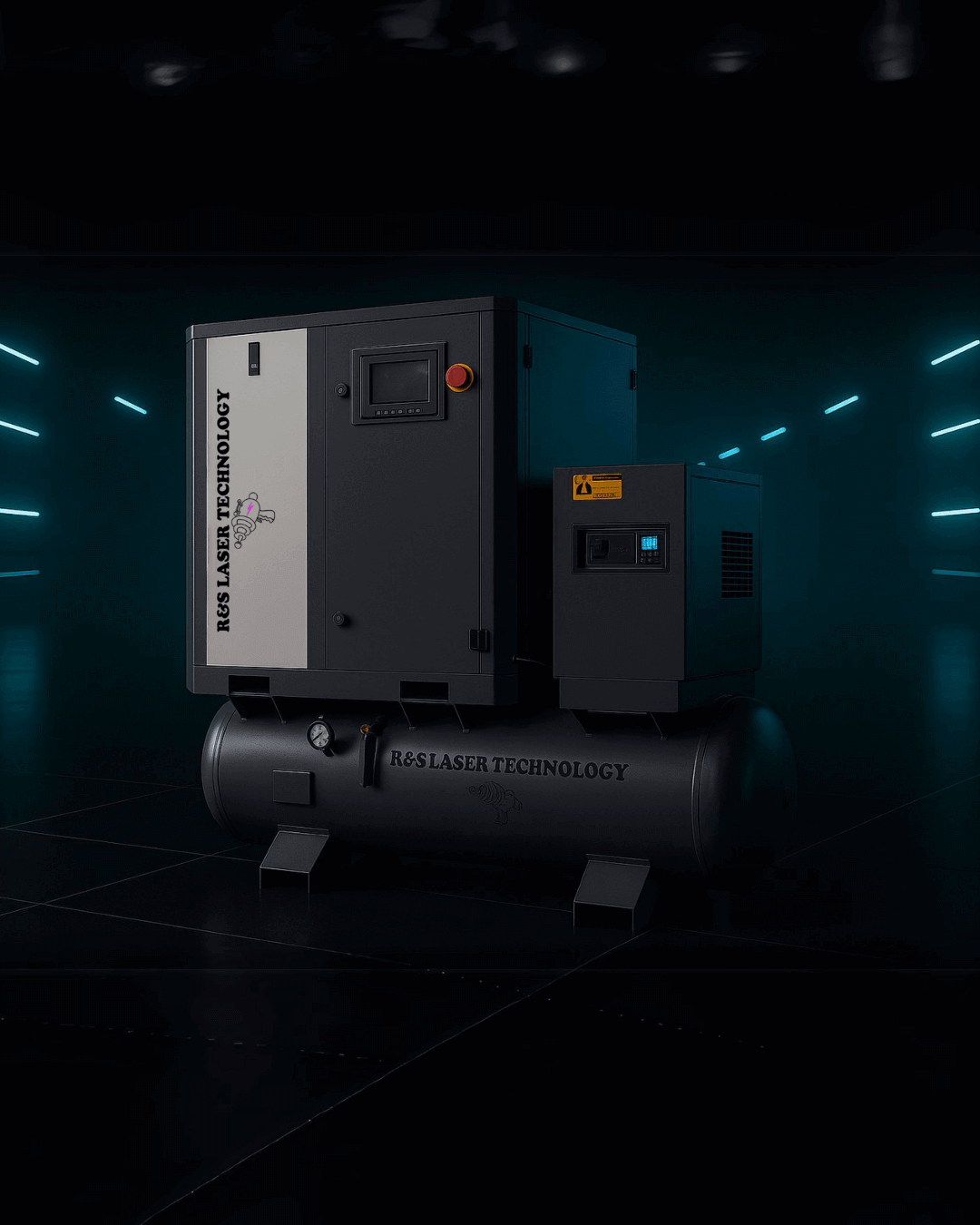

• Amperage: 60 AMPS for table / 125 AMPS with compressor

🧠 Motion & Control

• Controller: CypCut CNC software

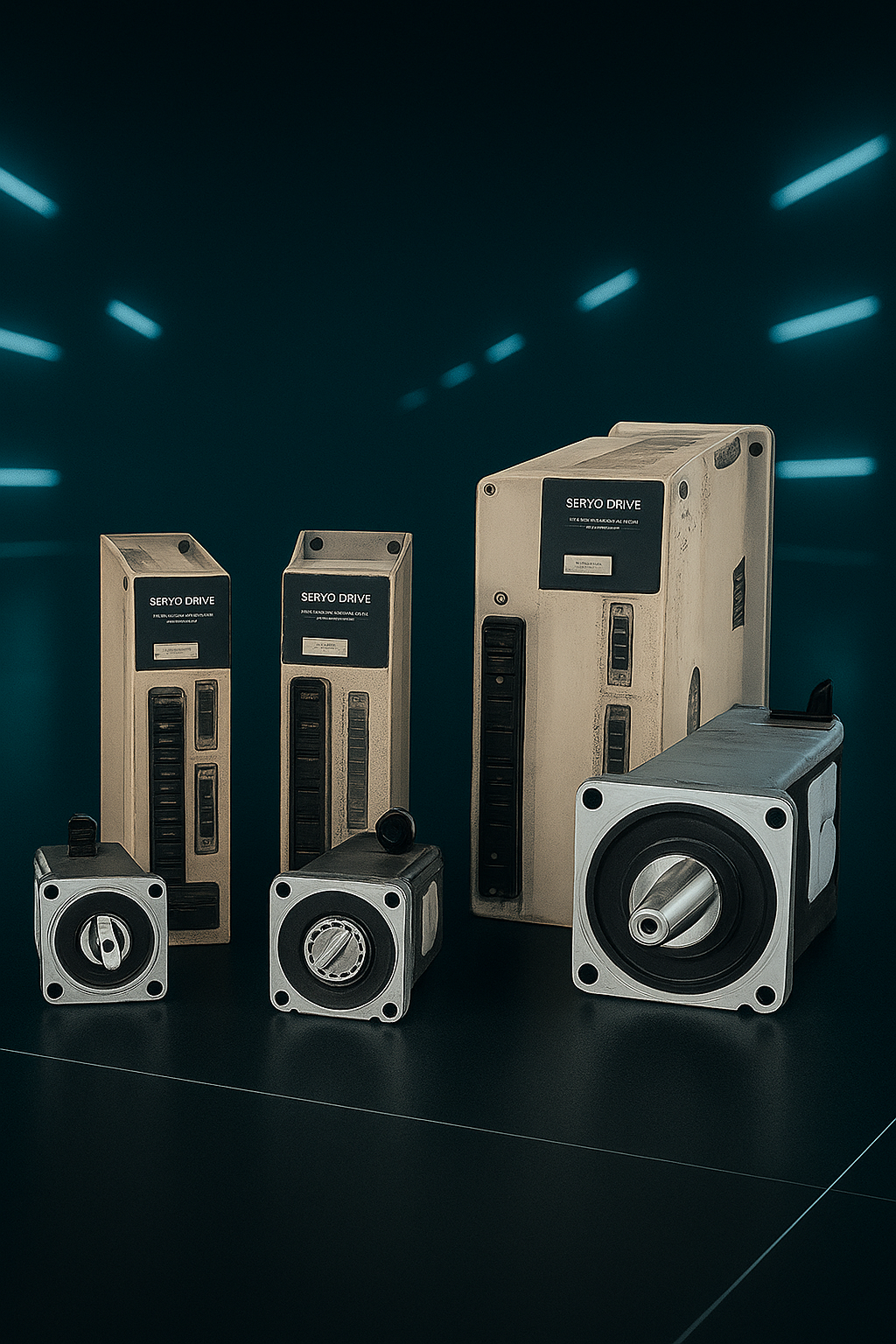

• Drive System: Rack-and-pinion with Yaskawa servo motors

• Servo Motors: Yaskawa (Japan)

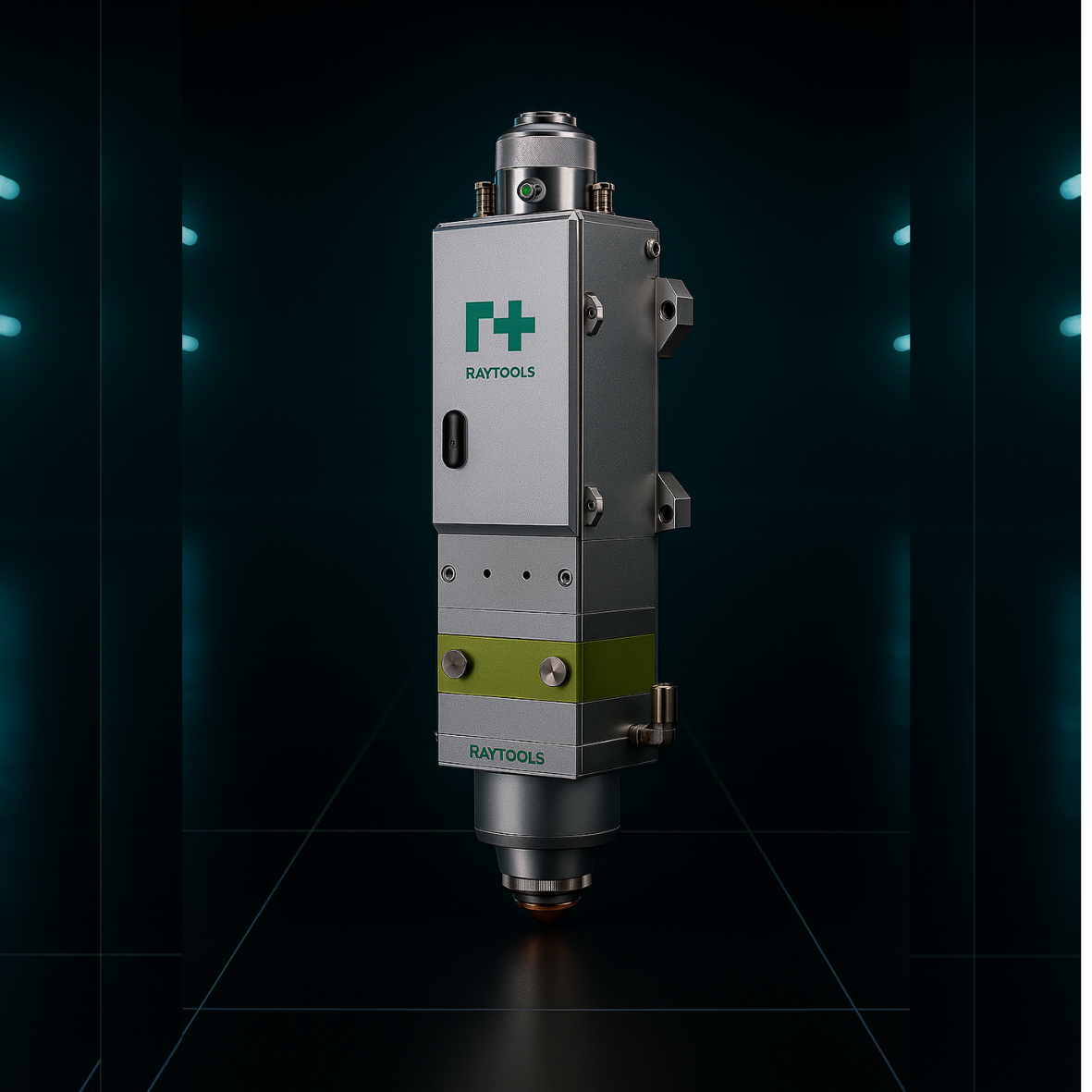

• Laser Head: Raytools auto-focus (compatible)

🧊 Cooling

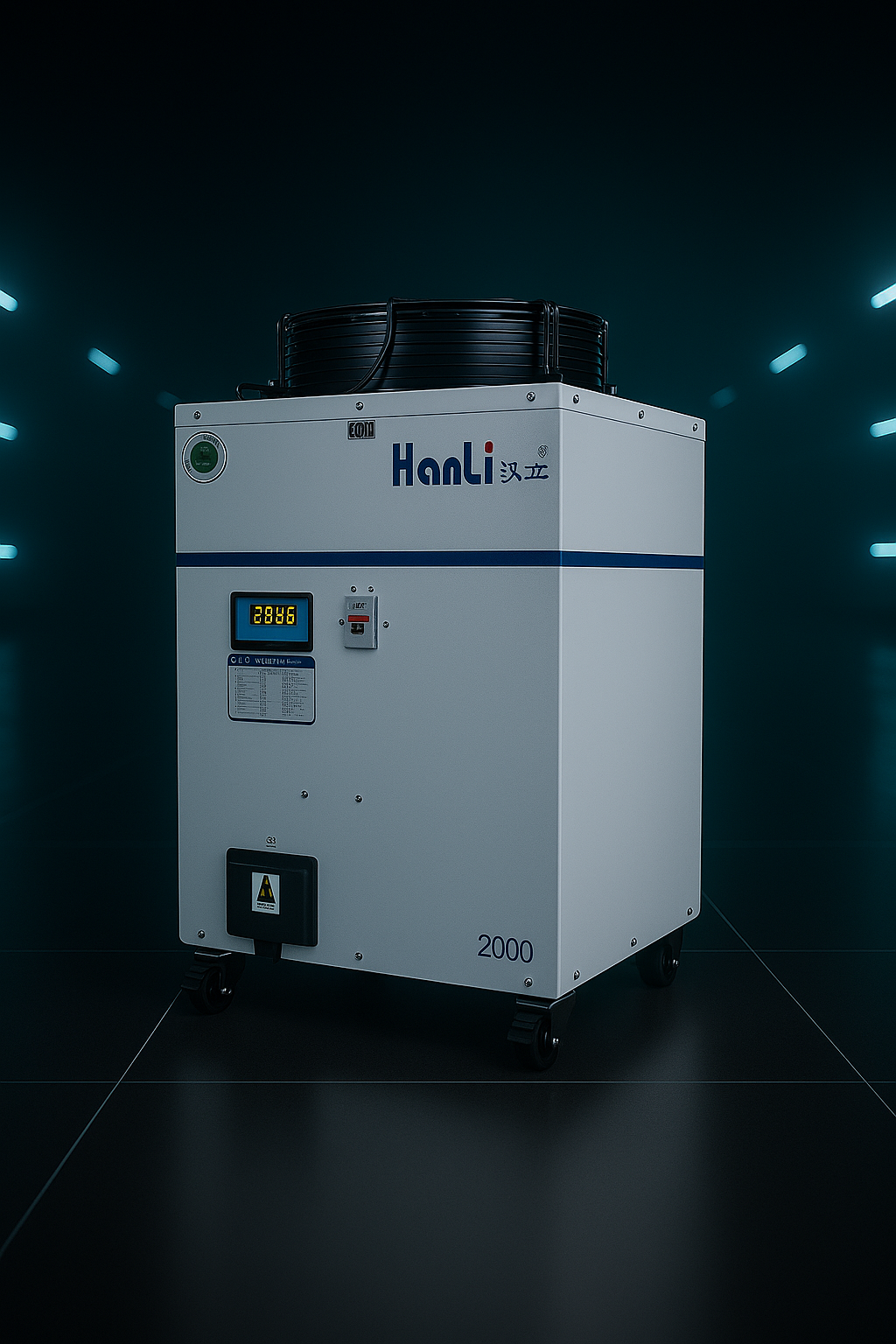

• Cooling System: Air-cooled or water-cooled (depending on configuration)

🏗️ Build Quality

• Frame Construction: Heavy-duty Pro Series 2.0 design

🚚 Delivery & Warranty

• Delivery Time: 40–45 days

• Warranty: 2-year parts warranty including laser source and laser head
