Precision Press Brake Tooling for Professional Sheet Metal Fabrication

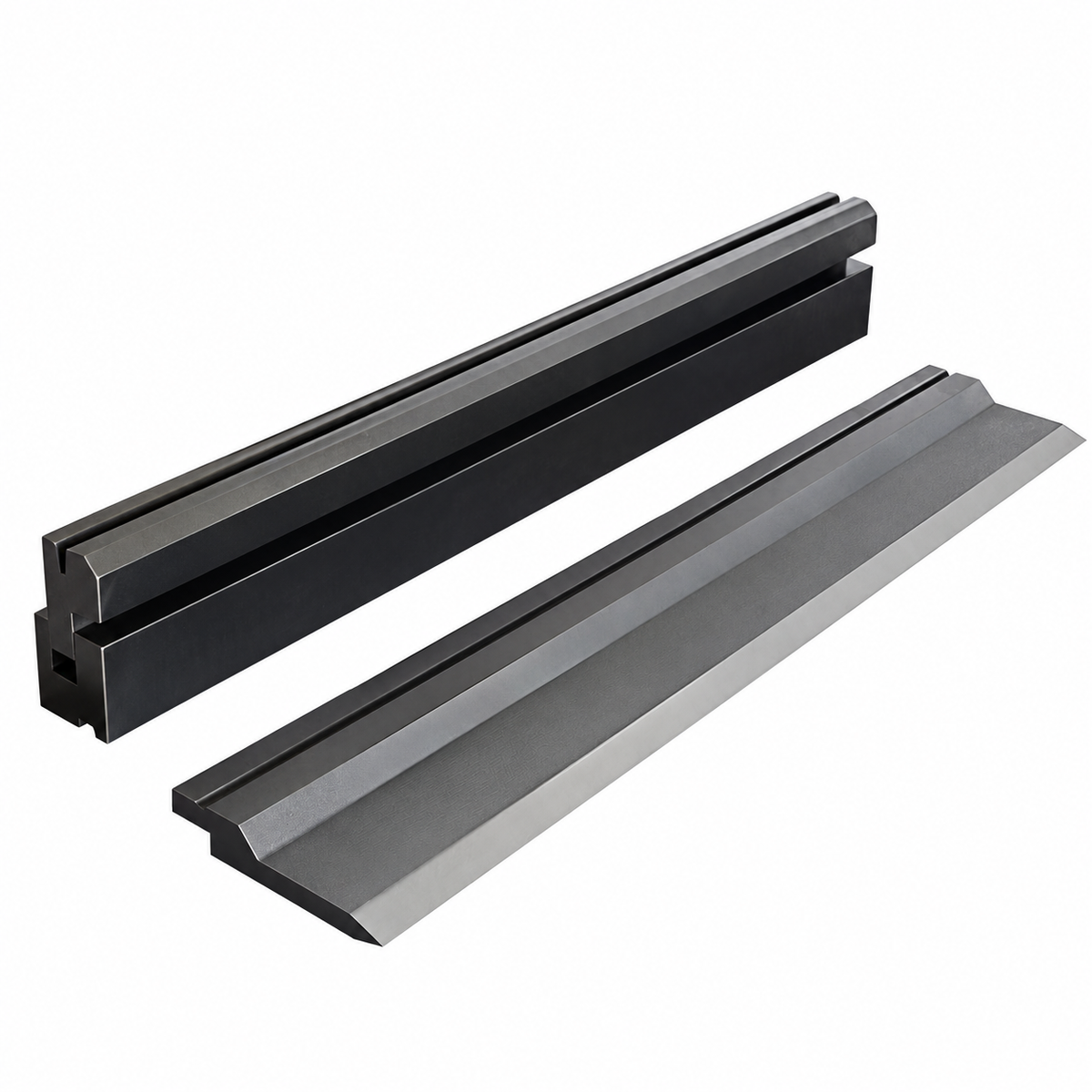

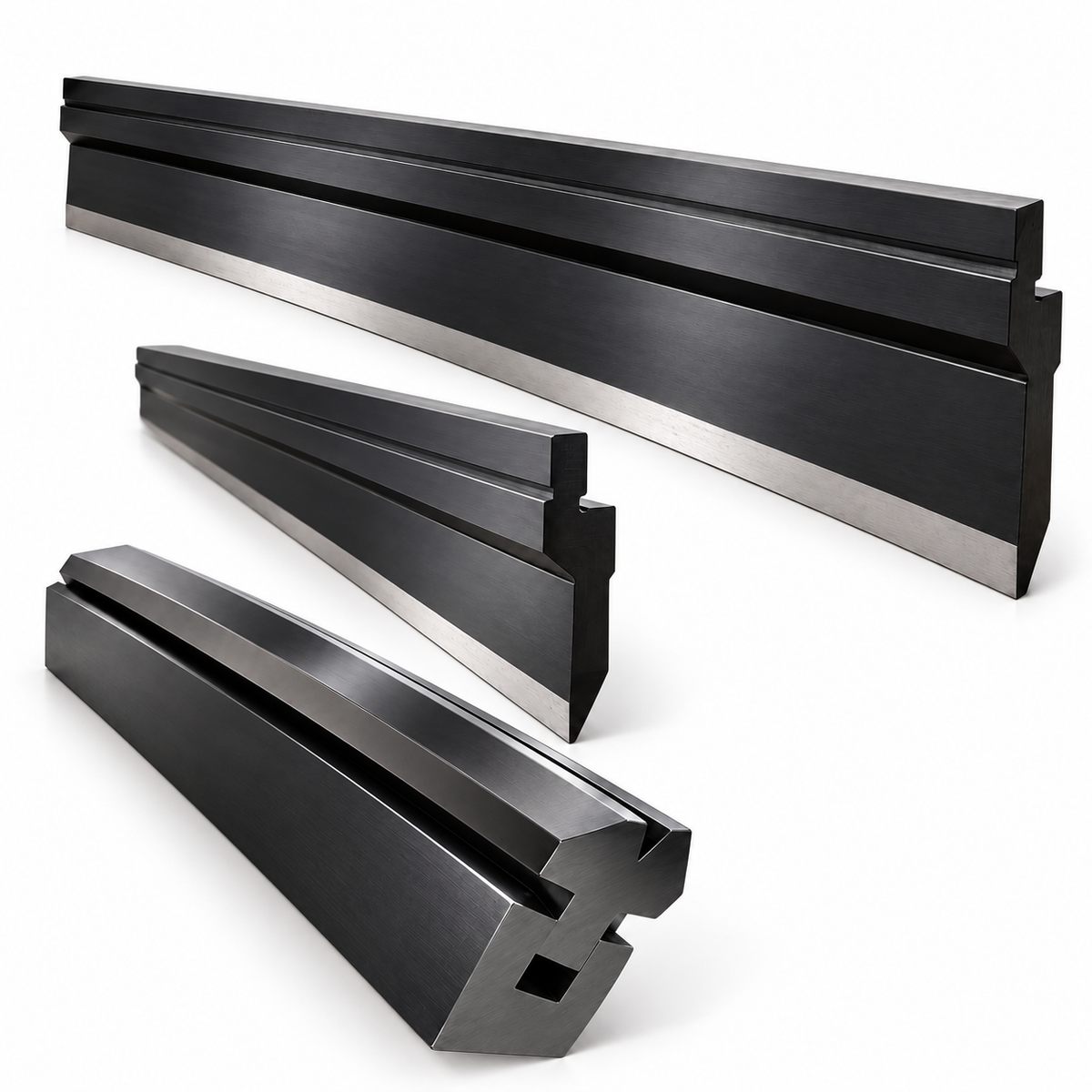

Achieve accurate bends, clean folded edges, and consistent hemming results with the R&S Laser Technology 5FT Press Brake Hemming Die & 30° Punch Set. Engineered for professional sheet metal fabrication, this precision tooling combination features a 30° acute-angle upper punch and a specialized lower combination V-die and hemming die. Designed for durability, repeatability, and efficient operation, this 5-foot tooling set allows operators to perform initial bending and final hemming operations with professional precision. Compatible with all R&S Laser Technology press brakes.

Tooling Specifications

Brand: R&S Laser Technology
Product Type: Press Brake Hemming Die & 30° Punch Set
Tooling Configuration: Upper 30° Punch + Lower Combination V-Die/Hemming Die
Tooling Length: 5 FT (60 inches / 1524 mm)
Upper Punch Angle: 30°
Lower Die V-Angle: 30°
Lower Die V-Opening: 12 mm
Application: Acute-Angle Bending & Sheet Metal Hemming
Compatibility: All R&S Laser Technology Press Brakes

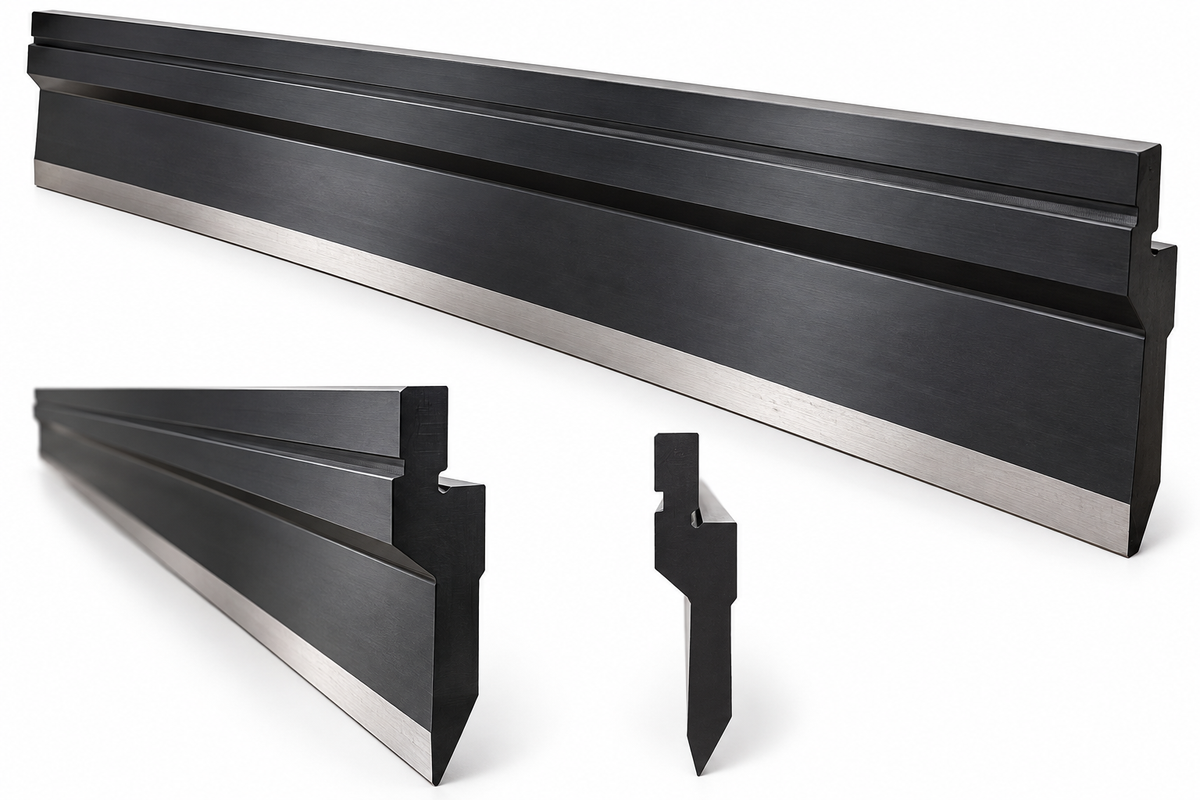

Upper Punch Specifications

Punch Type: 30° Precision Hemming Punch
Overall Height: 150 mm
Upper Mounting Width: 13 mm
Maximum Body Width: 26 mm
Lower Body Width: 17 mm
Tip Angle: 30°
Tooling Length: 5 FT (1524 mm)
Design: Precision-Profiled Acute-Angle Punch

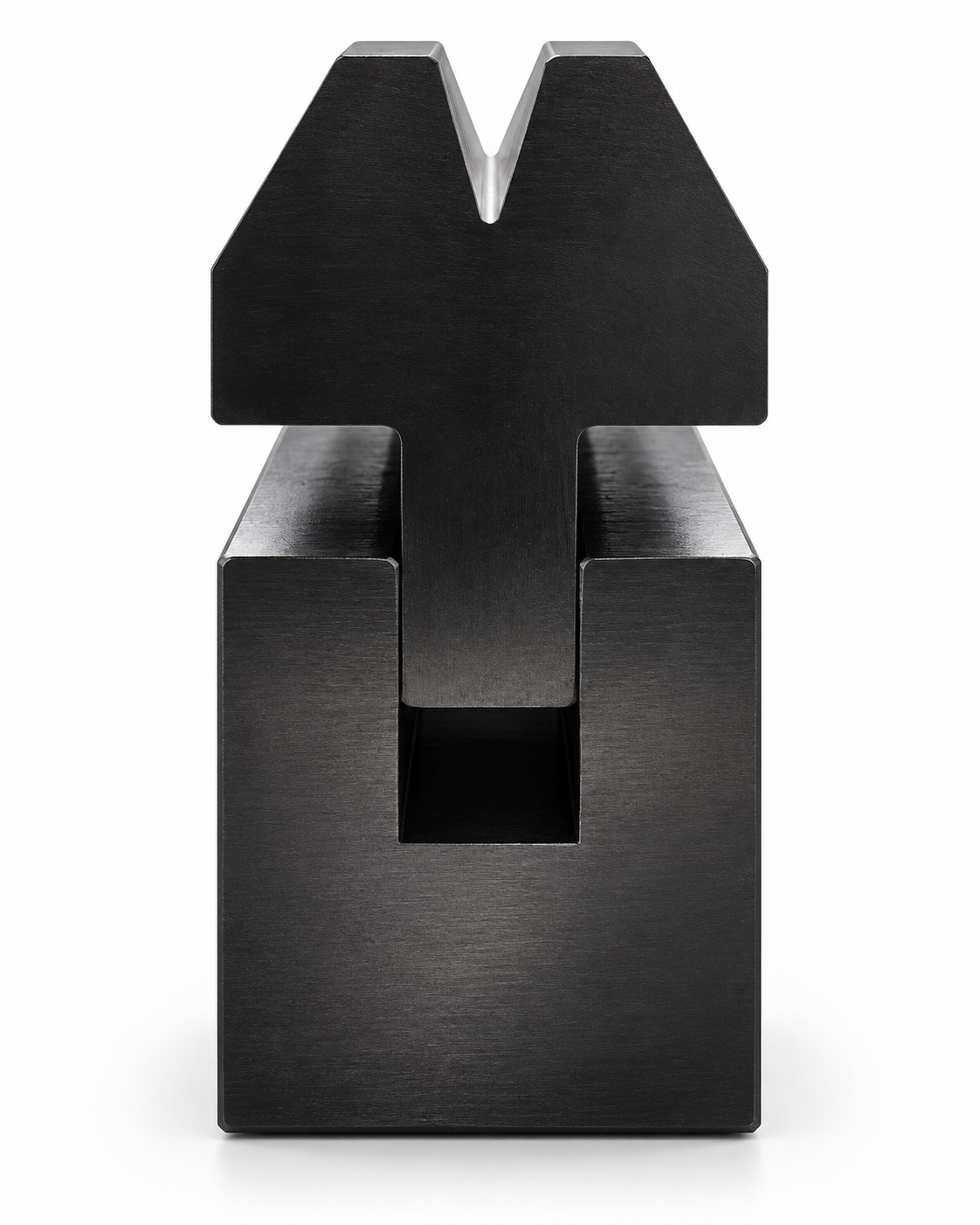

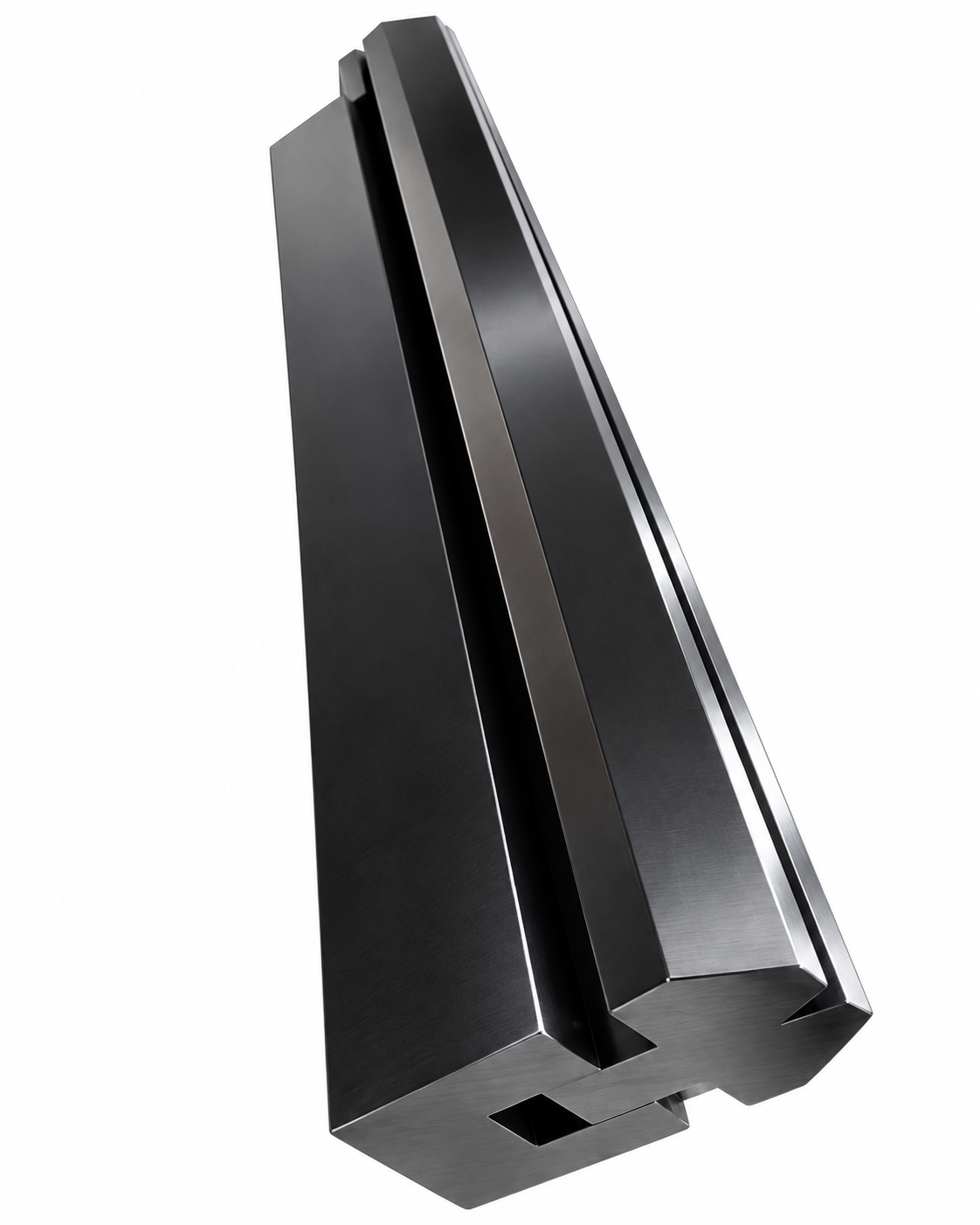

Lower Die Specifications

Die Type: Combination V-Die & Hemming Die
Overall Width: 60 mm
Overall Height: 105 mm
Upper Profile Width: 50 mm
V-Opening: 12 mm
V-Angle: 30°
Base Height: 60 mm
Tooling Length: 5 FT (1524 mm)
Configuration: Integrated V-Bending & Hemming Profile

Precision Bending & Hemming

30° Acute-Angle Bending
Precision Sheet Metal Folding
Flat Hem Formation
Consistent Bend Geometry
Accurate Edge Finishing
Repeatable Bending Performance
Professional-Grade Tooling Design
Full-Length 5FT Bending Capability

Upper Punch Features

30° Precision-Machined Tip
150 mm Overall Height
13 mm Upper Mounting Profile
26 mm Maximum Body Width
17 mm Lower Body Width
Precision-Profiled Geometry
Consistent Acute-Angle Bending
Durable Industrial Construction

Lower Die Features

Integrated Hemming Configuration
30° V-Die Profile
12 mm V-Opening
60 mm Overall Width
105 mm Overall Height
50 mm Upper Profile Width
Combination Bending & Hemming Functionality
Full 5FT Tooling Length

Two-Stage Hemming Process

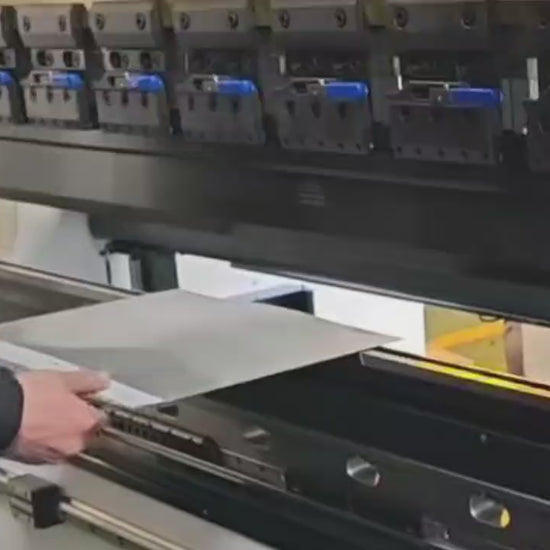

Step 1 – Initial Bend

Position the sheet metal between the 30° upper punch and the lower V-die.

Apply controlled pressure to create the initial acute-angle bend.

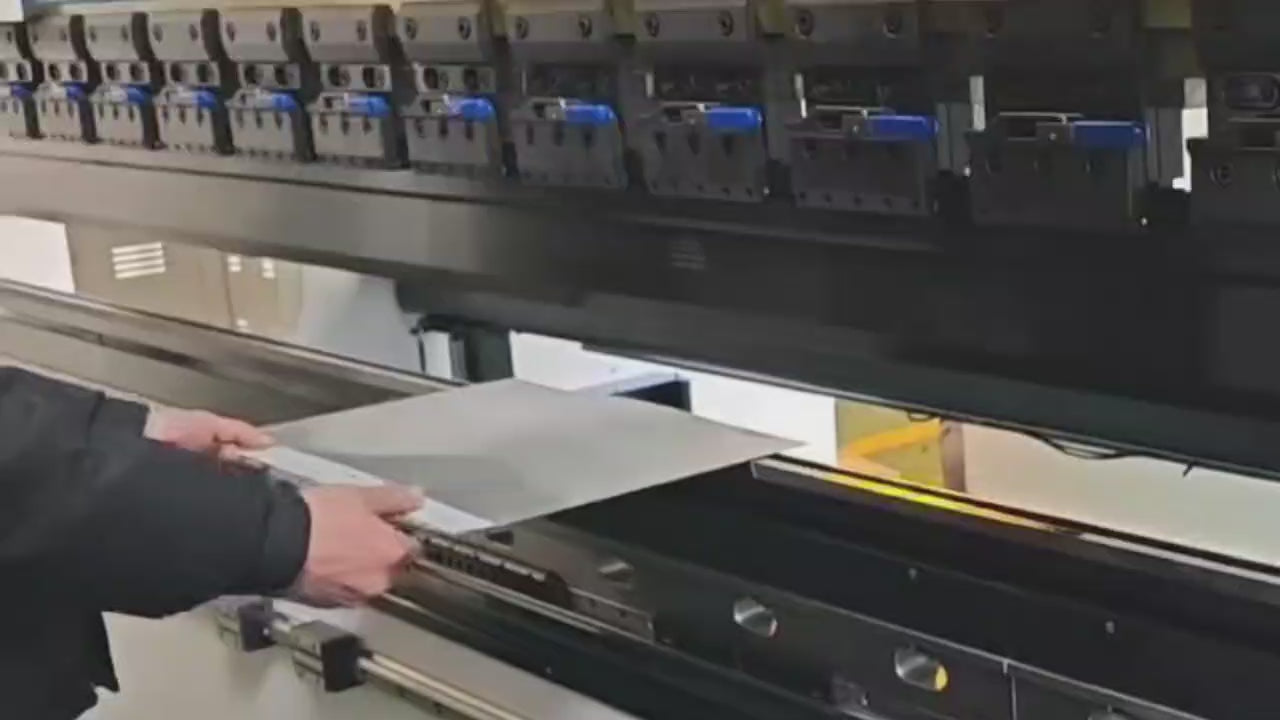

Step 2 – Final Hemming

Reposition the pre-bent sheet metal into the hemming section of the lower die.

Apply controlled pressure to flatten the folded edge and create a clean, finished hem.

Bending & Hemming Applications

Sheet Metal Hemming
Acute-Angle Bending
Edge Folding
Flattened Hem Formation
Automotive Panel Fabrication
Electrical Enclosure Manufacturing
Cabinet Fabrication
HVAC Ductwork
Custom Metal Components
General Sheet Metal Production

Compatible Materials

Mild Steel
Stainless Steel
Aluminum
Galvanized Steel
Sheet Metal Alloys

Material compatibility and maximum bending thickness depend on material properties, press brake capacity, and tooling limitations.

Press Brake Compatibility

R&S CNC Press Brakes
R&S Hydraulic Press Brakes
R&S Servo-Driven Press Brakes
R&S Laser Technology Press Brake Systems

Designed for use with all R&S Laser Technology press brakes.

Industry Applications

General Metal Fabrication
Automotive Manufacturing
Electrical Enclosures
Cabinet Manufacturing
HVAC Manufacturing
Architectural Metalwork
Industrial Equipment Manufacturing
Custom Sheet Metal Fabrication
Precision Metalworking
Production Fabrication Shops

Benefits

Precision Acute-Angle Bending
Clean, Professional Hemmed Edges
Consistent Bending Results
Two-Stage Bending & Hemming Capability
Reduced Tooling Changeovers
Improved Fabrication Efficiency
Durable Industrial Design
Compatible with R&S Press Brakes
Full 5FT Working Length
Professional Sheet Metal Finishing

Standard Tooling Included
