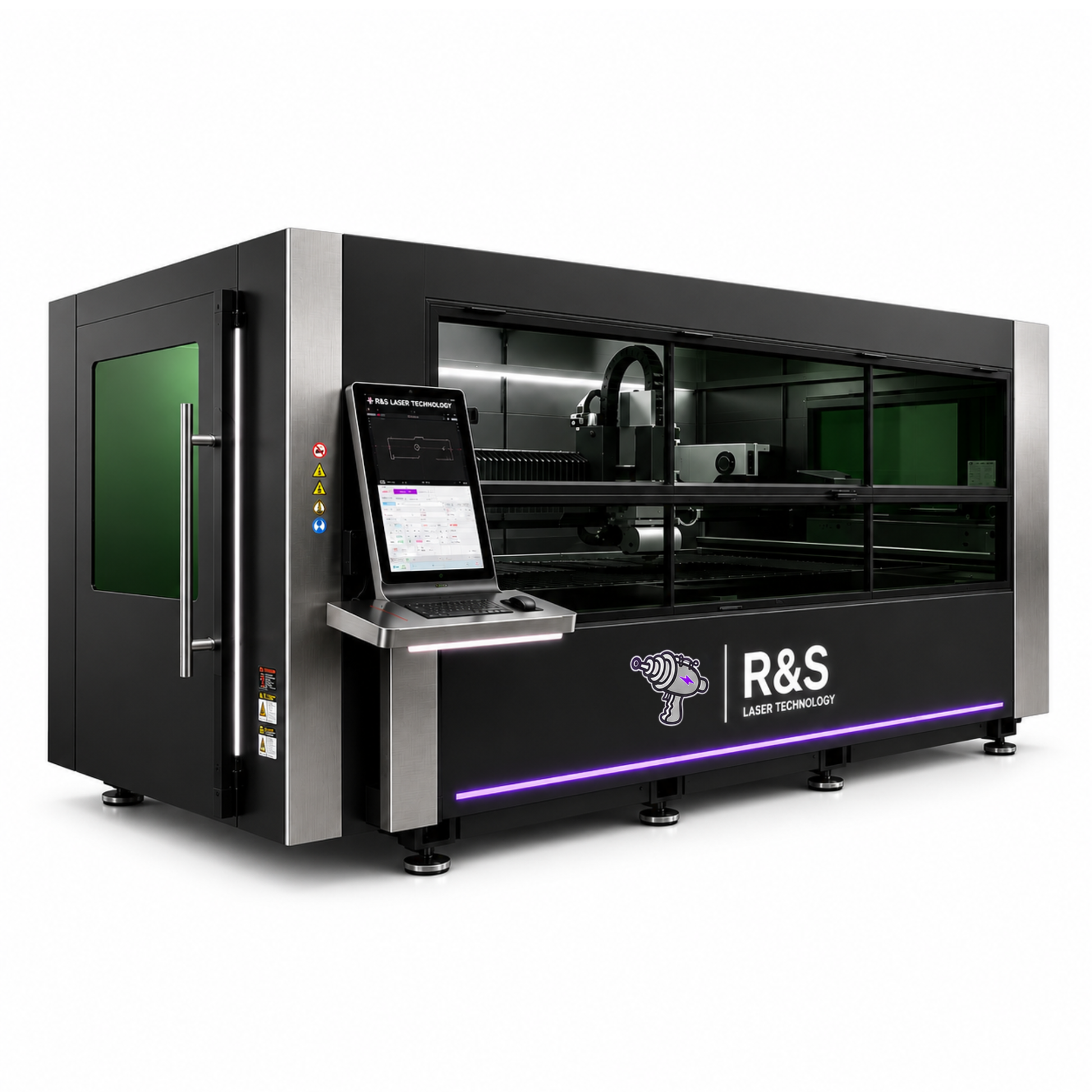

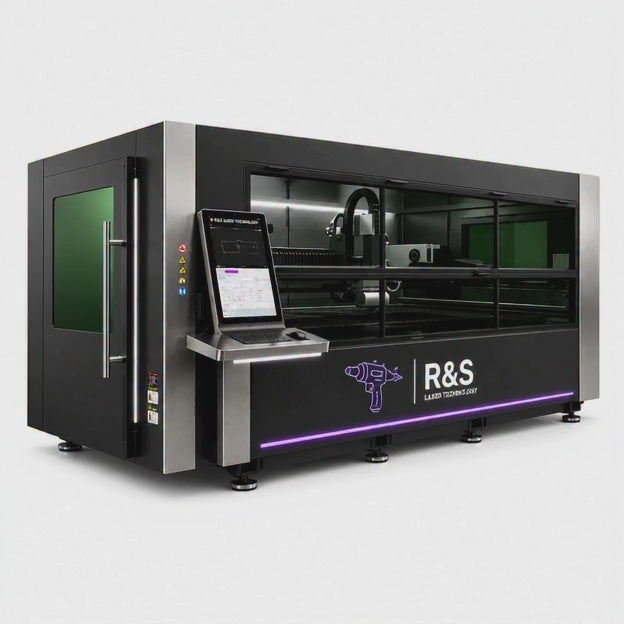

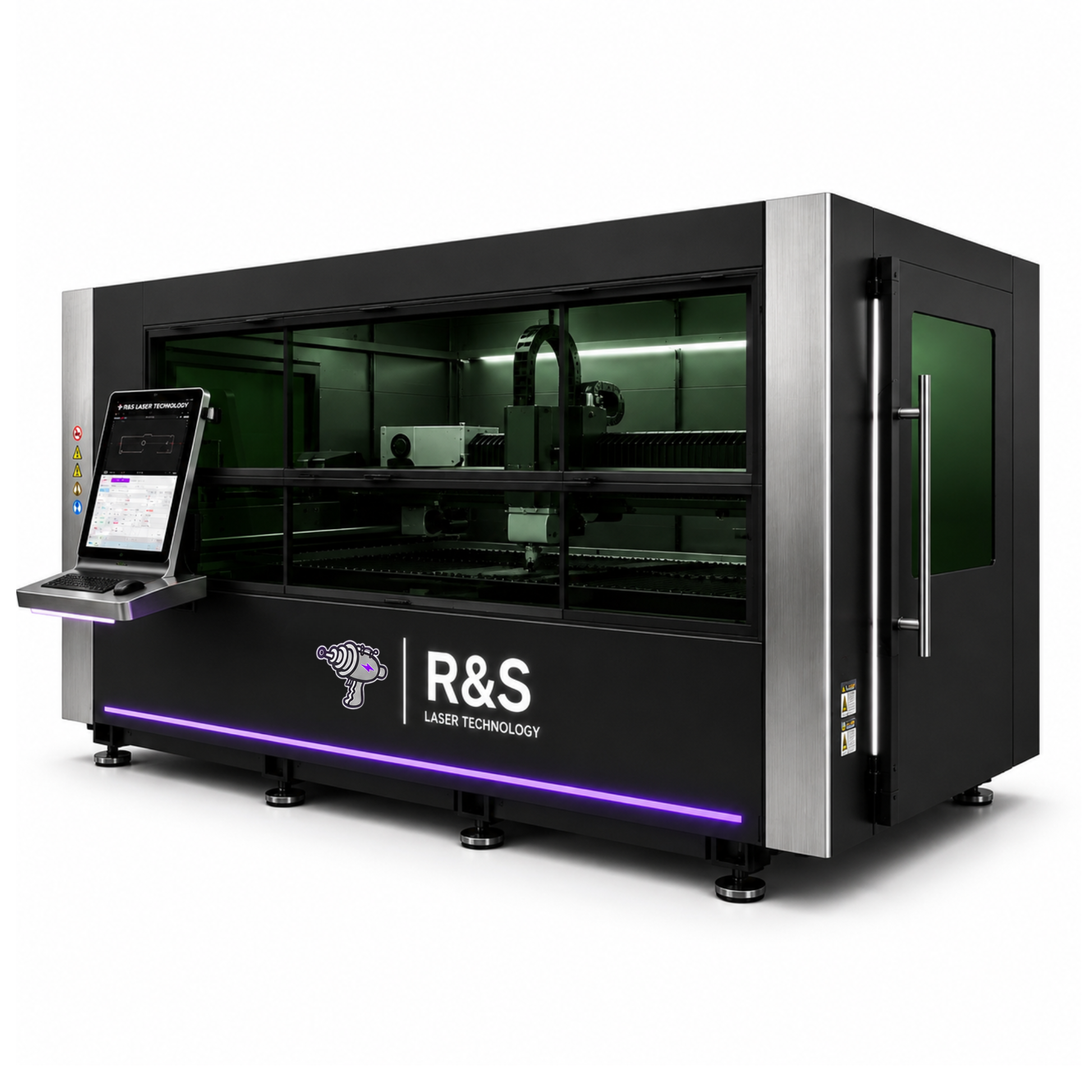

R&S Pro Series 2.0 – 3000W Fully Enclosed Fiber Laser Cutting System

R&S Pro Series 2.0 — 3000W Fully Enclosed Fiber Laser (5’ × 10’) | 3-Phase

⚙️ Fully Enclosed Precision with Industrial Safety

The R&S Pro Series 2.0 3000W Fully Enclosed Fiber Laser System delivers professional-grade cutting performance in a compact, highly efficient, fully enclosed design. Built on the same industrial Pro 2.0 platform as the 6000W model, this system provides exceptional precision, stability, and safety for fabrication shops, automotive builders, HVAC contractors, metal art shops, and small-to-mid-size manufacturing operations. The sealed enclosure keeps fumes, debris, and sparks contained, improving cleanliness, extraction efficiency, and operator comfort while maintaining full production capability.

📐 Cutting Area & Performance

• Platform Size: 5’ × 10’ industrial cutting platform

• Laser Power: 3000W MAX Photonics fiber laser

• Cutting Capacity (production estimates):

– Carbon Steel: 8–12 mm

– Stainless Steel: 6–8 mm

– Aluminum: 4–6 mm

– Brass: 3–4 mm

– Copper: 2–3 mm

• Performance varies based on assist gas type and purity

⚡ Power & Electrical

• Power Requirement: 3-phase power required

• Amperage: 120 AMPS without compressor / 185 AMPS with compressor

🧠 Motion & Control

• Servo Motors: Yaskawa-grade high-speed servo motors

• Motion Components: Precision linear guides

• Gantry: Aluminum/steel hybrid beam for smooth, quiet motion

• Controller: CypCut FSCUT system with smart pierce, fly-cut mode, corner control, nesting optimizer, and 21.5” touchscreen interface

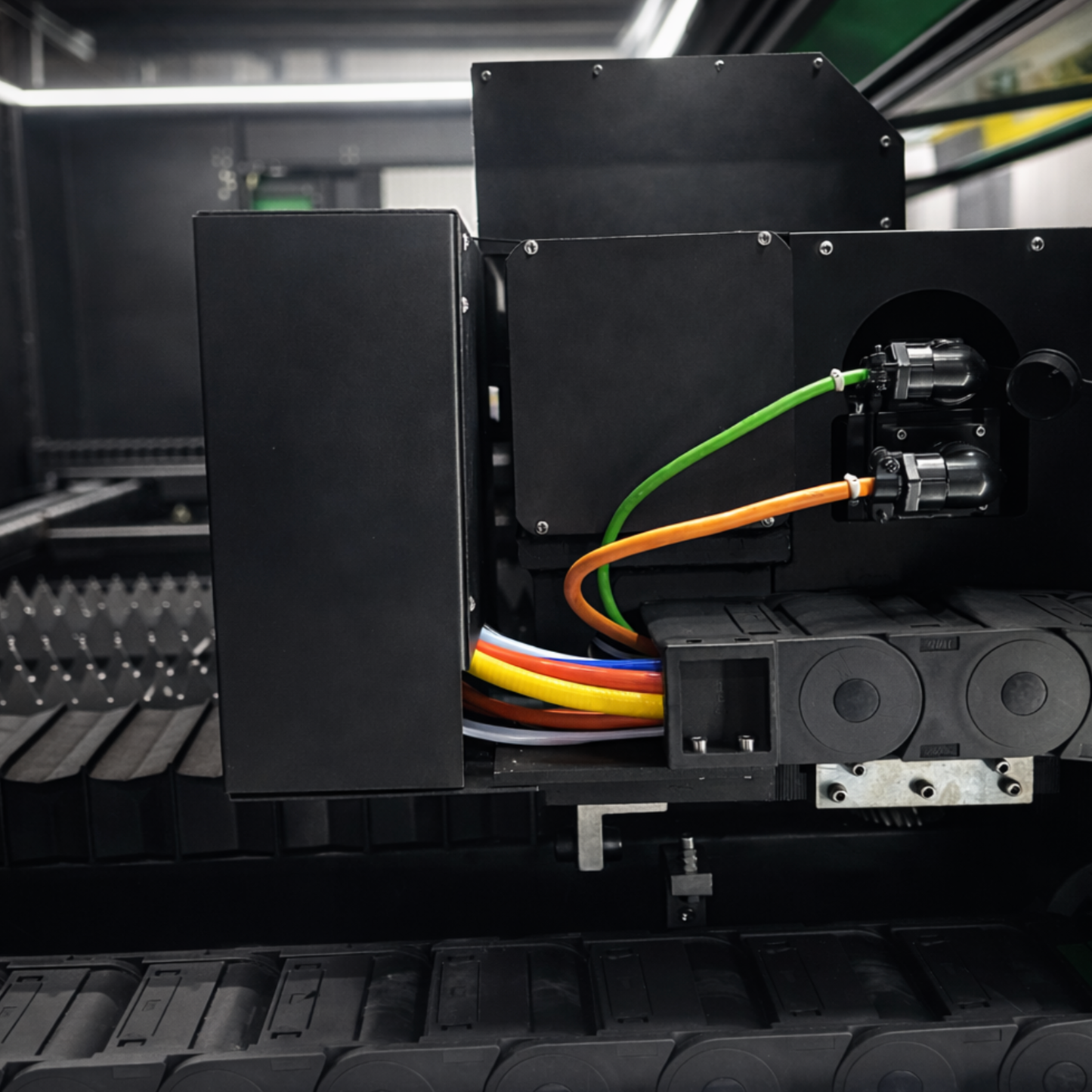

🎯 Laser Head

• Laser Head Options: Raytools or BOCI autofocus

• High-speed autofocus travel

• Ceramic crash protection

• Precision lens assembly

• Stable cutting on stainless steel, carbon steel, aluminum, brass

🧊 Cooling & Airflow

• Cooling System: S&A or Hanli professional industrial water chiller options

• Airflow: Optimized dust extraction for enclosed cutting

• Compressor Compatibility: Compatible with 16-bar compressor and refrigerated dryer

🏗️ Build Quality & Safety

• Frame: Reinforced Pro Series 2.0 industrial chassis

• Enclosure: Fully sealed cutting cabin

• Safety Door: Full-width upward-opening door

• Viewing Window: Green-tinted laser-safe glass

• Lighting: LED lighting across entire cutting area

• Design Origin: Designed in California / Manufactured overseas

🧰 Best For

• HVAC shops

• Custom automotive and motorsports

• Decorative metal fabrication

• Central fabrication shops

• Precision parts manufacturing

• Small-to-medium job shops

🏆 Why Shops Choose the 3000W Pro Series 2.0

• Same industrial build as the 6000W model

• More affordable power level for most production needs

• Fully enclosed safety system

• Ideal for shops not cutting thick plate

• U.S. support and U.S. warranty

• Faster delivery than major-brand imports

🚚 Delivery & Warranty

• Delivery Time: 40–45 days

• Warranty: 2-year parts warranty including laser source and laser head
