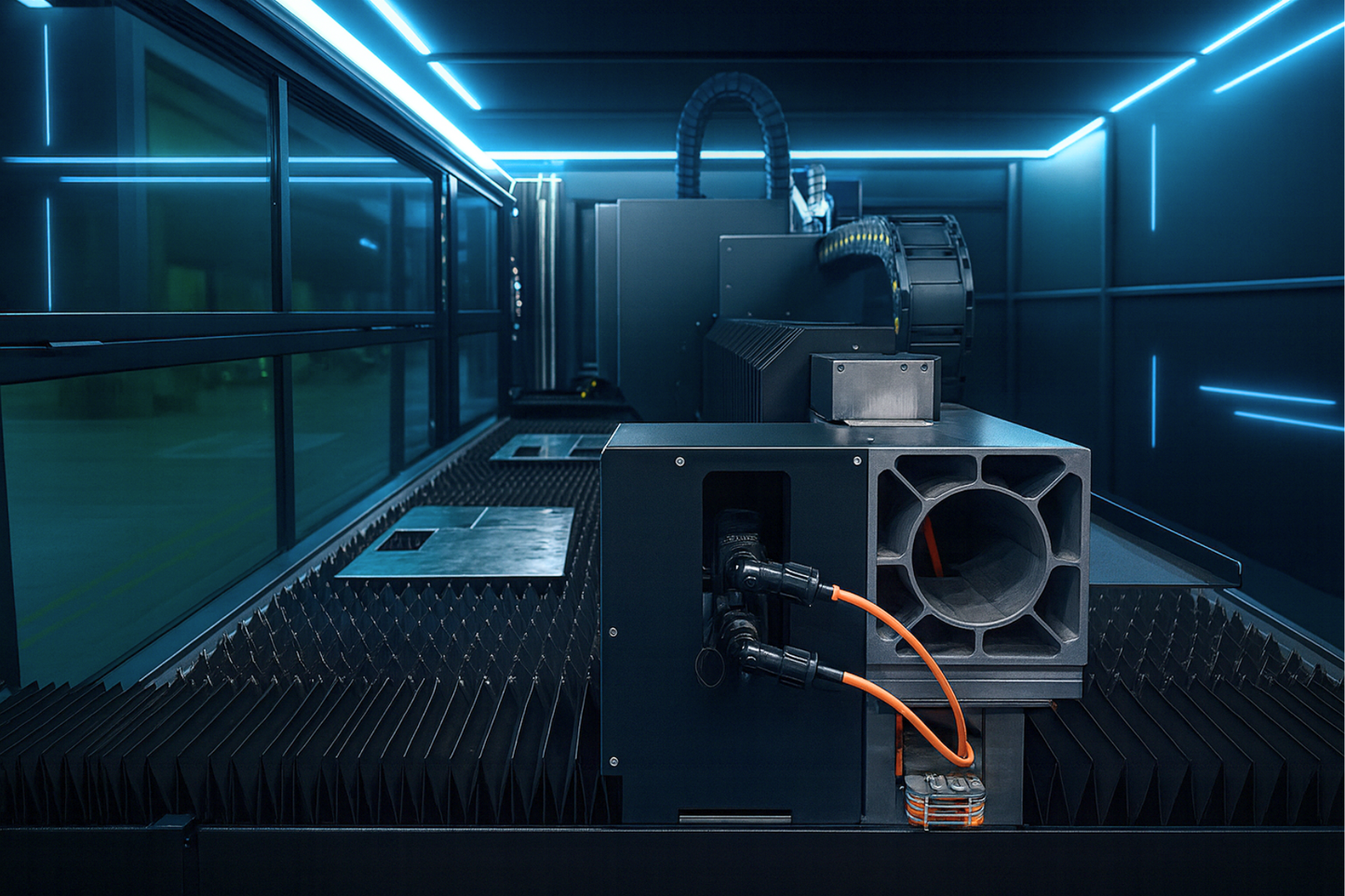

R&S Pro Series 2.0 – 6000W Fully Enclosed Fiber Laser Cutting System

R&S Pro Series 2.0 — 6000W Fully Enclosed Fiber Laser (5’ × 10’) | 3-Phase

⚙️ Maximum Power with Full Enclosure Safety

The R&S Pro Series 2.0 6000W Fully Enclosed Fiber Laser System is engineered for high-performance fabrication shops that require maximum speed, precision, and operator protection. Designed in California and built with industrial-grade components, this system delivers elite cutting performance inside a fully sealed, operator-safe enclosure paired with an ultra-rigid Pro 2.0 frame built for continuous 24/7 production. Inspired by top-tier global fiber laser platforms and modernized with R&S modular construction and U.S.-supported architecture, the Pro 2.0 offers unmatched accessibility, cutting power, and contamination control.

📐 Cutting Area & Performance

• Platform Size: 5’ × 10’ industrial cutting platform

• Laser Power: 6000W MAX Photonics fiber laser

• Cutting Capacity (production-grade estimates):

– Carbon Steel: 18–22 mm

– Stainless Steel: 12–16 mm

– Aluminum: 10–12 mm

– Brass: 6–8 mm

– Copper: 4–6 mm

• Actual performance depends on assist gas purity and nozzle configuration

⚡ Power & Electrical

• Power Requirement: 3-phase power required

• Amperage: 150 AMPS without compressor / 225 AMPS with compressor

🧠 Motion & Control

• Servo Motors: Yaskawa-grade servo motors

• Motion Components: Precision linear guides

• Gantry: High-acceleration aluminum-steel hybrid beam

• Controller: CypCut FSCUT controller with smart pierce, corner optimization, fly-cut, micro-joint, nesting, smooth edge technology, and full diagnostic control

• Interface: 21.5” touchscreen display

🎯 Laser Head

• Laser Head Options: Raytools or BOCI autofocus

• High-precision autofocus for multi-material cutting

• Ceramic crash-protection module

• Integrated gas and height-control system

• Optional BT240S, BT210, or BOCI equivalents

🧊 Cooling & Airflow

• Cooling System: Industrial-grade cooling with high-efficiency extraction pathways

• Airflow: Dual-zone ventilation designed for enclosed systems

• Compressor Compatibility: Compatible with 16-bar compressor and dryer setup

🏗️ Build Quality & Safety

• Frame: Ultra-rigid Pro Series 2.0 reinforced welded chassis

• Base: High-mass construction for vibration elimination

• Enclosure: Fully sealed laser cabin

• Safety Door: Full-length front-lifting door

• Viewing Panels: Green-tinted laser-safe glass

• Lighting: LED interior illumination

• Noise Reduction: Thermally stable, sound-reducing enclosure

🧰 Applications

• Industrial fabrication

• Contract manufacturing

• Automotive and motorsports

• Structural metal production

• Metal art and production shops

• High-volume commercial cutting

🏆 Why Choose the R&S Pro Series 2.0

• Built specifically for American shops running 24/7

• U.S. support, training, and warranty

• Faster delivery than major international brands

• Modular, service-friendly design

• Industry-leading price-to-performance ratio

🚚 Delivery & Warranty

• Delivery Time: 40–45 days

• Warranty: 2-year parts warranty including laser source and laser head
