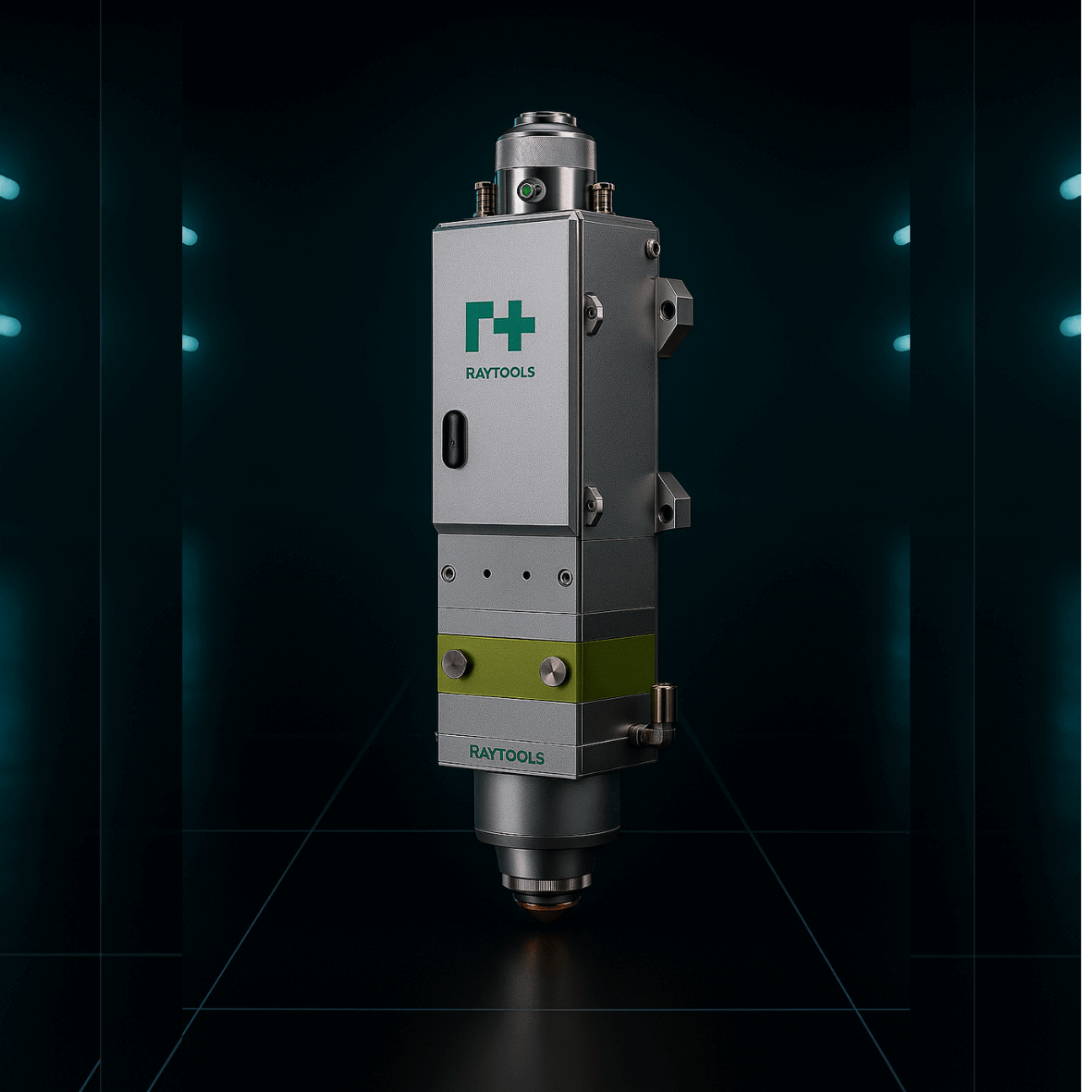

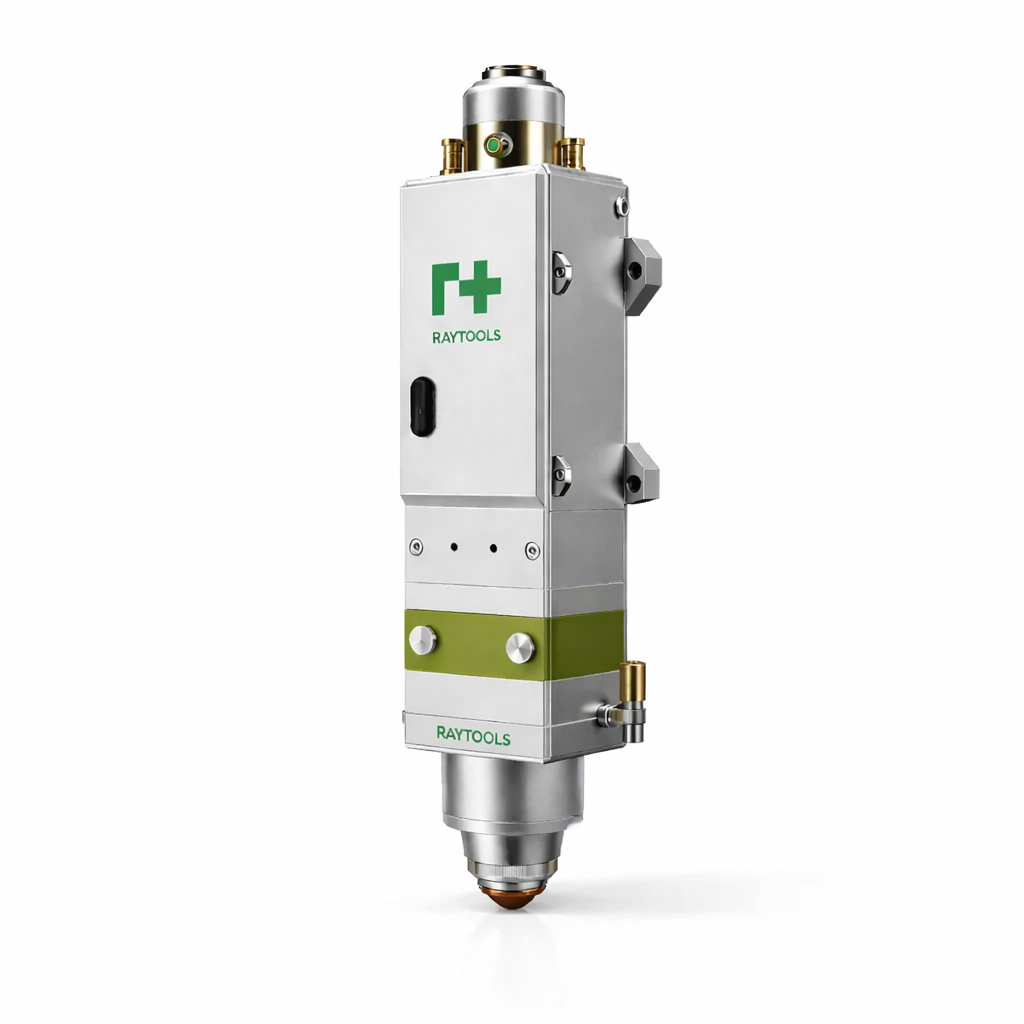

Raytools BM110 Autofocus Laser Head

R&S Raytools BM110 Autofocus Laser Head — 2000W–3000W Fiber Systems

⚙️ Precision Autofocus Cutting for Mid-Power Fiber Lasers

The Raytools BM110 Autofocus Laser Head is a high-precision, industrial-grade cutting head engineered for fiber laser systems operating in the 2000W–3000W range. Designed to improve cutting speed, edge quality, and overall processing efficiency, the BM110 features automatic focus adjustment that dynamically adapts to material thickness and type. Widely used across fabrication shops and production environments, it delivers reliable, consistent performance on stainless steel, carbon steel, aluminum, brass, and galvanized materials. Compatible with all major fiber laser sources and CNC controllers, the BM110 is a proven, go-to solution for flatbed fiber laser cutting systems.

📐 Cutting Performance & Capability

• Supported Laser Power: Up to 3000W continuous

• Autofocus Range: ±10 mm electronically adjustable

• Application Type: Flatbed fiber laser cutting

• Materials: Carbon steel, stainless steel, aluminum, brass, galvanized steel

• Designed for consistent edge quality and stable pierce performance

⚡ Optics & Interface

• Focus Lens Focal Length: 125 mm (typical)

• Collimation Lens Focal Length: 100 mm

• Wavelength Range: 1030–1090 nm

• Fiber Interface: Standard QBH (compatible with most fiber laser generators)

🧠 Autofocus & Protection

• Automatic focus adjustment based on material thickness

• Integrated sensor system for optics protection and cutting accuracy

• Upper and lower dust-proof protective windows

• Easy-access protective lens drawer for reduced maintenance time

🧊 Cooling & Stability

• Cooling Method: Water-cooled with auxiliary air cooling

• Optimized thermal design for prolonged, stable cutting operation

• Maintains lens integrity under continuous production use

🏗️ Build Quality & Design

• Construction: Compact, lightweight industrial design

• Weight: ~1.2–1.5 kg

• Designed for gantry-style fiber laser cutting systems

• Stable collimation and focusing lens assembly

🧰 Applications

• 2000W–3000W fiber laser cutting machines

• Sheet metal fabrication

• Stainless steel and aluminum processing

• Production and job-shop environments

• High-speed flatbed cutting systems

🏆 Why Choose the Raytools BM110

• Proven industry-standard autofocus cutting head

• Improves speed, consistency, and cut quality

• Low maintenance with quick lens access

• Broad compatibility with fiber sources and controllers

• Reliable performance for daily industrial use

🚚 Delivery & Warranty

• Delivery Time: 7–14 days

• Warranty: 1-year parts warranty
