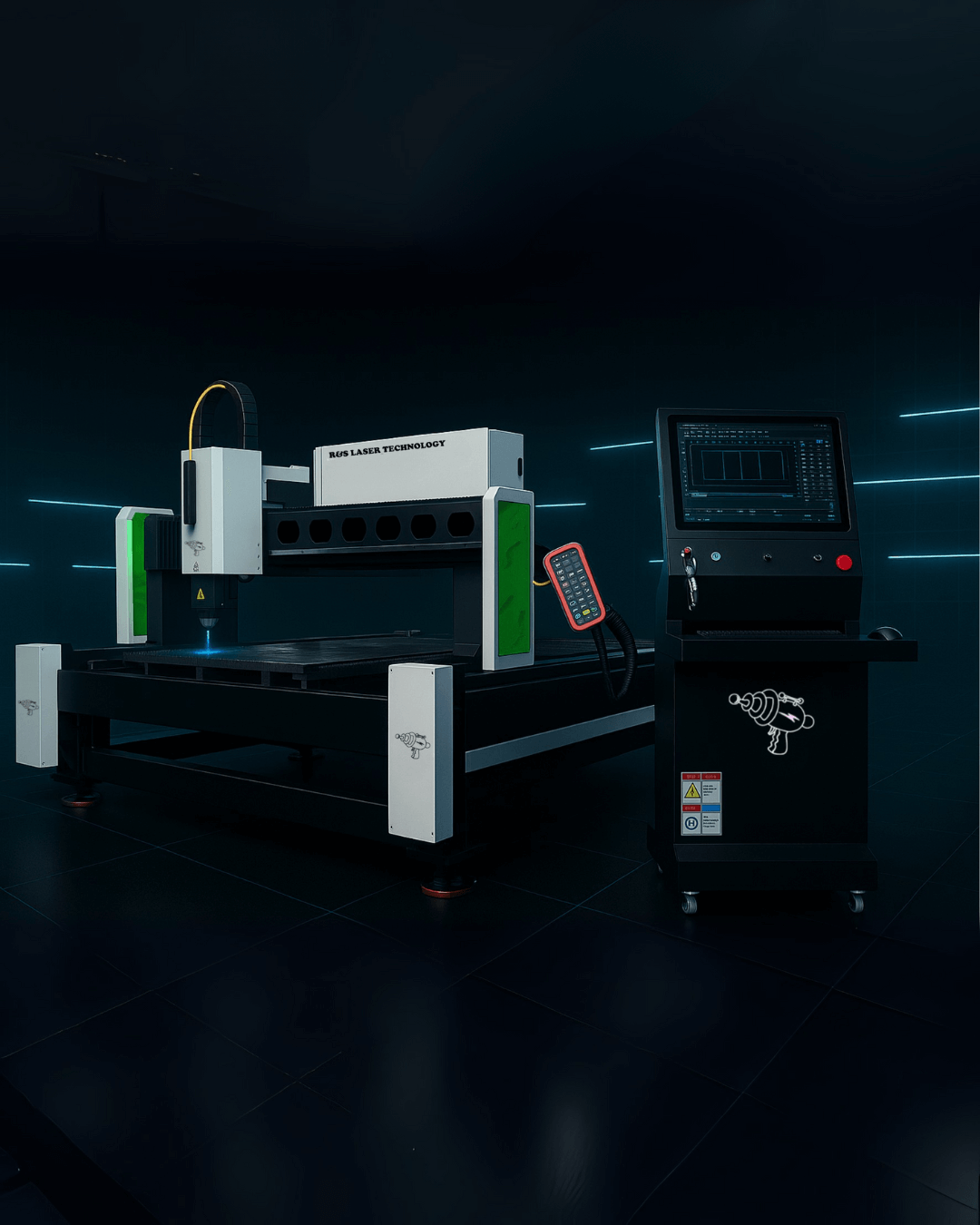

RS 12x6' 12KW Fiber Laser Cutting Table with Shielded Sides
RS 12x6' 12KW Fiber Laser Cutting Table with Shielded Sides
Regular price
$99,300.00 USD
Regular price
Sale price
$99,300.00 USD
Unit price
/
per
Couldn't load pickup availability
Extreme Power | Industrial Precision | Open-Top with Laser Shielding
The RS 12kW Fiber Laser Table is built for high-speed, high-power cutting of thick metals with industry-leading precision. Designed with a 12' x 6' work area, premium motion components, and laser-shielded side panels, this system provides an open-top format for overhead crane access while protecting operators from beam exposure during high-power operation.
Engineered for continuous use in demanding fabrication environments, this machine is perfect for stainless steel, carbon steel, aluminum, and more—backed by Yaskawa servos, rack-and-pinion drive, and a robust steel frame.
Specifications Overview
| Category | Specification |
|---|---|
| Model | RS-ProShield 12kW-12x6 |
| Working Area | 3660mm x 1830mm (12 ft x 6 ft) |
| Laser Power | 12,000W (12kW) Fiber Laser (MAX, IPG, or Raycus) |
| Cutting Speed (1mm Steel) | Up to 15 m/min |
| Positioning Accuracy | ±0.03 mm |
| Repeat Accuracy | ±0.02 mm |
| Max Acceleration | 1.5G |
| Drive System | Dual-side Rack & Pinion with Yaskawa Servos |
| Motion Components | HIWIN Linear Rails (Taiwan) |

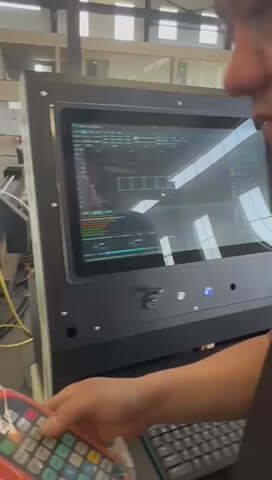

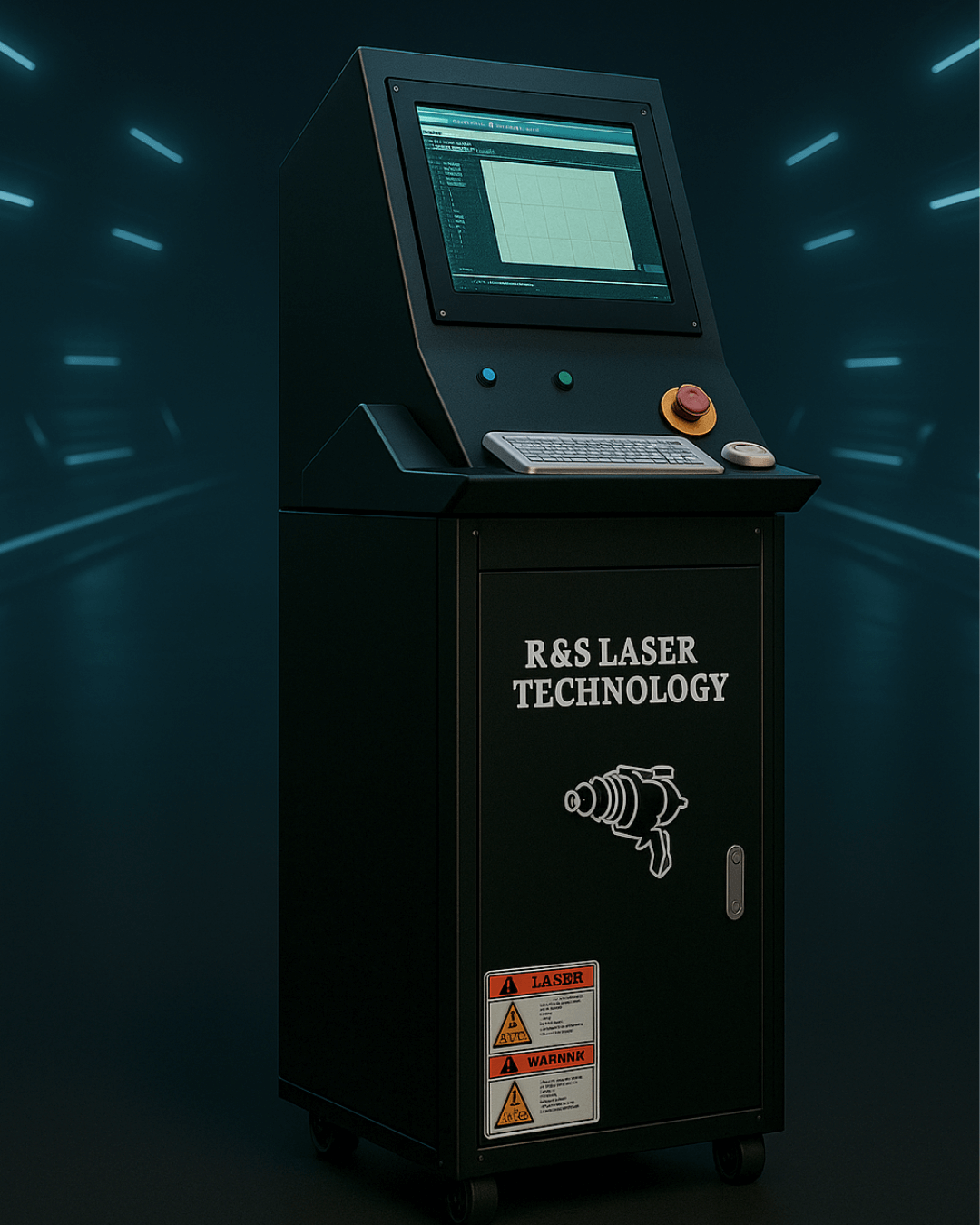

| Controller | CypCut FSCUT8000 or equivalent |

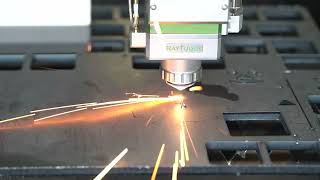

| Laser Head | Raytools or WSX 12kW-rated Autofocus |
| Cooling System | Hanli 12kW Industrial Water Chiller |
| Table Type | Static or Dual Shuttle Table (optional) |
| Side Shielding | Open-top with laser-protective side panels matching gantry height |
| Assist Gases | Oxygen, Nitrogen, Compressed Air |
| Power Requirement | 380V / 3-Phase / 50–60Hz |
| Supported Materials | Steel, stainless, aluminum, brass, copper |
| Supported File Formats | DX |
| Machine Dimensions | Approx. 6300mm x 2300mm x 2000mm |
| Net Weight | ~8500–9500 kg |
| Warranty | 2 Years Parts & Labor |
| Design Origin | Designed in California / Manufactured Overseas |
